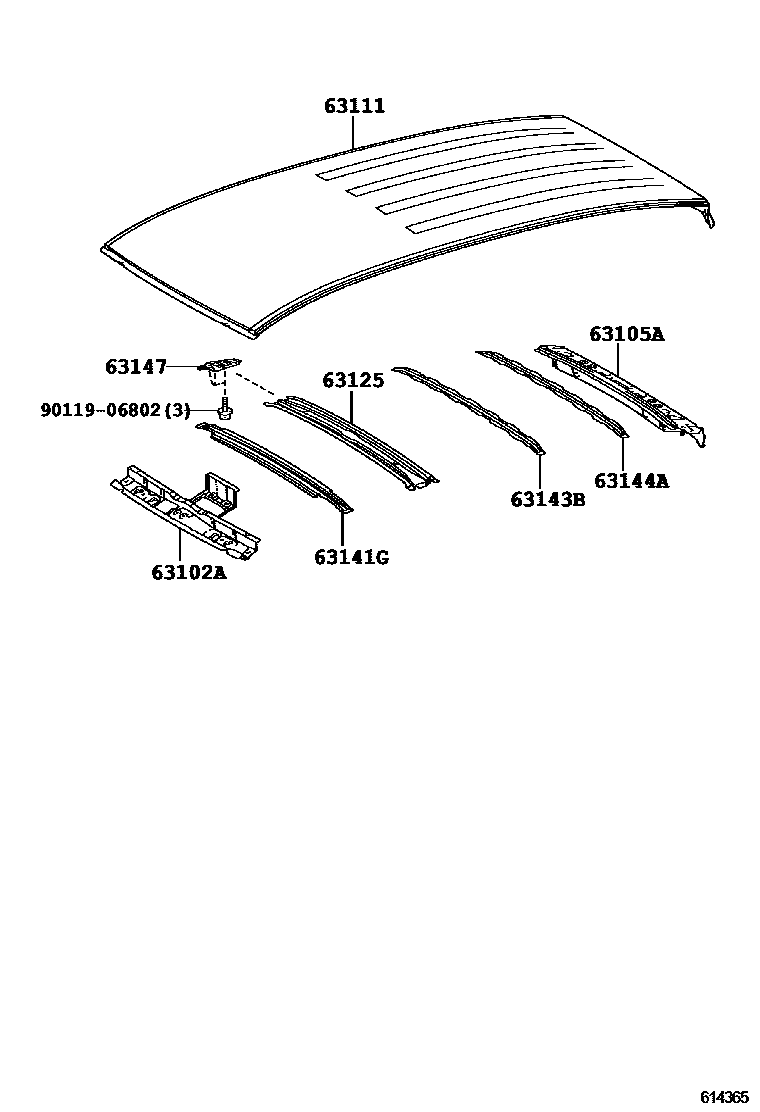

Toyota SPADE — ROOF PANEL & BACK WINDOW GLASS

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-52210i201507

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-52180i201507

63111PANEL, ROOF

main63111-52430i201507

63125REINFORCEMENT, ROOF PANEL, NO.2

main63103-52130i201507

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63142-52100i201507

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-52160i201507

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63145-52080i201507

63147BRACKET, ROOF PANEL REINFORCEMENT

main63147-52110i201507

9011906802

main90119-06802

9 parts on this diagram · 1 diagram in section

ROOF PANEL & BACK WINDOW GLASS for Toyota SPADE

This section contains 9 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota SPADE. Key components include: PANEL SUB-ASSY, WINDSHIELD HEADER, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, REINFORCEMENT, ROOF PANEL, NO.2, REINFORCEMENT, ROOF PANEL, NO.1.
