Toyota SPADE — FLOOR PAN & LOWER BACK PANEL

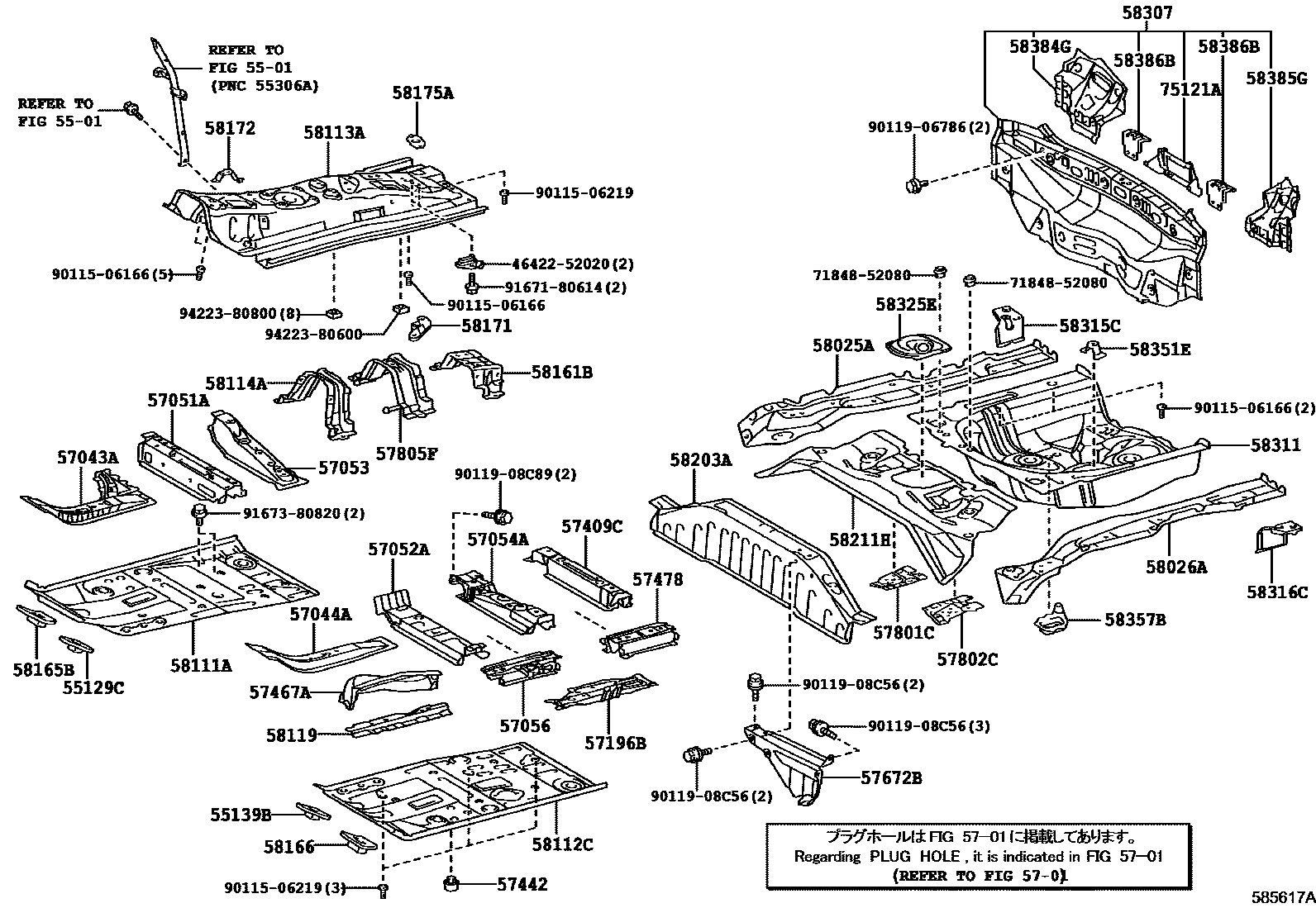

Parts diagram

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55129CCOVER, DASH PANEL HOLE

main55129-52051i201507

55139BCOVER, DASH PANEL HOLE, LH

main55139-52021i201507

5701HOLE PLUG

→ Go to FIG 57-01

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-52023i201507

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-52052i201507

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-52040i201507

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-52030i201507

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-52010i201507

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-52010i201507-201511

main57054-52011i201512

57056REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.6

main57056-52010i201507

57196BREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-52020i201507

57409CMEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57409-52030i201507

57442PLUG, STEP PANEL HOLE

main57442-28030i201507

57467ABRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH

main57467-52030i201507

57478GUSSET, REAR SEAT, LH

main57478-52020i201507-201511

main57478-52021i201512

57672BBRACE, REAR FLOOR NO.1 CROSSMEMBER, LH

main57672-52150i201507

57801CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 RH

main57801-52130i201507

57802CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 LH

main57802-52130i201507

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-52131i201507

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-52060i201507

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-52090i201507

58111APAN, FRONT FLOOR, RH

main58111-52281i201507

58112CPAN, FRONT FLOOR, LH

main58112-52923i201507

58113APANEL, FRONT FLOOR, CENTER

main58113-52924i201507

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-52071i201507

58119PLATE, FRONT FLOOR SIDE, FRONT

main58119-52010i201507

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-52070i201507

58165BCOVER, FRONT FLOOR, RH

main58165-52011i201507

58166COVER, FRONT FLOOR, LH

main58166-52011i201507

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-52090i201507

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-52020i201507

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-52020i201507

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-52090i201507

58211HPAN, CENTER FLOOR

main58211-52271i201507

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-52610i201507-201508

main58307-52611i201508

58311PAN, REAR FLOOR

main58311-52110i201507

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-52160i201507

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-52180i201507

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-52050i201507

58351EBRACKET, SPARE WHEEL CLAMP

main58351-52070i201507

58357BBRACKET, ACTUATOR COVER, NO.3 RH

main58357-52031i201507

58384GGUSSET, LOWER BACK, UPPER RH

main58384-52170i201507

58385GGUSSET, LOWER BACK, UPPER LH

main58385-52130i201507

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-74010i201507

75121ABRACKET, REAR LICENSE PLATE

main75121-52110i201507

4642252020CAP, PARKING BRAKE CABLE, CASING

main46422-52020

7184852080ORNAMENT, FRONT SEAT BRACKET, LH

main71848-52080

9011506166

main90115-06166

9011506219

main90115-06219

9011906786

main90119-06786

9011908C56

main90119-08C56

9011908C89

main90119-08C89

9167180614

main91671-80614

9167380820

main91673-80820

9422380600

main94223-80600

9422380800

main94223-80800

57 parts on this diagram · 1 diagram in section

FLOOR PAN & LOWER BACK PANEL for Toyota SPADE

This section contains 57 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota SPADE. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, COVER, DASH PANEL HOLE, COVER, DASH PANEL HOLE, LH, HOLE PLUG, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH.

Toyota SPADE FLOOR PAN & LOWER BACK PANEL — Parts Diagram | EPC Data
