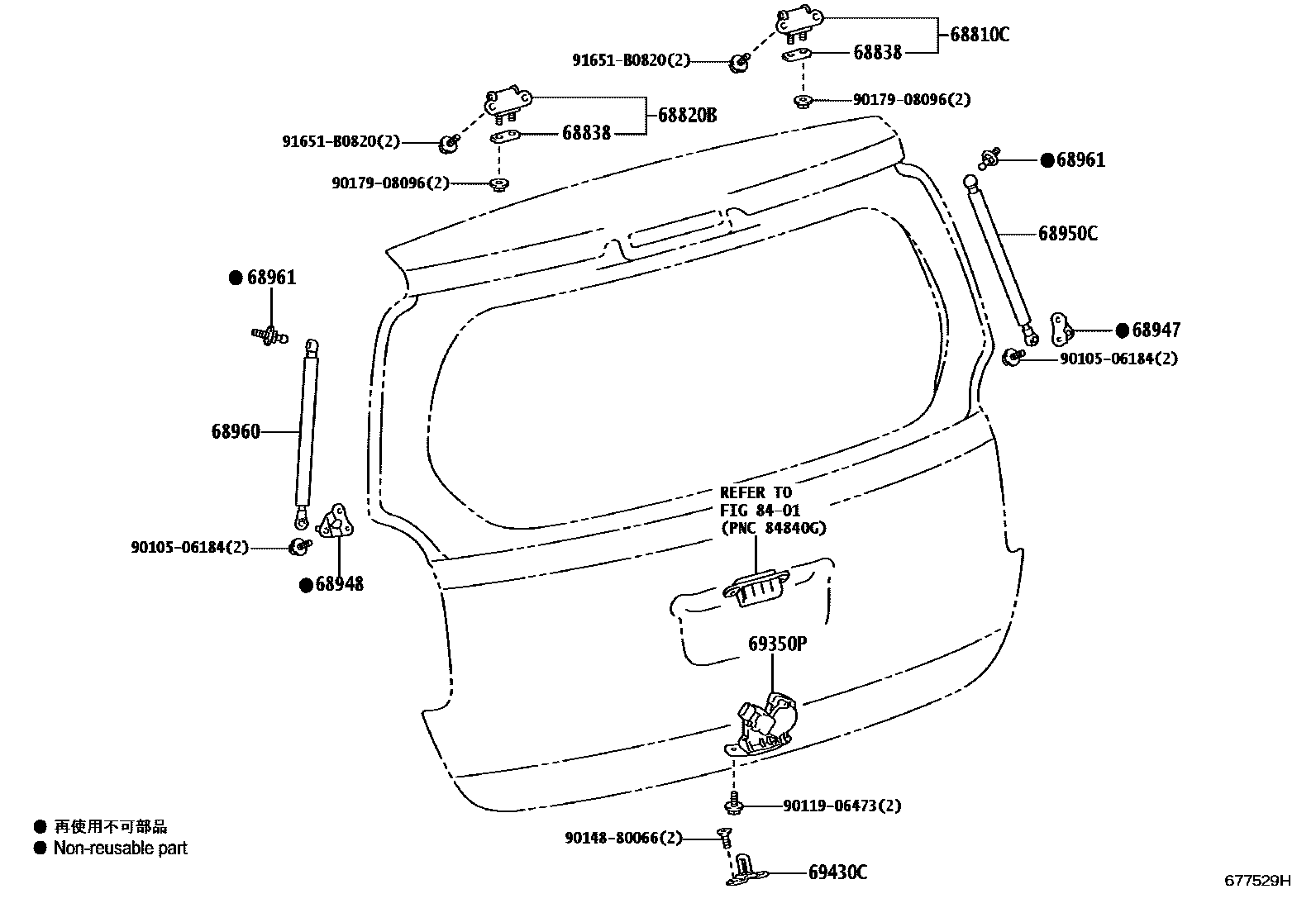

Toyota SPADE — BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
PAD T=1.0
68820BHINGE ASSY, BACK DOOR, LH
PAD T=1.0
68838PAD, BACK DOOR HINGE, NO.1
T=1.0
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69430CSTRIKER ASSY, BACK DOOR LOCK
8401SWITCH & RELAY & COMPUTER
9010506184
main90105-06184
9011906473
main90119-06473
9014880066
main90148-80066
9017908096
main90179-08096
91651B0820
main91651-B0820
16 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota SPADE
This section contains 16 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota SPADE. Key components include: HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, PAD, BACK DOOR HINGE, NO.1, BRACKET, BACK DOOR DAMPER STAY, LOWER RH, BRACKET, BACK DOOR DAMPER STAY, LOWER LH.
