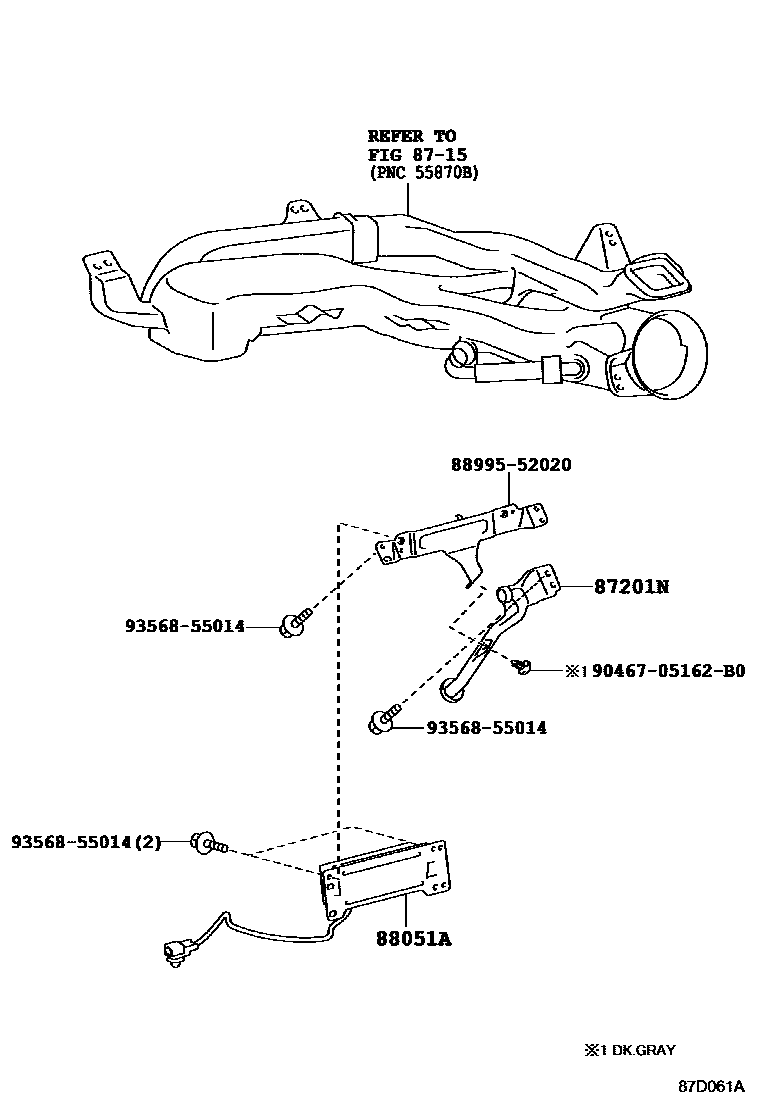

Toyota SPADE — AIR PURIFIER OR ION GENERATOR

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main87201-52210i201507

88051AGENERATOR SUB-ASSY,ION

main88051-52030i201507

8899552020BRACKET,ION GENERATOR, NO.1

main88995-52020

9046705162B0

main90467-05162B0

9356855014

main93568-55014

6 parts on this diagram · 1 diagram in section

AIR PURIFIER OR ION GENERATOR for Toyota SPADE

This section contains 6 genuine Toyota parts for the AIR PURIFIER OR ION GENERATOR system of the Toyota SPADE. Key components include: HEATING & AIR CONDITIONING - CONTROL & AIR DUCT, DUCT SUB-ASSY, AIR, GENERATOR SUB-ASSY,ION, BRACKET,ION GENERATOR, NO.1.
