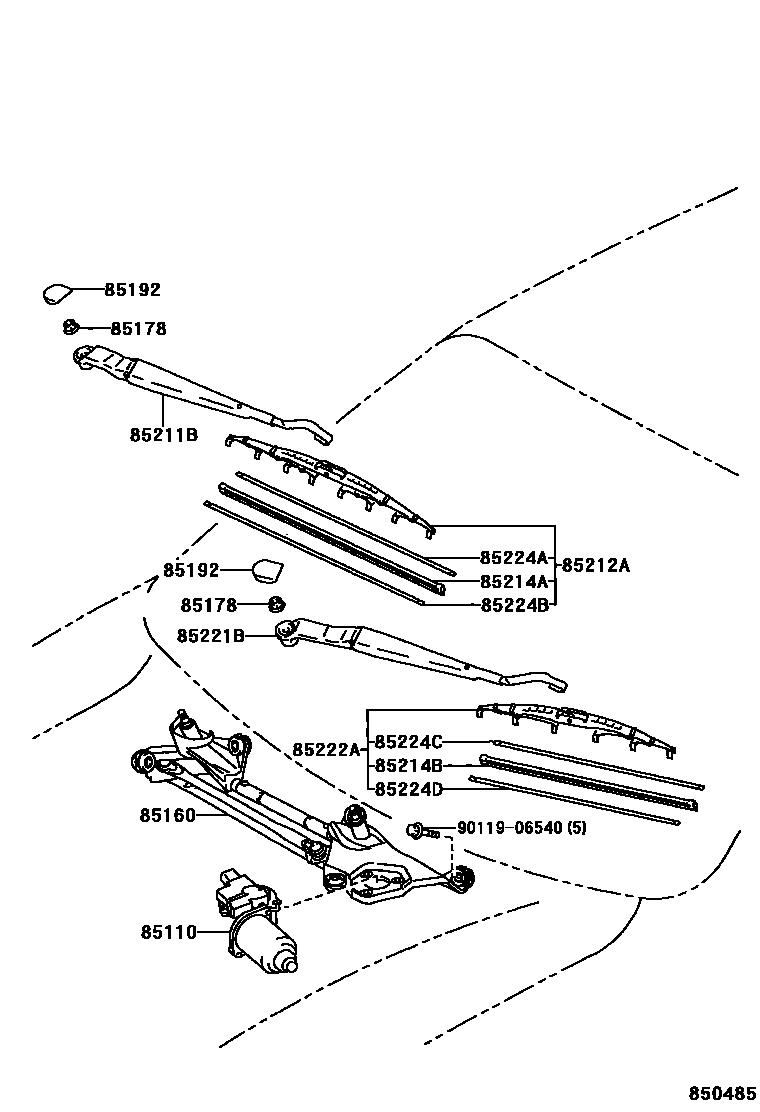

Toyota SPACIO — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-13060iAE111199805

85160LINK ASSY, WINDSHIELD WIPER

main85150-13060iAE111199805

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223iAE111199805

85192COVER, WINDSHIELD WIPER ARM

main85292-13010iAE111199805

85211BARM, FRONT WIPER, RH

main85211-13010iAE111199805

85212ABLADE, FR WIPER, RH

main85212-13010iAE111199809

main85212-44010iAE111199805-199809

85214ARUBBER, WIPER, RH

main85214-44010iAE111199805

85214BRUBBER, WIPER, LH

main85214-20350iAE111199805

85221BARM, FRONT WIPER, LH

main85221-13020iAE111199805

85222ABLADE, FR WIPER, LH

main85222-20390iAE111199805

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-44010iAE111199805

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-44010iAE111199805

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-20310iAE111199805

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-20310iAE111199805

9011906540

main90119-06540

15 parts on this diagram · 1 diagram in section
