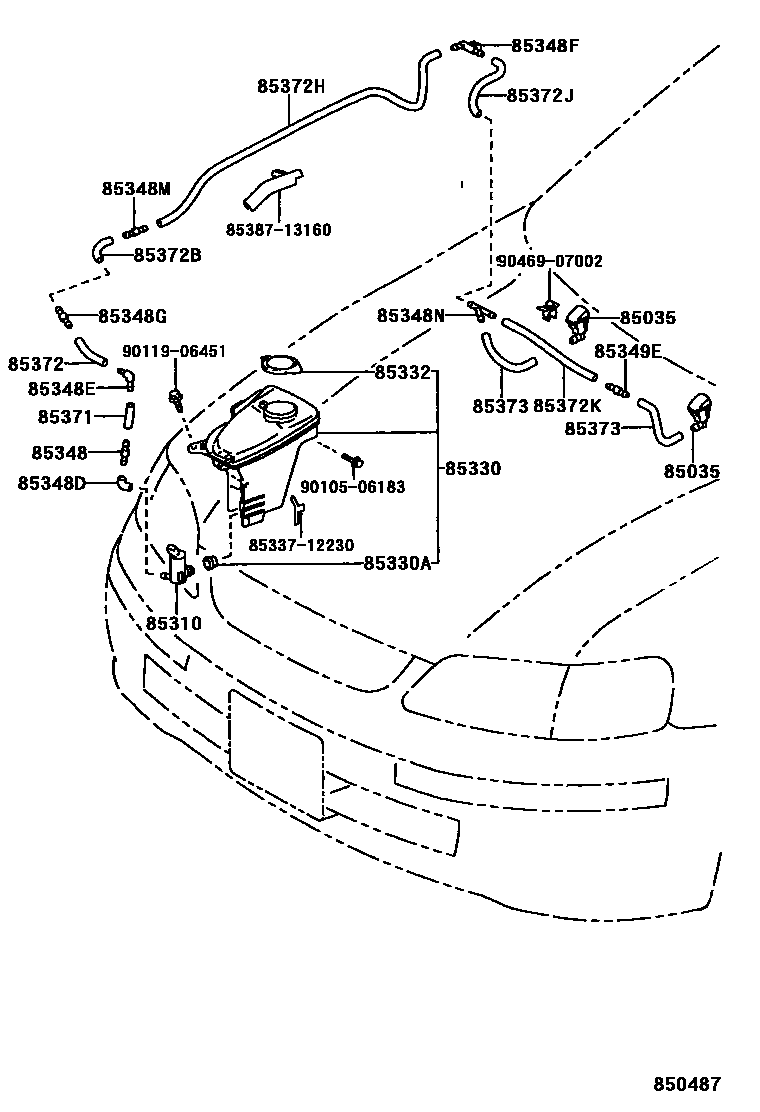

Toyota SPACIO — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85349EJOINT, WINDSHIELD WASHER HOSE, NO.5
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
H=100
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
H=95
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1000(*H,L=40)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1800(*H,L=1360)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1800(*H,L=300)
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
L=1800(*H,L=510)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=170)
8533712230CASE, LEVEL WARNING SWITCH
main85337-12230
8538713160CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-13160
9010506183
main90105-06183
9011906451
main90119-06451
9046907002
main90469-07002
25 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota SPACIO
This section contains 25 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SPACIO. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
