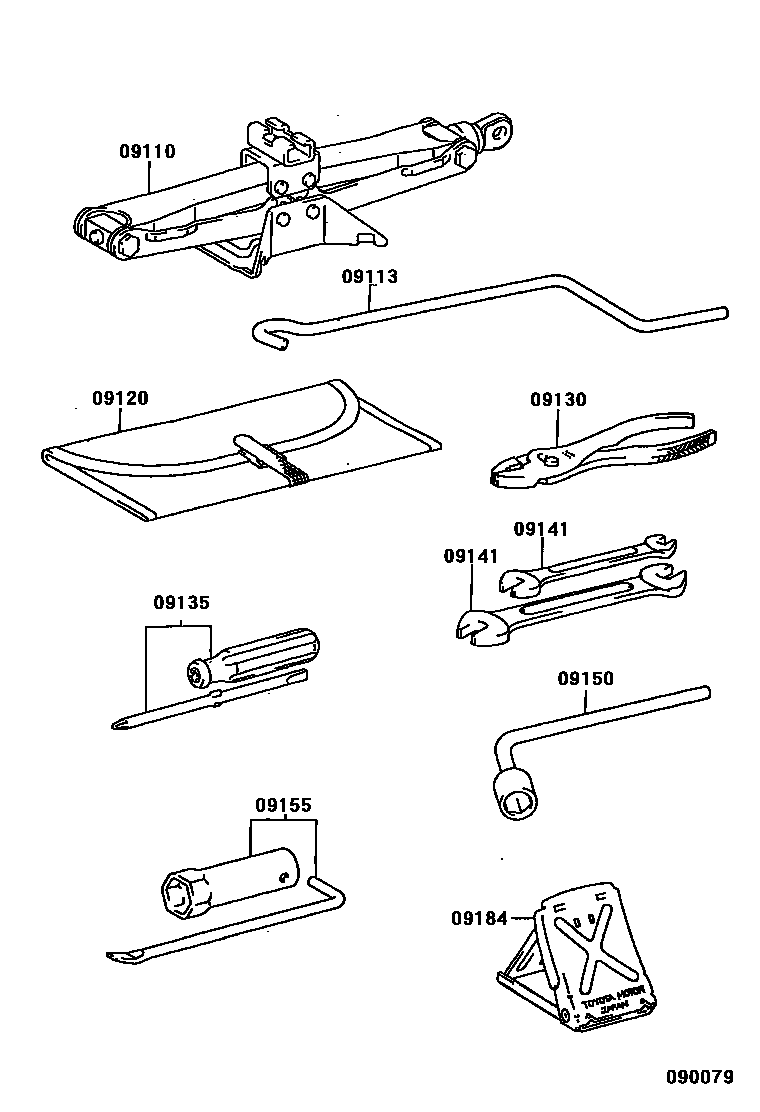

Toyota SPACIO — STANDARD TOOL

09110JACK ASSY

main09111-20110i199805

09113HANDLE, JACK

main09113-13040i199805

09120BAG, TOOL

main09120-16030i199805

09130PLIERS

main99913-11500i199805

09135DRIVER, SCREW

main99915-10700i199805

09141SPANNER

main99914-10810i199805

8 X 10

main99914-11214i199805

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010i199805

09155WRENCH, SPARK PLUG

main09155-74010i199805

09184STOPPER, WHEEL

main09184-00010i199805

9 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota SPACIO

This section contains 9 genuine Toyota parts for the STANDARD TOOL system of the Toyota SPACIO. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, PLIERS, DRIVER, SCREW.
