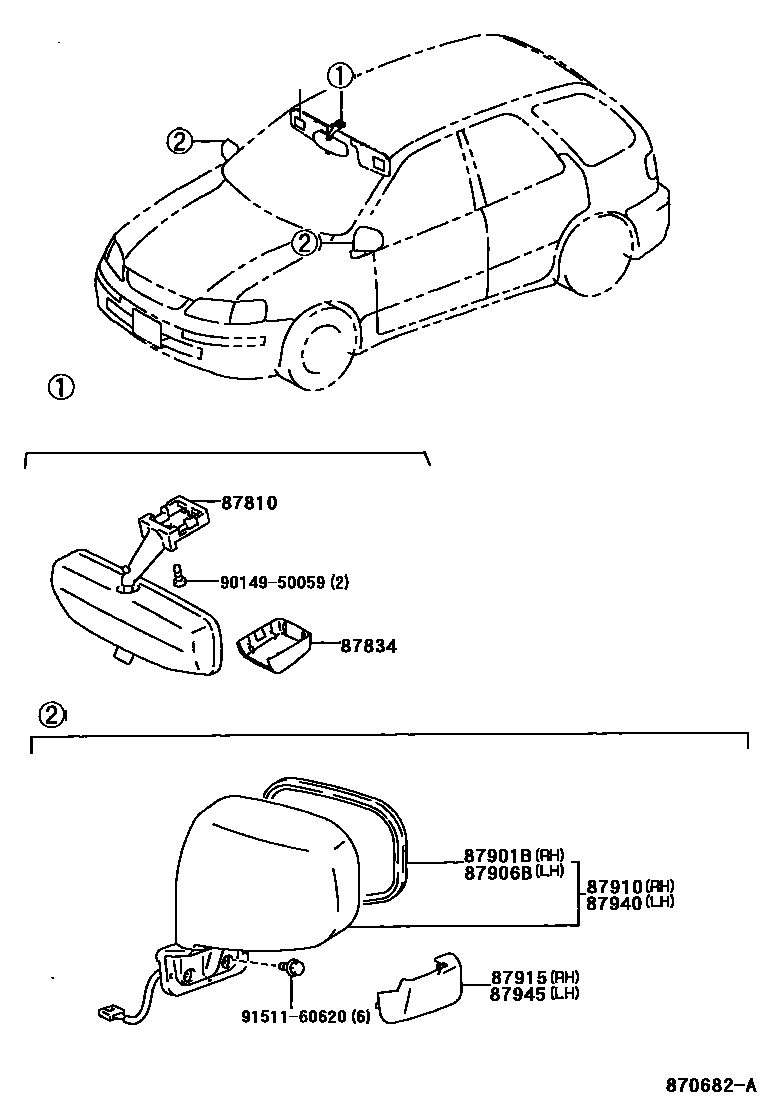

Toyota SPACIO — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
MD.CHARCOAL,TRIM1#
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
MD.CHARCOAL,TRIM1#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
SUPER WHITE 2,040
SILVER ME.,1C0
BLACK ME,205
SUPER RED 2,3E5
YELLOW GREEN ME.OP.,6Q9
GREEN M.M.,6R9
BLUE MC.,8M6
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
SILVER ME.,1C0
BLACK ME,205
SUPER RED 2,3E5
YELLOW GREEN ME.OP.,6Q9
GREEN M.M.,6R9
BLUE MC.,8M6
87940MIRROR ASSY, OUTER REAR VIEW, LH
SUPER WHITE 2,040
SILVER ME.,1C0
BLACK ME,205
SUPER RED 2,3E5
YELLOW GREEN ME.OP.,6Q9
GREEN M.M.,6R9
BLUE MC.,8M6
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
SILVER ME.,1C0
BLACK ME,205
SUPER RED 2,3E5
YELLOW GREEN ME.OP.,6Q9
GREEN M.M.,6R9
BLUE MC.,8M6
9014950059
main90149-50059
9151160620
main91511-60620
10 parts on this diagram · 1 diagram in section
MIRROR for Toyota SPACIO
This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota SPACIO. Key components include: MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH.
