Toyota SPACIO — METER

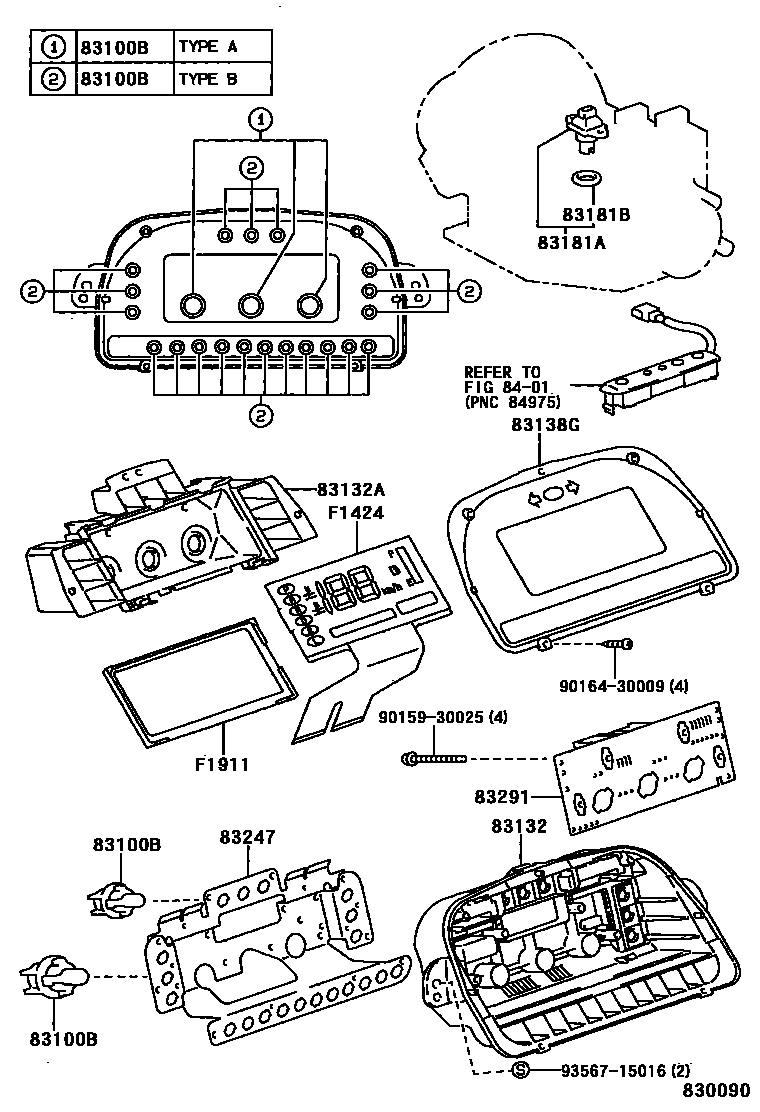

0001 1 0002 1TACHO METER

83100BBULB, COMBINATION METER, NO.1

main90981-11056×14iAE111199805

14V 80MA,TYPE B:REFER TO ILLUSTRATION

main90981-11058×3iAE111199805

9V 3W,TYPE A:REFER TO ILLUSTRATION

83132CASE, COMBINATION METER

mainF142313010iAE111199805

83132ACASE, METER

mainF142513010iAE111199805

83138GGLASS, COMBINATION METER

mainF142213011iAE111199805

83181ASENSOR, SPEEDOMETER

main83181-12020iAE111199805

83181BRING, O (FOR SPEEDOMETER SENSOR)

main96711-24030×2iAE111199805-199904

83247PLATE, METER CIRCUIT

mainF143913011iAE111199805-199904

mainF143913050iAE111199904

MARK F

mainF143913070iAE111..05S199912

HONG KONG SPORTS PACKAGE,MARK H

83291COMPUTER, COMBINATION METER

mainF140213010iAE111199805-199904

mainF140213030iAE111199904

8401

F1424CELL, COMPUTER METER LIQUID CRYSTAL

mainF142413010iAE111199805-199904

mainF142413030iAE111199904

mainF142413040iAE111..05S199912

HONG KONG SPORTS PACKAGE

F1911HOLDER, LIQUID CRYSTAL CELL

mainF191113010iAE111199805

9015930025

main90159-30025

9016430009

main90164-30009

9356715016

main93567-15016

14 parts on this diagram · 2 diagrams in section
