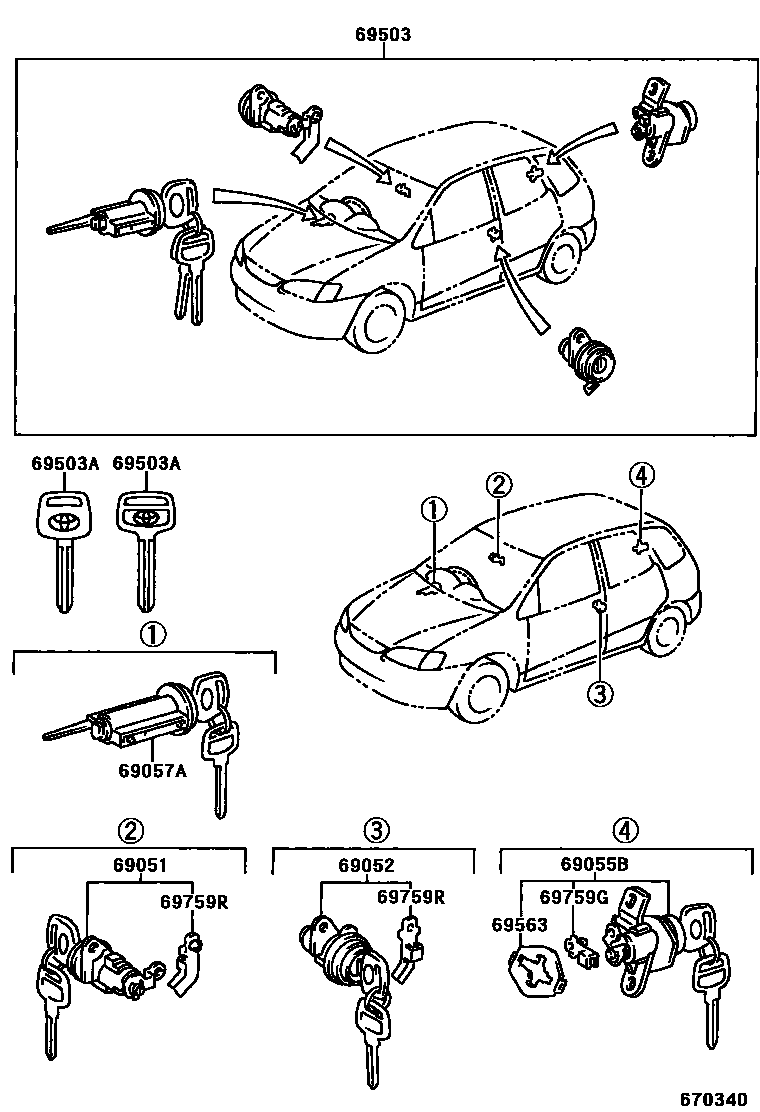

Toyota SPACIO — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-13210i199805

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-13200i199805

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-13260i199805

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12340i199805

69503CYLINDER SET, LOCK

main69005-13530i199805

69503AKEY, BLANK

main90999-00185i199805

MASTER KEY,W(*68)

main90999-00186×2i199805

MASTER KEY

69563PAD, BACK DOOR LOCK CYLINDER

main69563-13010i199805

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-20090i199805

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-12080i199805

WHITE

main69759-12090i199805

YELLOW

9 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota SPACIO

This section contains 9 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota SPACIO. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK.
