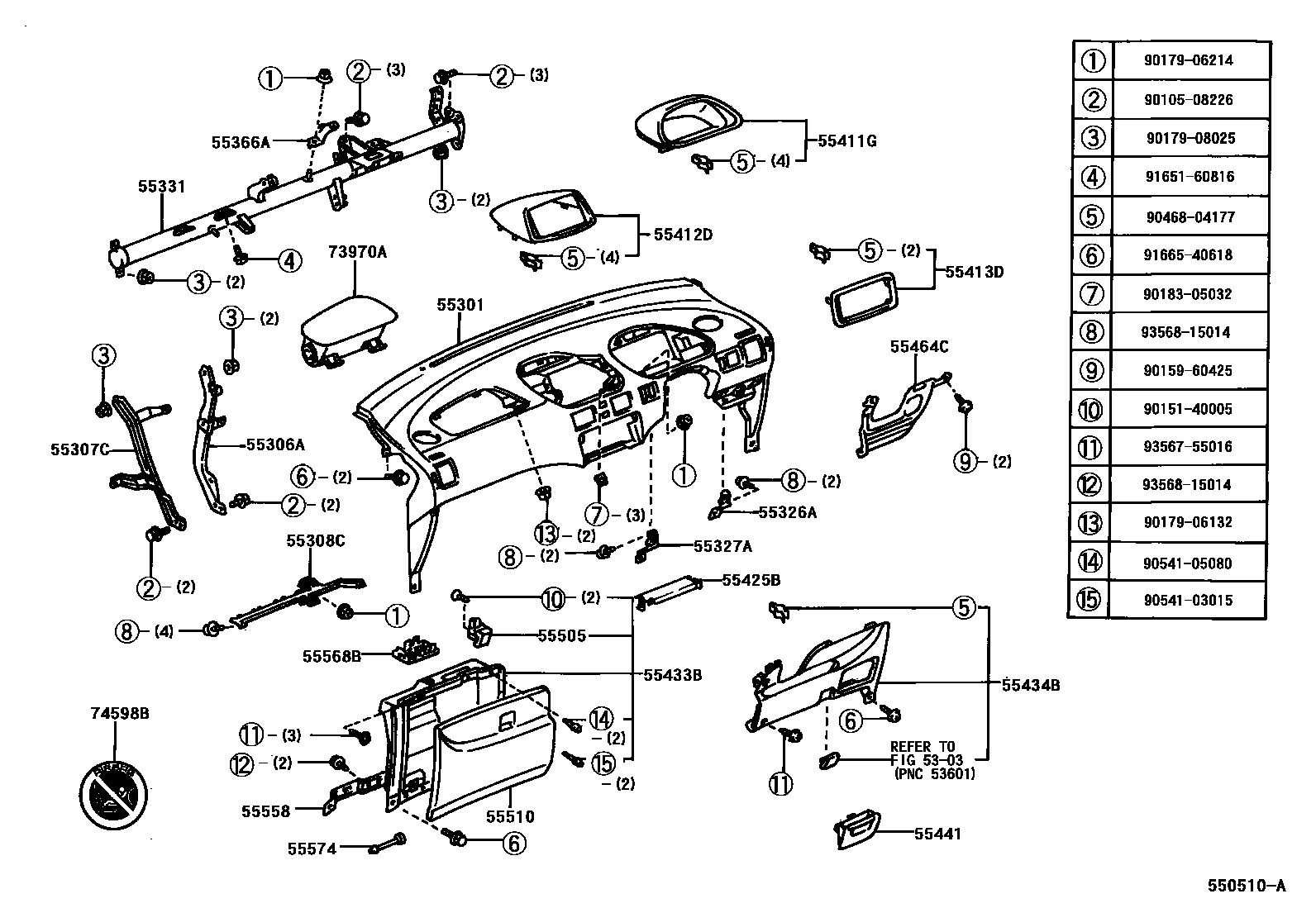

Toyota SPACIO — INSTRUMENT PANEL & GLOVE COMPARTMENT
5303HOOD LOCK & HINGE
55301PANEL SUB-ASSY, INSTRUMENT
DK.CHARCOAL,TRIM1#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55326ASTAY, INSTRUMENT PANEL, NO.1
55327ASTAY, INSTRUMENT PANEL, NO.2
55331REINFORCEMENT, INSTRUMENT PANEL
55366ABRACKET, RADIO MOUNTING, NO.1
55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1
DK.CHARCOAL,TRIM1#
55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER
DK.CHARCOAL,TRIM1#
55413DPANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER
DK.CHARCOAL,TRIM1#
55425BREINFORCEMENT, INSTRUMENT CLUSTER FINISH PANEL
55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
MD.CHARCOAL,TRIM1#
55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
MD.CHARCOAL,TRIM1#
55441BOX, INSTRUMENT PANEL
MD.CHARCOAL,TRIM1#
55464CINSERT, INSTRUMENT PANEL LOWER PAD, RH
55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
MD.CHARCOAL,TRIM1#
55510DOOR ASSY, GLOVE COMPARTMENT
MD.CHARCOAL,TRIM1#
55558REINFORCEMENT, GLOVE COMPARTMENT DOOR
55568BPLATE, GLOVE COMPARTMENT DOOR FINISH
55574SHAFT, GLOVE COMPARTMENT DOOR HINGE
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
DK.CHARCOAL,TRIM1#
74598BLABEL, PASSENGER AIRBAG CAUTION
9010508226
main90105-08226
9015140005
main90151-40005
9015960425
main90159-60425
9017906132
main90179-06132
9017906214
main90179-06214
9017908025
main90179-08025
9018305032
main90183-05032
9046804177
main90468-04177
9054103015
main90541-03015
9054105080
main90541-05080
9165160816
main91651-60816
9166540618
main91665-40618
9356755016
main93567-55016
9356815014
main93568-15014
38 parts on this diagram · 2 diagrams in section
INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota SPACIO
This section contains 57 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota SPACIO. Key components include: HOOD LOCK & HINGE, PANEL SUB-ASSY, INSTRUMENT, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2, BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER.
