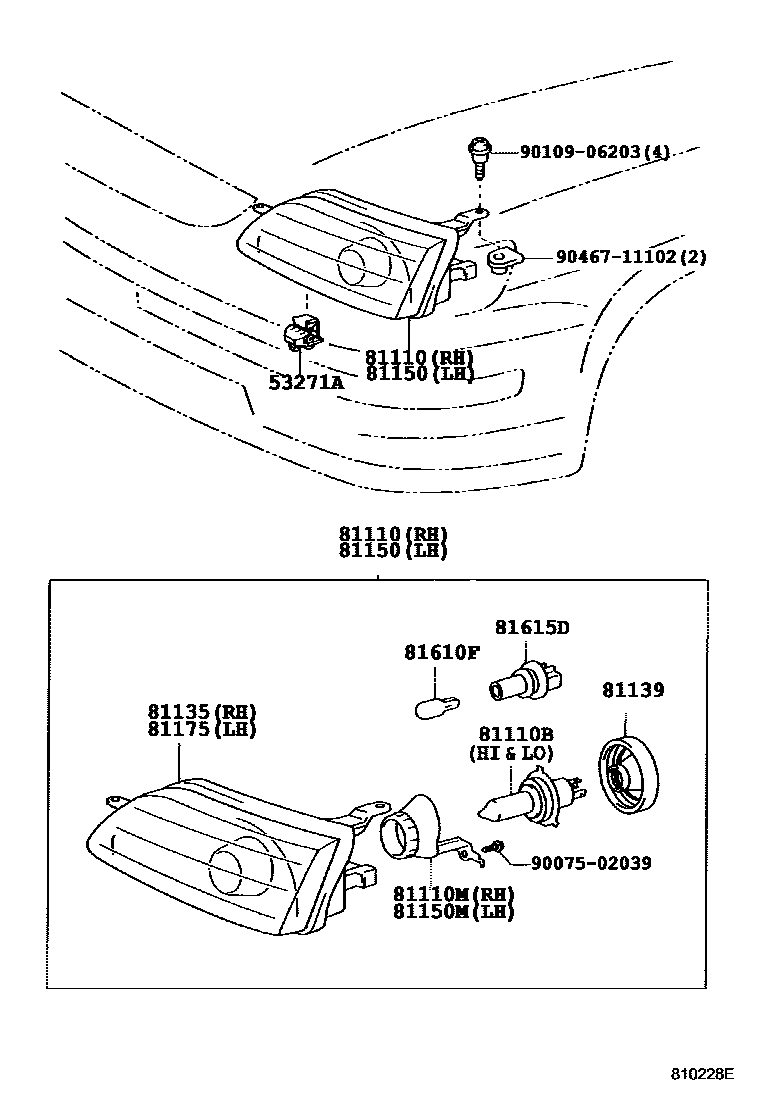

Toyota SPACIO — HEADLAMP

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060×2i199805

81110HEADLAMP ASSY, RH

main81110-13130i199805-199904

main81110-13210i199904

main81110-13220i199912

HONG KONG SPORTS PACKAGE

81110BBULB(FOR HEADLAMP, NO.1)

main90981-22004×2i199805

12V 60/55W,*HAL *WH

81110MSHADE, BULB, RH

main90075-99126i199805-199904

81135UNIT ASSY, HEADLAMP, RH

main81130-13130i199805-199904

main81130-13210i199904

main81130-13220i199912

HONG KONG SPORTS PACKAGE

81139COVER, HEADLAMP SOCKET

main90075-65002×2i199805

81150HEADLAMP ASSY, LH

main81150-13130i199805-199904

main81150-13210i199904

main81150-13220i199912

HONG KONG SPORTS PACKAGE

81150MSHADE, BULB, LH

main90075-99127i199805-199904

81175UNIT ASSY, HEADLAMP, LH

main81170-13130i199805-199904

main81170-13210i199904

main81170-13220i199912

HONG KONG SPORTS PACKAGE

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i199805

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60004×2i199805

9007502039

main90075-02039

9010906203

main90109-06203

9046711102

main90467-11102

14 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota SPACIO

This section contains 15 genuine Toyota parts for the HEADLAMP system of the Toyota SPACIO. Key components include: BRACKET, HEADLAMP MOUNTING, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SHADE, BULB, RH, FILTER, HEADLAMP.
