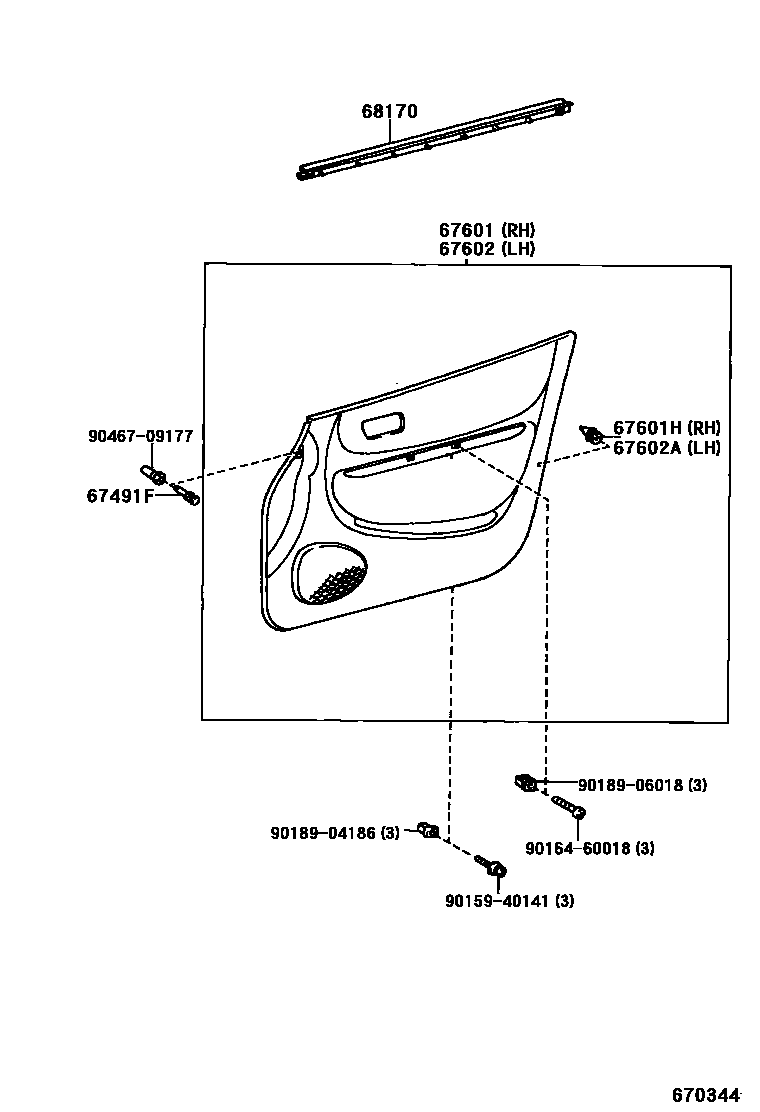

Toyota SPACIO — FRONT DOOR PANEL & GLASS

67491FCLIP(FOR DOOR TRIM)

main90467-07066-B8×2i199805

MD.CHARCOAL,TRIM1#

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-13660-B0i199805-199904

MD.CHARCOAL,TRIM1#

main67610-13780-B0i199904

DARK CHARCOAL,TRIM1#

main67610-13780-B1i199912

XXXX,TRIM1#

main67610-13790-B0i199912

HONG KONG SPORTS PACKAGE,DARK CHARCOAL,TRIM1#

67601HRETAINER, DOOR TRIM, RH

main67771-12050×5i199805

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-13590-B0i199805-199904

MD.CHARCOAL,TRIM1#

main67620-13690-B0i199904

DARK CHARCOAL,TRIM1#

main67620-13690-B1i199912

XXXX,TRIM1#

main67620-13700-B0i199912

HONG KONG SPORTS PACKAGE,DARK CHARCOAL,TRIM1#

67602ARETAINER, DOOR TRIM, LH

main67771-12050×5i199805

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-13020×2i199805

9015940141

main90159-40141

9016460018

main90164-60018

9018904186

main90189-04186

9018906018

main90189-06018

9046709177

main90467-09177

11 parts on this diagram · 2 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota SPACIO

This section contains 36 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota SPACIO. Key components include: WINDOW ASSY, FRONT SIDE FIX, RH, WINDOW ASSY, FRONT SIDE FIX, LH, PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH.
