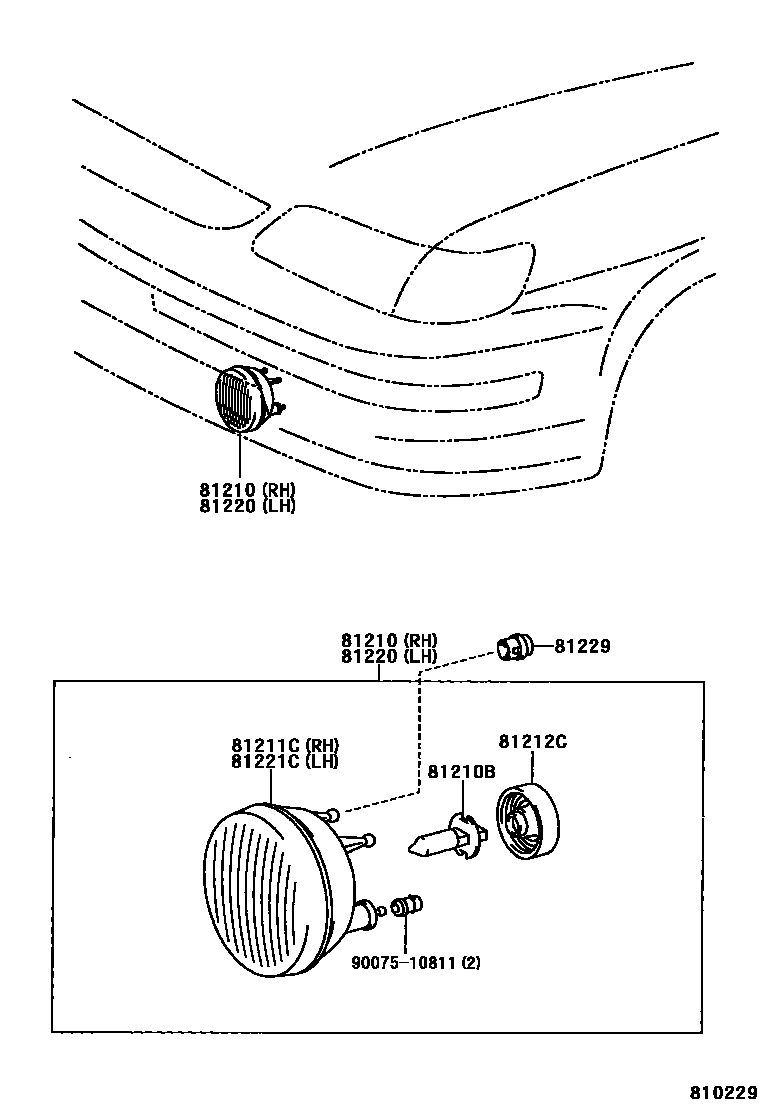

Toyota SPACIO — FOG LAMP

81210LAMP ASSY, FOG

main81210-13040i199805-199904

main81210-13090i199904

81210BBULB, FOG LAMP

main90981-13057×2i199805-199904

12V 35W

main90981-13060×2i199904

12V 55W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-13040i199805-199904

main81211-13090i199904

81212CCOVER, FOG LAMP

main90075-65003×2i199805-199904

81220LAMP ASSY, FOG, LH

main81220-13040i199805-199904

main81220-13090i199904

81221CLAMP UNIT, FOG LAMP, LH

main81221-13040i199805-199904

main81221-13090i199904

81229BRACKET, FOG LAMP

main81481-10030×4i199805-199904

9007510811

main90075-10811

8 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota SPACIO

This section contains 11 genuine Toyota parts for the FOG LAMP system of the Toyota SPACIO. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, COVER, FOG LAMP, SOCKET & WIRE, FOG LAMP.
