Toyota SPACIO — ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89426BRACKET, VACUUM SENSOR
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9011906029
main90119-06029
9015950222
main90159-50222
9043012221
main90430-12221
9161160614
main91611-60614

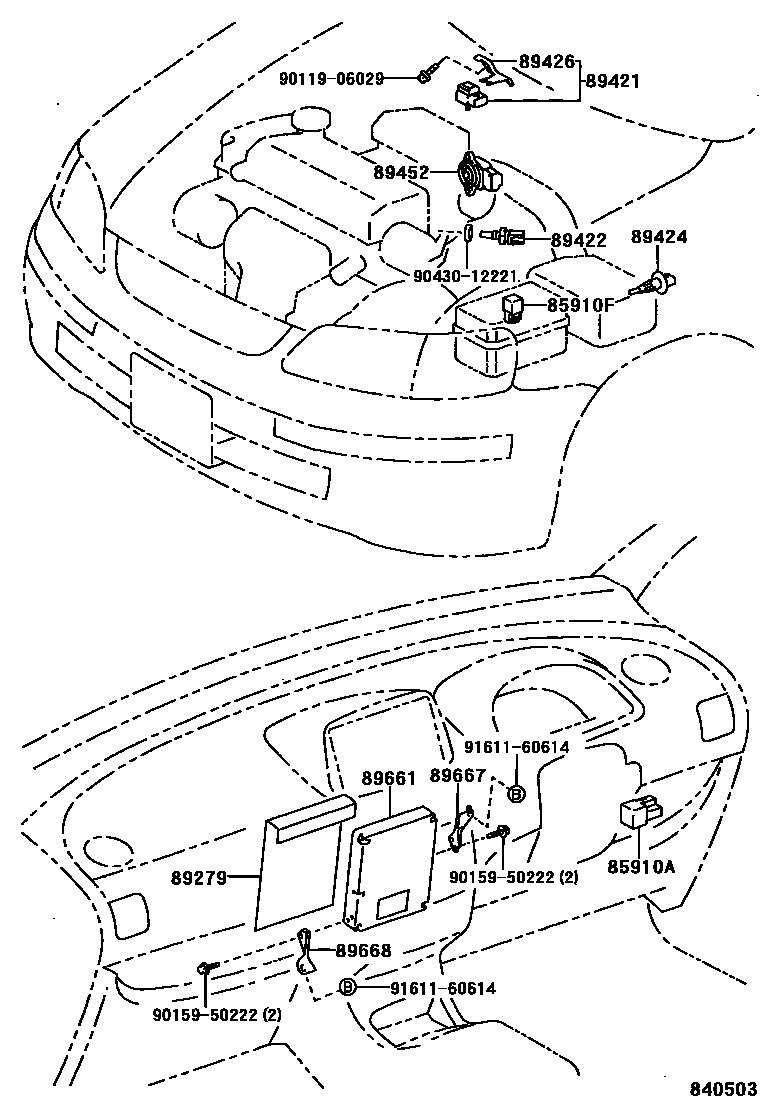

15 parts on this diagram · 1 diagram in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota SPACIO
This section contains 15 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota SPACIO. Key components include: RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, COMPUTER (FOR EFI), COVER, ENGINE CONTROL COMPUTER, SENSOR ASSY, VACUUM (FOR E.F.I.), SENSOR, WATER TEMPERATURE (FOR E.F.I.).
