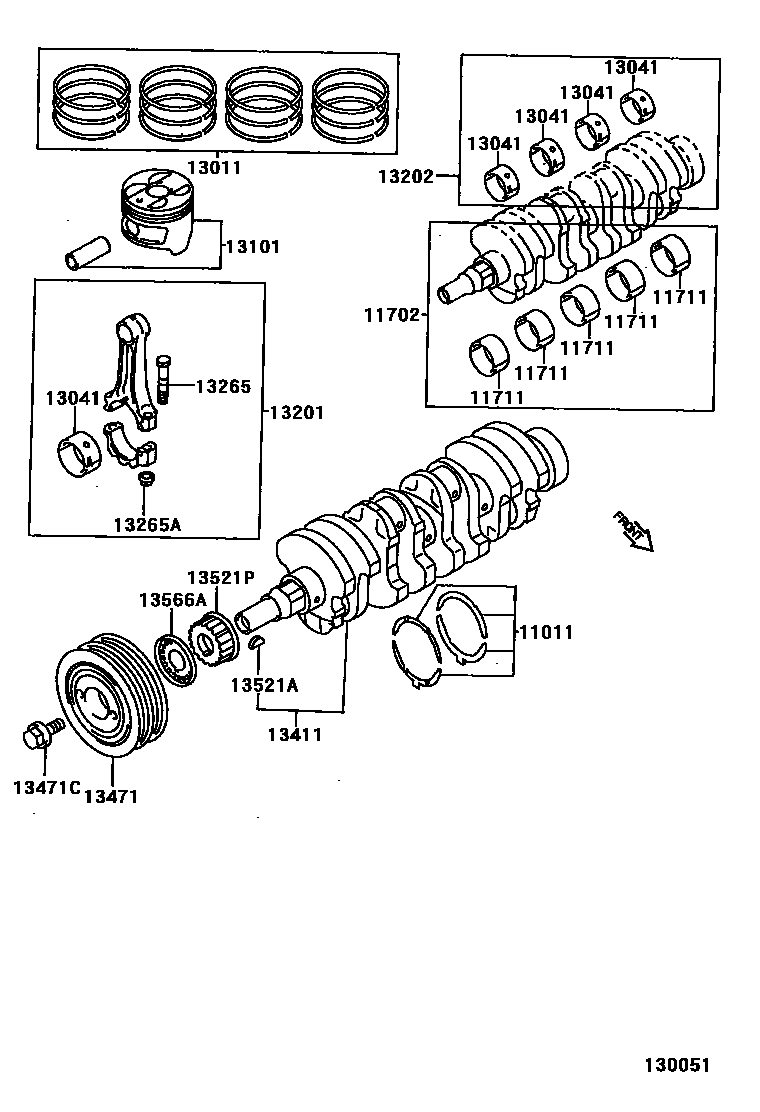

Toyota SPACIO — CRANKSHAFT & PISTON

11011WASHER SET, CRANKSHAFT THRUST

main11011-15020i199805

STD

11702BEARING SET, CRANKSHAFT

main11704-16010i199805

U/S 0.25

11711BEARING, CRANKSHAFT

main11701-16010-01×5i199805

MARK 1

main11701-16010-02×5i199805

MARK 2

main11701-16010-03×5i199805

MARK 3

main11701-16010-04×5i199805

MARK 4

main11701-16010-05×5i199805

MARK 5

13011RING SET, PISTON

main13011-16300i199805

STD

main13013-16300i199805

O/S 0.50

13041BEARING, CONNECTING ROD

main13041-15030-01×4i199805

MARK 1

main13041-15030-02×4i199805

MARK 2

main13041-15030-03×4i199805

MARK 3

13101PISTON SUB-ASSY, W/PIN

main13101-16201-01×4i199805

STD,MARK 1

main13101-16201-02×4i199805

STD,MARK 2

main13101-16201-03×4i199805

STD,MARK 3

main13103-16201×4i199805

O/S 0.50

13201ROD SUB-ASSY, CONNECTING

main13201-19135×4i199805

13202BEARING SET, CONNECTING ROD

main13204-15030i199805

U/S 0.25

13265BOLT, CONNECTING ROD

main13265-15030×8i199805

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-09008×8i199805

13411CRANKSHAFT

main13411-02901i199805-199904

(L)

main13411-16900i199805-199904

(J)

13471PULLEY, CRANKSHAFT

main13470-15110i199805-200008

main13470-15120i200008

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12314i199805

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05005i199805

13521PPULLEY, CRANKSHAFT TIMING

main13521-15020i199805

13566AGUIDE, TIMING BELT

main13566-15020i199805

16 parts on this diagram · 1 diagram in section

CRANKSHAFT & PISTON for Toyota SPACIO

This section contains 16 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota SPACIO. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, RING SET, PISTON, BEARING, CONNECTING ROD.
