Toyota SPACIO — ARMREST & VISOR

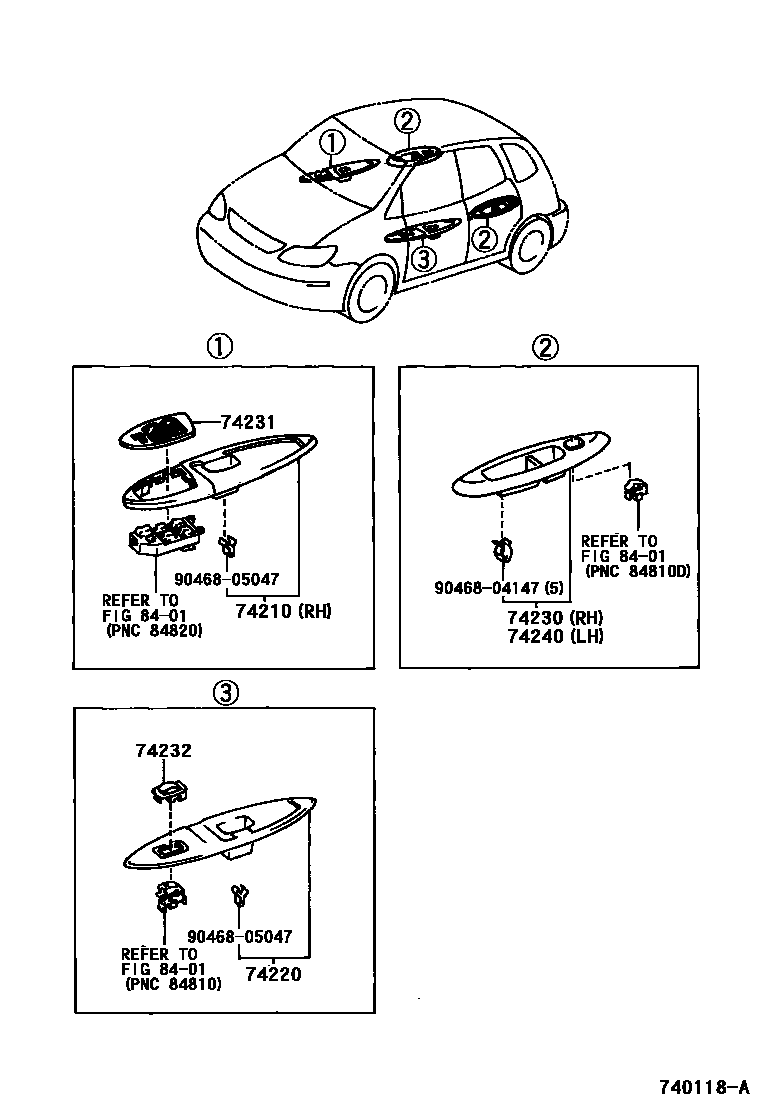

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-13010-B0iAE111199805

MD.CHARCOAL,TRIM1#

74220ARMREST ASSY, FRONT, LH

main74220-13010-B0iAE111199805

MD.CHARCOAL,TRIM1#

74230ARMREST ASSY, REAR, RH

main74250-13010-B0iAE111..06S199805

MD.CHARCOAL,TRIM1#

main74250-13020-B0iAE111..05S199805

MD.CHARCOAL,TRIM1#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-13020-B0iAE111199805

MD.CHARCOAL,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main84656-32020-B2iAE111199805

MD.CHARCOAL,TRIM1#

74240ARMREST ASSY, REAR, LH

main74260-13010-B0iAE111..06S199805

MD.CHARCOAL,TRIM1#

main74260-13020-B0iAE111..05S199805

MD.CHARCOAL,TRIM1#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046804147

main90468-04147

9046805047

main90468-05047

9 parts on this diagram · 2 diagrams in section
