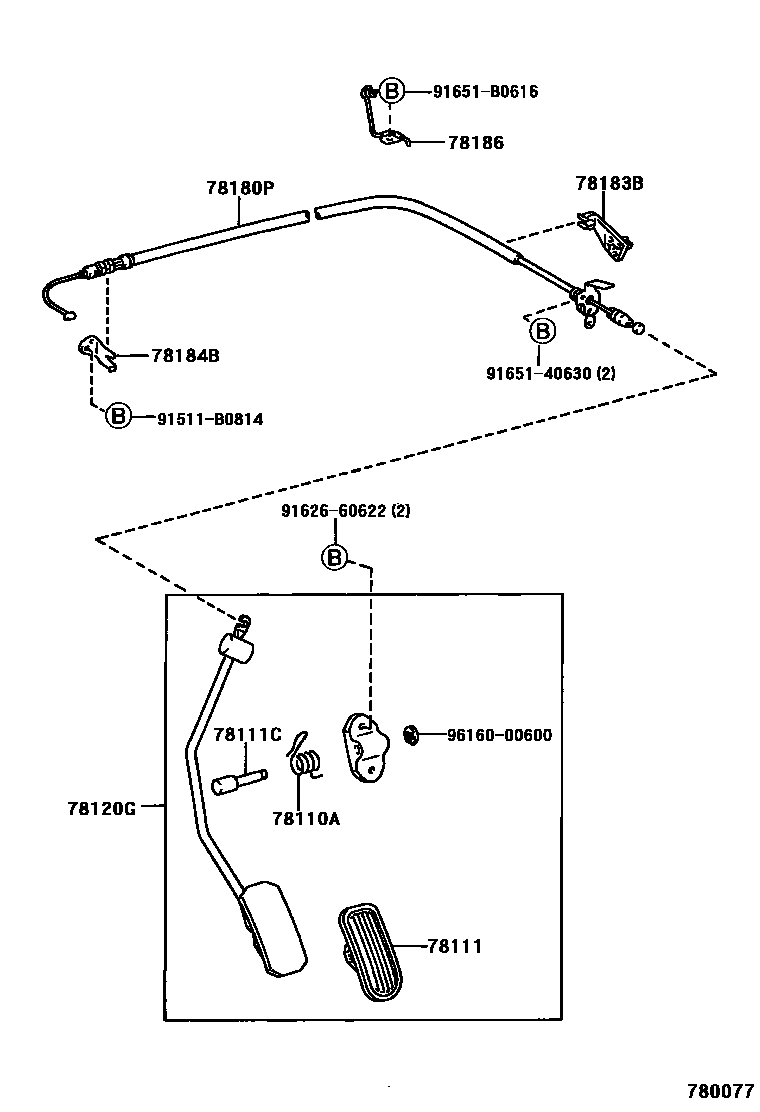

Toyota SPACIO — ACCELERATOR LINK

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18398iAE111199805

78111PEDAL, ACCELERATOR

main78111-32010iAE111199805

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-08066iAE111199805

78120GROD ASSY, ACCELERATOR PEDAL

main78120-13010iAE111199805

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-1A420iAE111199805

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12160iAE111199805

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12280iAE111199805

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12290iAE111199805

91511B0814

main91511-B0814

9162660622

main91626-60622

9165140630

main91651-40630

91651B0616

main91651-B0616

9616000600

main96160-00600

13 parts on this diagram · 1 diagram in section
