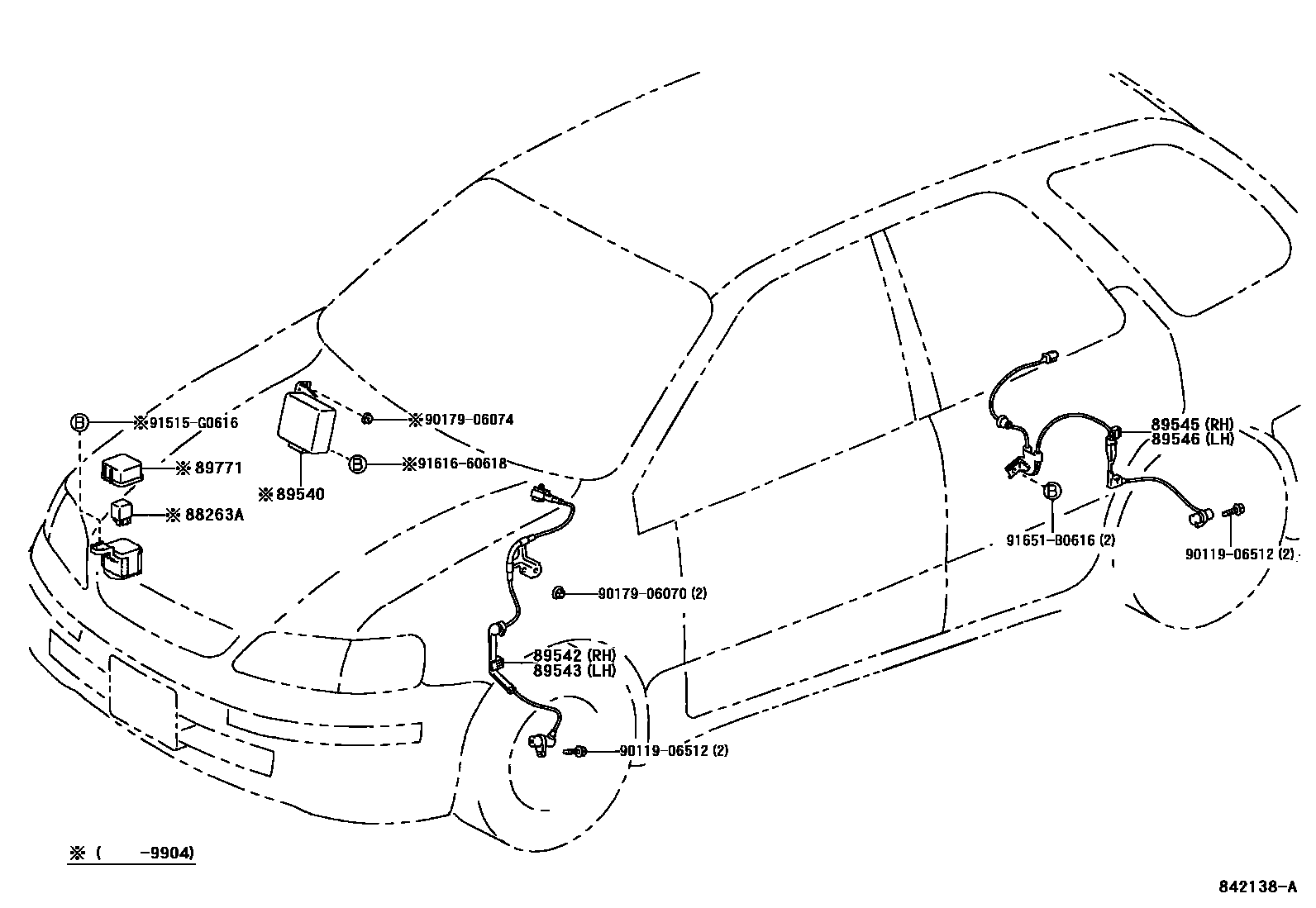

Toyota SPACIO — ABS & VSC
88263ARELAY, SKID CONTROL
89540COMPUTER ASSY, SKID CONTROL
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
89771COVER, ABS RELAY BLOCK, UPPER
9011906512
main90119-06512
9017906070
main90179-06070
9017906074
main90179-06074
91515G0616
main91515-G0616
9161660618
main91616-60618
91651B0616
main91651-B0616
13 parts on this diagram · 1 diagram in section
ABS & VSC for Toyota SPACIO
This section contains 13 genuine Toyota parts for the ABS & VSC system of the Toyota SPACIO. Key components include: RELAY, SKID CONTROL, COMPUTER ASSY, SKID CONTROL, SENSOR, SPEED, FRONT RH, SENSOR, SPEED, FRONT LH, SENSOR, SPEED, REAR RH.
