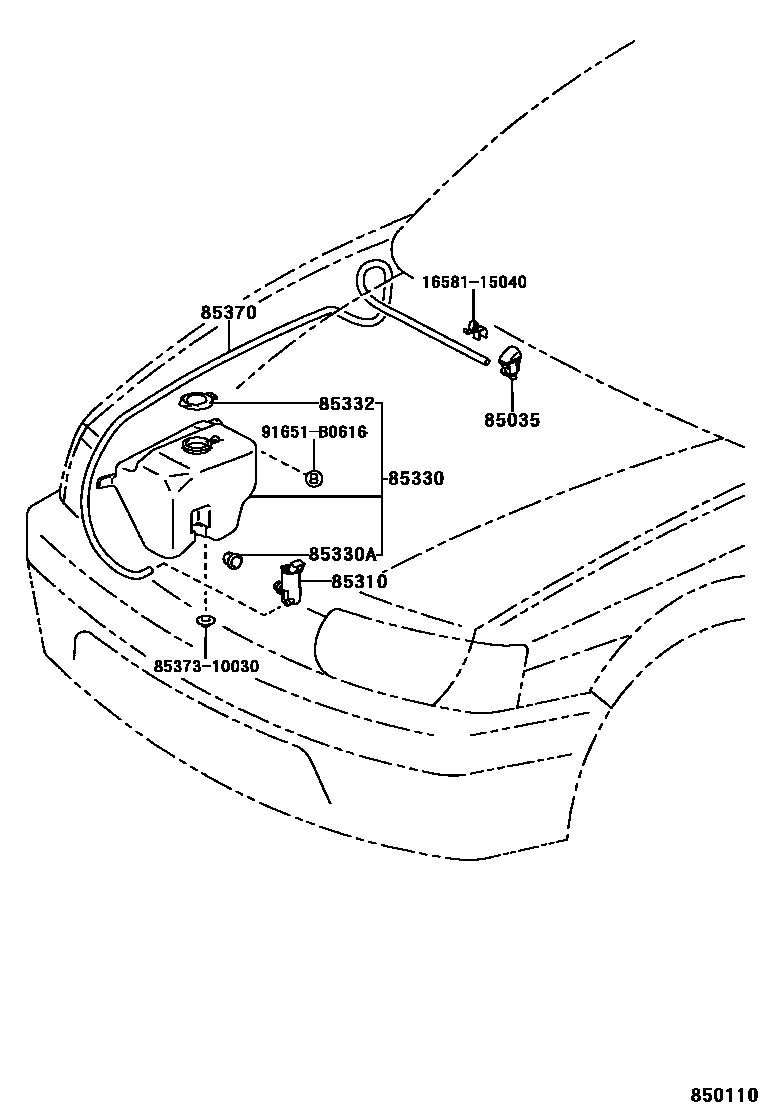

Toyota SOLUNA — WINDSHIELD WASHER

0001 1 0003 1

85035NOZZLE SUB-ASSY, WASHER

main85381-0A010iAL50..IDN199910

main85381-0A020iAL50..GEN199910

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iAL50..IDN200003

main85330-60140iAL50..GEN199910

85330JAR ASSY, WINDSHIELD WASHER

main85315-0A010iAL50199612-199910

main85315-0A020iAL50..IDN200003

main85315-0A030iAL50..GEN199910

85330ABUSH, WINDSHIELD WASHER JAR

main90068-32001iAL50..IDN200003

main90068-32002iAL50..GEN199910

main90099-32089iAL50199612-199910

85332CAP, WINDSHIELD WASHER JAR

main85316-0A010iAL50199612-199910

main85316-0A020iAL50..IDN200003

main85316-YE010iAL50..GEN199910

85370HOSE ASSY, WINDSHIELD WASHER

main85370-0A010iAL50199612-199910

main85370-0A020iAL50..GEN199910

1658115040CLAMP, HOSE(FOR WATER HOSE)

main16581-15040

8537310030HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-10030

91651B0616

main91651-B0616

9 parts on this diagram · 2 diagrams in section
