Toyota SOLUNA — RADIO RECEIVER & AMPLIFIER & CONDENSER

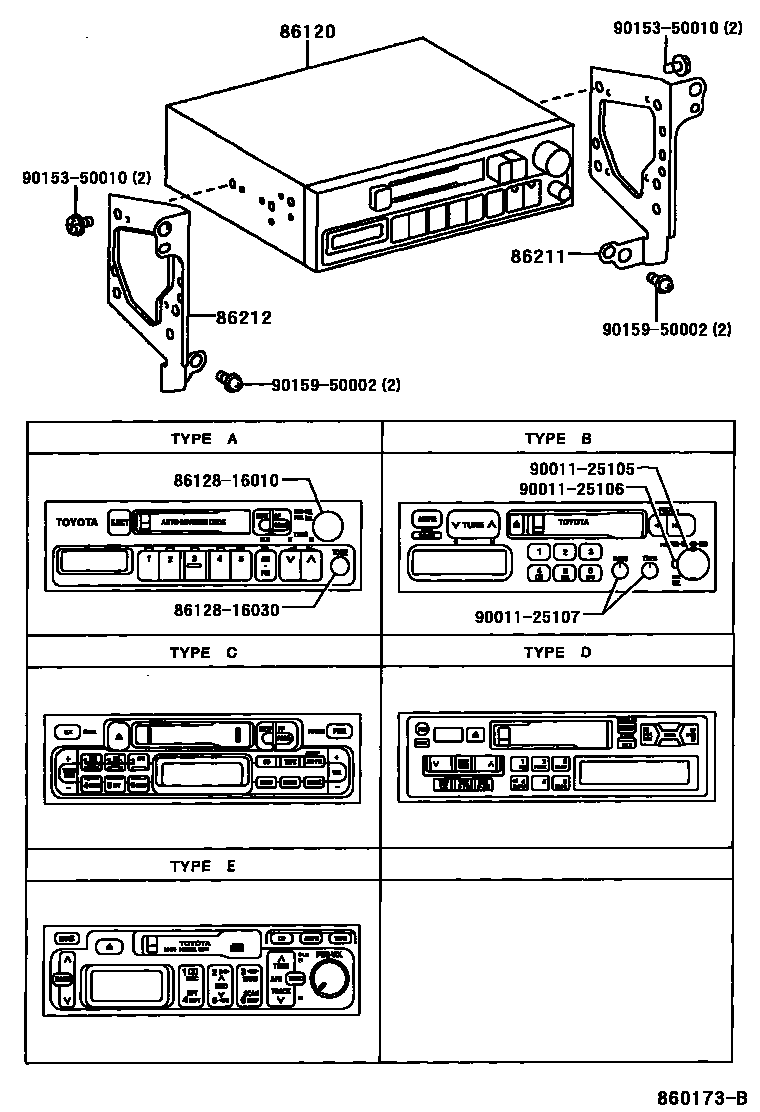

Parts diagram

86120RECEIVER ASSY, RADIO

main86120-0A010i200010

NATIONAL,TYPE A:REFER TO ILLUSTRATION

main86120-0A020i199612-199910

PIONEER,ID=P7401,TYPE B:REFER TO ILLUSTRATION

main86120-0A040i200003

ALPINE,TYPE D:REFER TO ILLUSTRATION

main86120-0A060i199910

PIONEER,ID=P7403,TYPE E:REFER TO ILLUSTRATION

86211BRACKET, RADIO, NO.1

main86211-0A010i199612

main86211-0A020i200003

4 SPEAKER

86212BRACKET, RADIO, NO.2

main86212-0A010i199612

main86212-0A020i200003

4 SPEAKER

8612816010KNOB, RADIO RECEIVER

main86128-16010

8612816030KNOB, RADIO RECEIVER

main86128-16030

9001125105

main90011-25105

9001125106

main90011-25106

9001125107

main90011-25107

9015350010

main90153-50010

9015950002

main90159-50002

10 parts on this diagram · 1 diagram in section

RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota SOLUNA

This section contains 10 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota SOLUNA. Key components include: RECEIVER ASSY, RADIO, BRACKET, RADIO, NO.1, BRACKET, RADIO, NO.2, KNOB, RADIO RECEIVER.
