Toyota SOLUNA — RADIATOR GRILLE

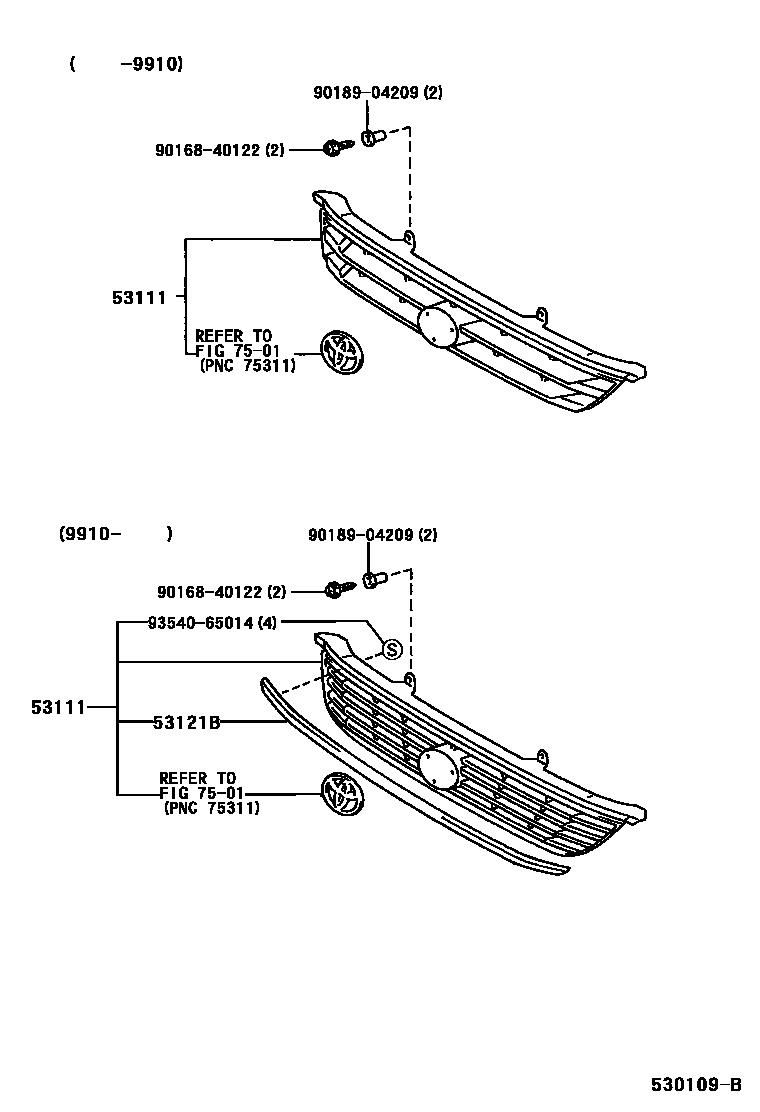

Parts diagram

53111GRILLE, RADIATOR

main53101-0A010i199612-199810

main53101-0A020i200003-200104

main53101-0A030i199910-200104

main53101-0A040i199810-199910

main53101-0A050-B0i200111

SILVER ME.,1D0

main53101-0A050-D0i200111

RED MC.,3M8

main53101-0A050-F0i200111

CHAMPAGNE ME.,586

main53101-0A050-G0i200111

DK.GREEN MC.,6Q7

main53101-0A050-J0i200111

BLUE MC.,8M6

main53101-0A050-K0i200111

AMETHYST ME.,941

53121BMOULDING, RADIATOR GRILLE, UPPER

main53121-0A010i199910-200104

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9016840122

main90168-40122

9018904209

main90189-04209

9354065014

main93540-65014

6 parts on this diagram · 1 diagram in section

RADIATOR GRILLE for Toyota SOLUNA

This section contains 6 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota SOLUNA. Key components include: GRILLE, RADIATOR, MOULDING, RADIATOR GRILLE, UPPER, EMBLEM & NAME PLATE (EXTERIOR & INTERIOR).
