Toyota SOLUNA — METER

0001 1W/O(TACHOMETER) 0003 1W/O(TACHOMETER) 0004 1W(TACHOMETER) 0006 1W(TACHOMETER) 0007 1SPEEDOMETER CABLE

83100BBULB, COMBINATION METER, NO.1

main83109-24010iAL50..4FC;AL50..5F..(GLI,SLI)199810-199910

12V 1.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION

main83109-24020×3iAL50..4FC;AL50..5F..(GLI,SLI)199810-199910

12V3.4W W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION

main90981-11018×9iAL50..4FC199810-199910

12V 1.2W W/O SOCKET,TYPE D:REFER TO ILLUSTRATION

main99132-12034iAL50..4FC;AL50..5F..(GLI,SLI)199810-199910

12V 3.4W,TYPE A:REFER TO ILLUSTRATION

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×4iAL50..4FC;AL50..5F..(GLI,SLI)199810-199910

TYPE B OR TYPE C:REFER TO ILLUSTRATION

main83101-14040×12iAL50..GLI..GEN199910

TYPE A OR TYPE D:REFER TO ILLUSTRATION

83110SPEEDOMETER ASSY

main83220-0A010iAL50..XLI199612-199810

main83220-0A020iAL50..GLI,SLI199612-199910

main83220-0A030iAL50..XLI199910

main83220-0A040iAL50..GLI,SLI199910

83132CASE, COMBINATION METER

main83841-0A010iAL50199612-199810

main83841-0A060iAL50199910

83133PLATE, COMBINATION METER, NO.1

main83811-0A010iAL50..XLI199612-199810

main83811-0A020iAL50..GLI,SLI199612

83138GLASS, SPEEDOMETER

main83852-0A010iAL50..XLI199612-199810

main83852-0A020iAL50..GLI,SLI199612

83149PLATE, METER CIRCUIT

main83861-0A010iAL50..XLI199612-199810

main83861-0A020iAL50..GLI199612-199810

main83861-0A030iAL50..GLI,SLI199810-199910

main83861-0A040iAL50..4FC..XLI199810-199910

main83861-0A060iAL50..XLI199910

main83861-0A080iAL50..GLI,SLI199910

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-0A010iAL50..XLI199612-199810

main83882-0A020iAL50..(3FC,5F)..(GLI,SLI)199612-199910

main83882-0A030iAL50..4FC..(GLI,SLI)199810-199910

main83882-0A050iAL50..4FC..XLI199810-199910

main83882-0A060iAL50..5F..XLI199910

main83882-0A070iAL50..4FC..XLI199910

main83882-0A080iAL50..5F..SLI;AL50..5F..GLI..IDN199910

main83882-0A090iAL50..4FC..SLI;AL50..4FC..IDN199910

main83882-0A100iAL50..5F..GLI..GEN199910

main83882-0A110iAL50..4FC..GLI..GEN199910

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-0A010iAL50..XLI199612-199810

main83883-0A060iAL50..XLI199910

9009900228

main90099-00228

9009900917

main90099-00917

9009900929

main90099-00929

9015950109

main90159-50109

9016750028

main90167-50028

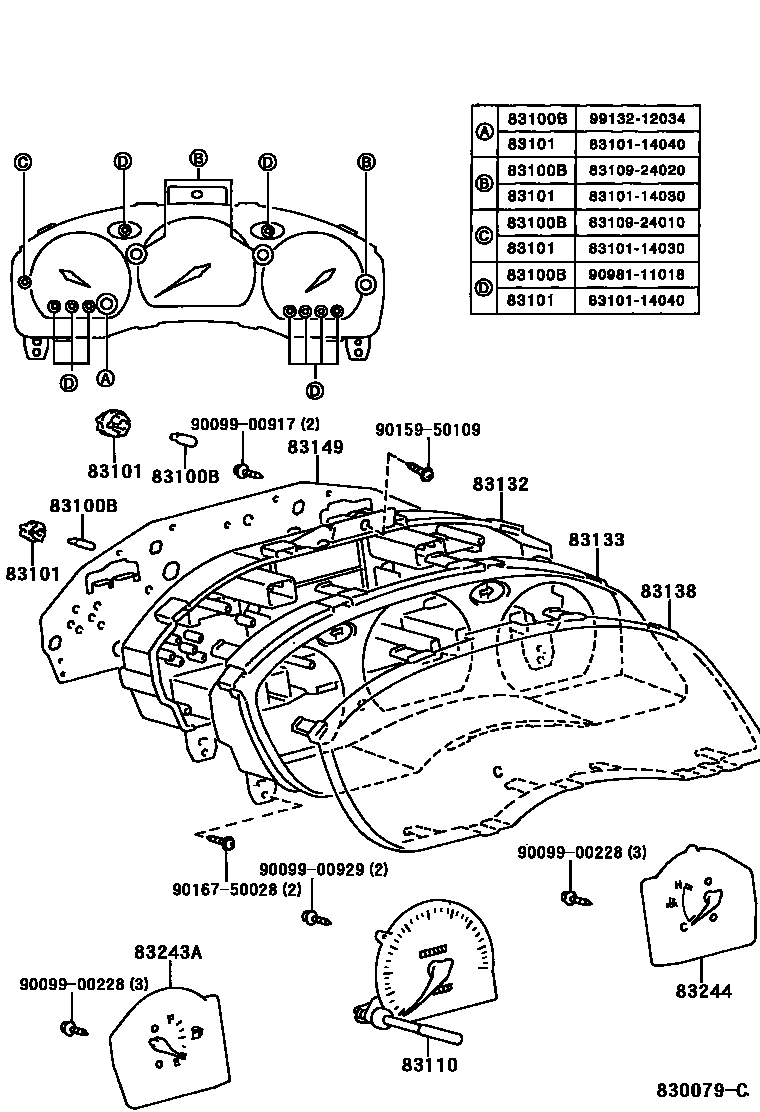

14 parts on this diagram · 5 diagrams in section
