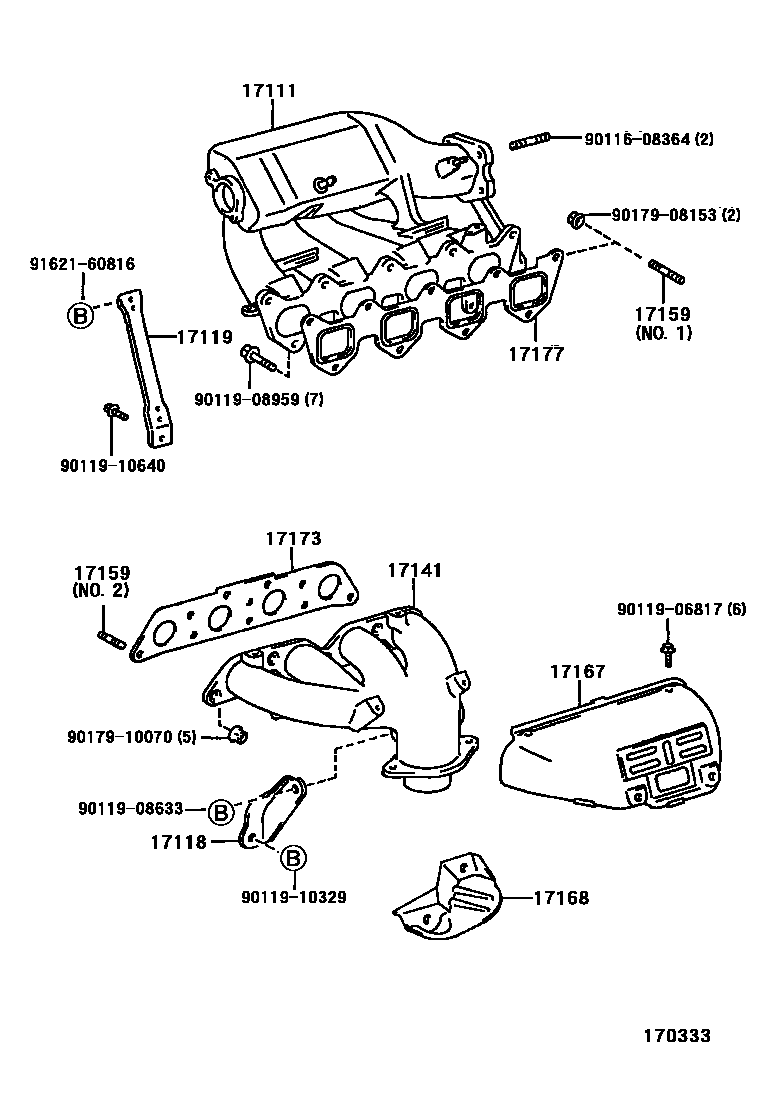

Toyota SOLUNA — MANIFOLD
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17141MANIFOLD, EXHAUST
(L)
(J)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(L)
(J)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(L)
(J)
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(J)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
9011608364
main90116-08364
9011906817
main90119-06817
9011908633
main90119-08633
9011908959
main90119-08959
9011910329
main90119-10329
9011910640
main90119-10640
9017908153
main90179-08153
9017910070
main90179-10070
9162160816
main91621-60816
18 parts on this diagram · 2 diagrams in section
MANIFOLD for Toyota SOLUNA
This section contains 21 genuine Toyota parts for the MANIFOLD system of the Toyota SOLUNA. Key components include: MANIFOLD, INTAKE, STAY, MANIFOLD, STAY, MANIFOLD, NO.2, MANIFOLD, EXHAUST, BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD).
