Toyota SOLUNA — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-0A010i199612-199910

main81110-0A020i200003-200104

main81110-0A030i200104

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81055×2i199612-200104

12V 60/55W

main90981-22003×2i200003-200104

12V 60/55W,*HAL *WH

81116BHEAD LAMP BEARING

main81116-0A010×2i199612-199910

main81116-0A020×2i200003-200104

81131BHEAD LAMP LENS, RH

main81131-0A010i199612-199910

main81131-0A020i200003-200104

81132BGASKET, HEADLAMP LENS

main81132-0A010×2i199612-199910

main81132-0A020×2i200003-200104

81139COVER, HEADLAMP SOCKET

main81139-0A010×2i199612-200104

main81139-0A020×2i200003-200104

81150HEADLAMP ASSY, LH

main81150-0A010i199612-199910

main81150-0A020i200003-200104

main81150-0A030i199910-200104

81171BHEAD LAMP LENS, LH

main81171-0A010i199612-199910

main81171-0A020i200003-200104

81610FBULB(FOR CLEARANCE LAMP)

main90080-81053×2i199612-200104

12V 5.0W

main99132-12050×2i200003-200104

12V 5W

81615CSOCKET & WIRE, CLEARANCE LAMP

main81138-0A010×2i199612

811950A010SCREW, HEADLAMP

main81195-0A010

9006919013

main90069-19013

9006919015

main90069-19015

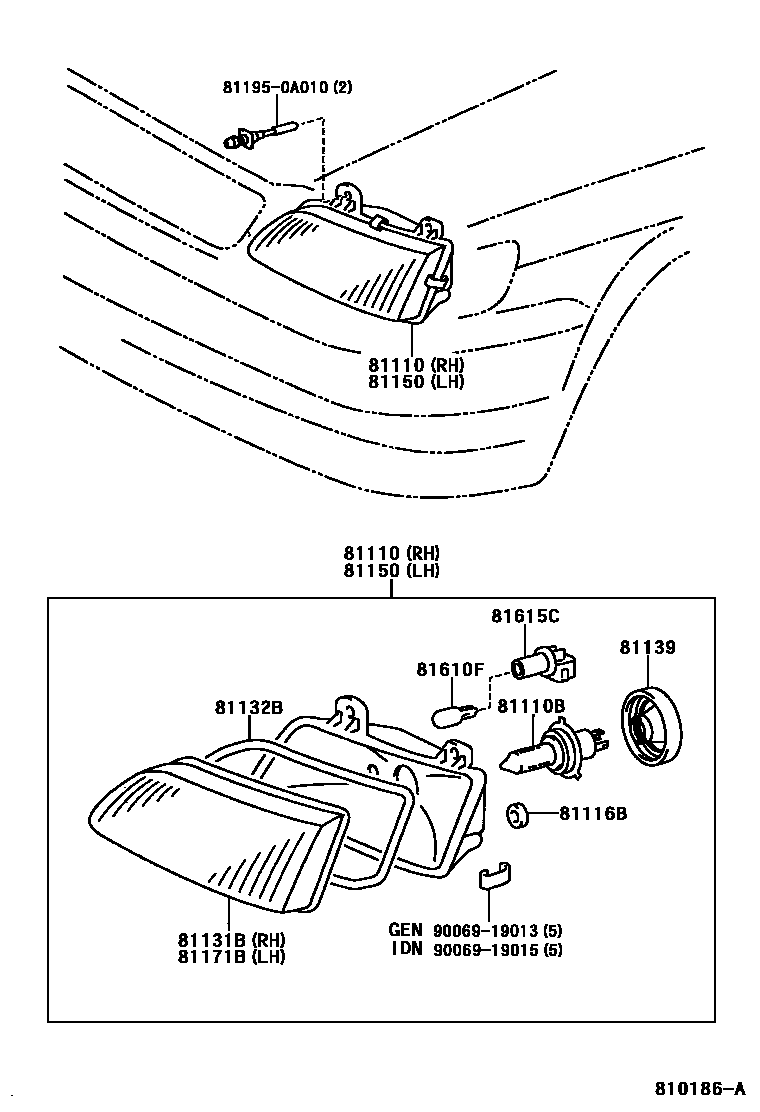

13 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota SOLUNA

This section contains 15 genuine Toyota parts for the HEADLAMP system of the Toyota SOLUNA. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), HEAD LAMP BEARING, HEAD LAMP LENS, RH, GASKET, HEADLAMP LENS.
