Toyota SOLUNA — COWL PANEL & WINDSHIELD GLASS

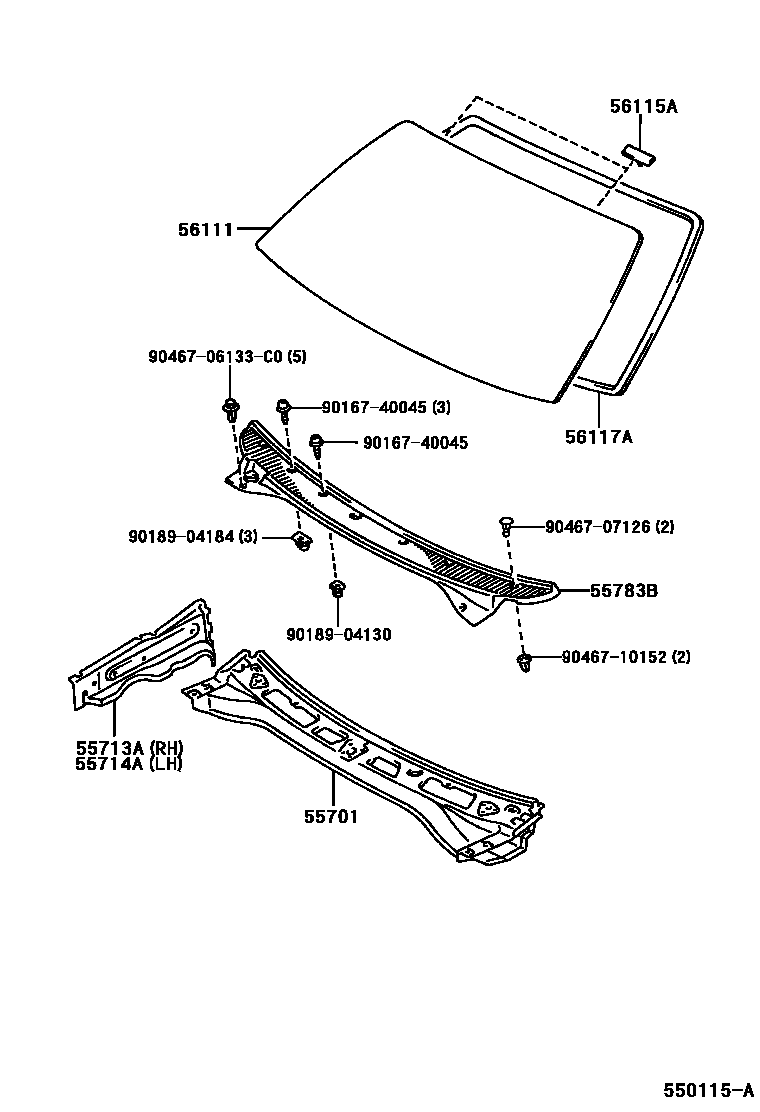

Parts diagram

55701PANEL SUB-ASSY, COWL

main55700-0A010i199612-199910

main55700-0A020i199910

55713APANEL, COWL TOP SIDE, RH

main55713-0A010i199612

55714APANEL, COWL TOP SIDE, LH

main55714-0A010i199612

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-0A010i199612

main55708-0A020i199810

56111GLASS, WINDSHIELD

main56111-0A011i199612-199804

*LAM,T=4.76,CLEAR

main56111-0A030i199810

*LAM,T=4.76,CLEAR

main56111-0A040i199804

*LAM,T=4.76,GREEN

main56111-0A050i199910

*LAM,T=4.76,GREEN,W/O(EUROPE APPROVAL MARK)

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56116-16060×2i199612

56117ADAM, WINDOW GLASS ADHESIVE

main04562-12010i199612

9016740045

main90167-40045

9018904130

main90189-04130

9018904184

main90189-04184

9046706133C0

main90467-06133C0

9046707126

main90467-07126

9046710152

main90467-10152

13 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota SOLUNA

This section contains 13 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota SOLUNA. Key components include: PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, RH, PANEL, COWL TOP SIDE, LH, LOUVER, COWL TOP VENTILATOR, CENTER NO.1, GLASS, WINDSHIELD.
