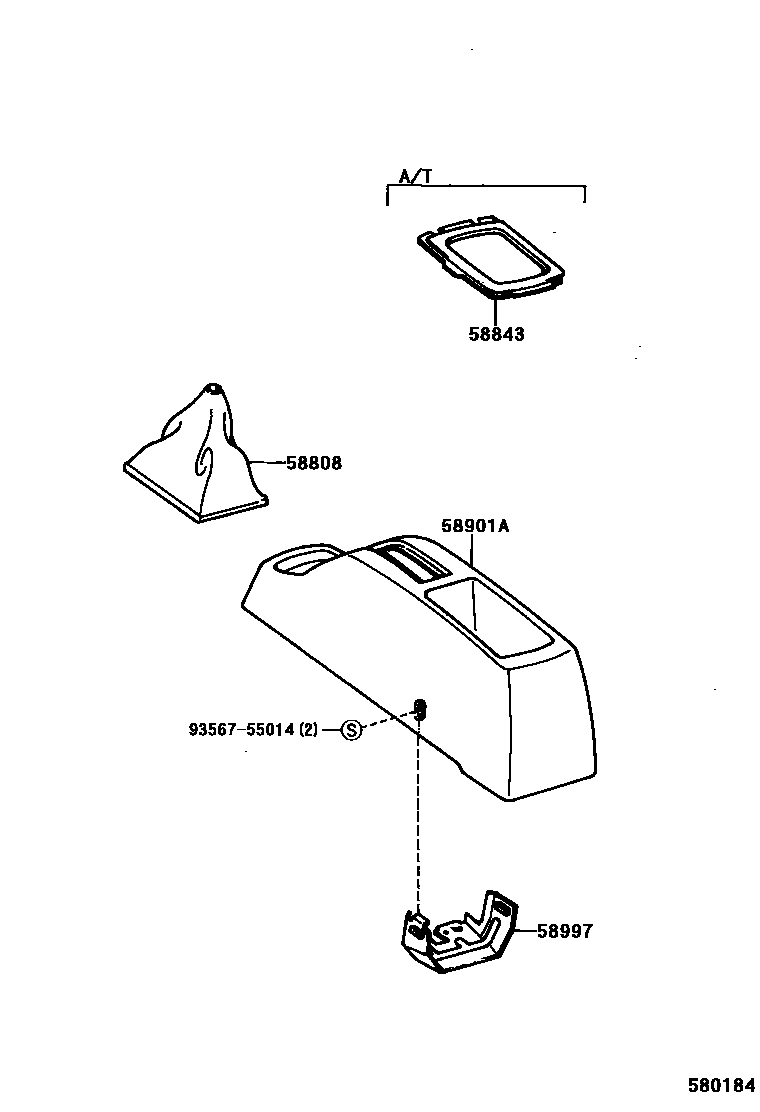

Toyota SOLUNA — CONSOLE BOX & BRACKET

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-0A010-B0iAL50..5F..GEN199612-200203

BLUISH GRAY,TRIM1#

main58808-0A020-B0iAL50..5F..IDN200003

BLUISH GRAY,TRIM1#

58843BEZEL, SHIFTING HOLE

main58843-16040-B0iAL50..4FC..GLI..GEN200203

BLUISH GRAY,TRIM0#,1#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-0A010-B0iAL50..GLI199612-200111

BLUISH GRAY,TRIM1#

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-0A010iAL50..GLI,SLI200111

9356755014

main93567-55014

5 parts on this diagram · 1 diagram in section
