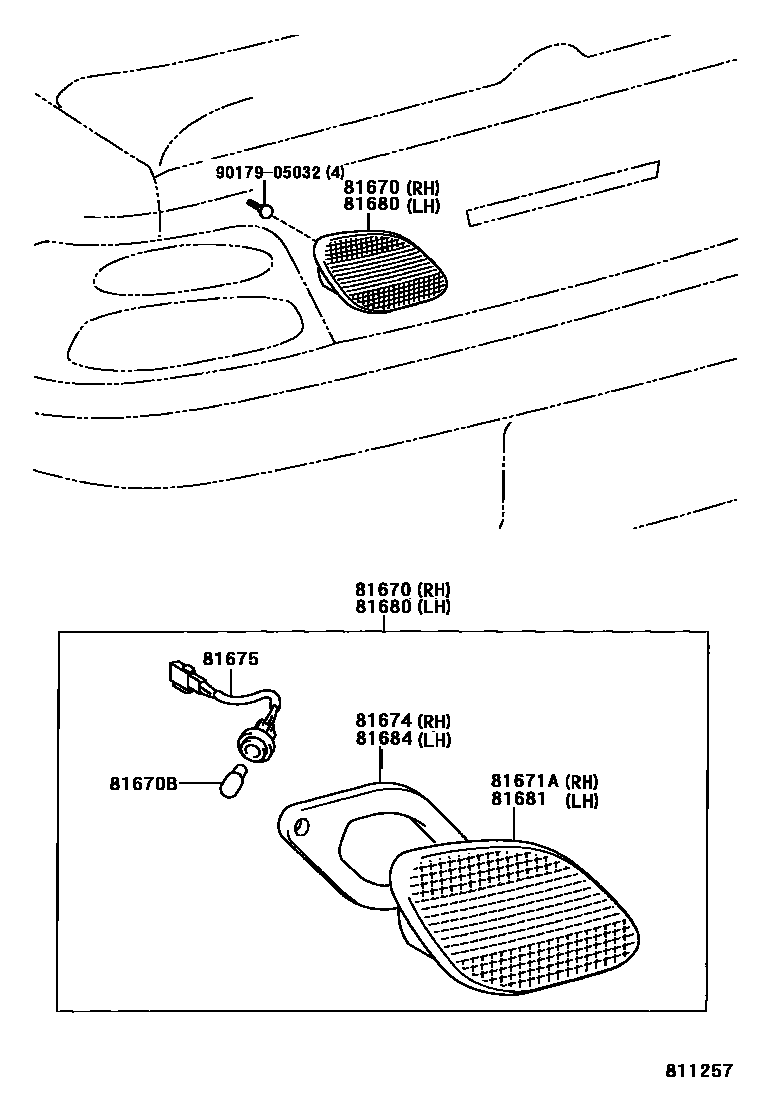

Toyota SOLUNA — BACK UP LAMP

81670LAMP ASSY, BACK-UP, RH

main81670-0A010i199910-200104

81670BBULB(FOR BACK-UP LAMP)

main90080-81065×2i199910-200104

12V 18W

81671ALENS & BODY, BACK-UP LAMP

main81671-0A010i199910-200104

81674GASKET, BACK-UP LAMP BODY, RH

main81674-0A010i199910-200104

81675SOCKET & WIRE, BACK-UP LAMP

main81675-0A010×2i199910-200104

81680LAMP ASSY, BACK UP, LH

main81680-0A010i199910

81681LENS, BACK-UP LAMP, LH

main81681-0A010i199910-200104

81684GASKET, BACK UP LAMP BODY, LH

main81684-0A010i199910-200104

9017905032

main90179-05032

9 parts on this diagram · 1 diagram in section

BACK UP LAMP for Toyota SOLUNA

This section contains 9 genuine Toyota parts for the BACK UP LAMP system of the Toyota SOLUNA. Key components include: LAMP ASSY, BACK-UP, RH, BULB(FOR BACK-UP LAMP), LENS & BODY, BACK-UP LAMP, GASKET, BACK-UP LAMP BODY, RH, SOCKET & WIRE, BACK-UP LAMP.
