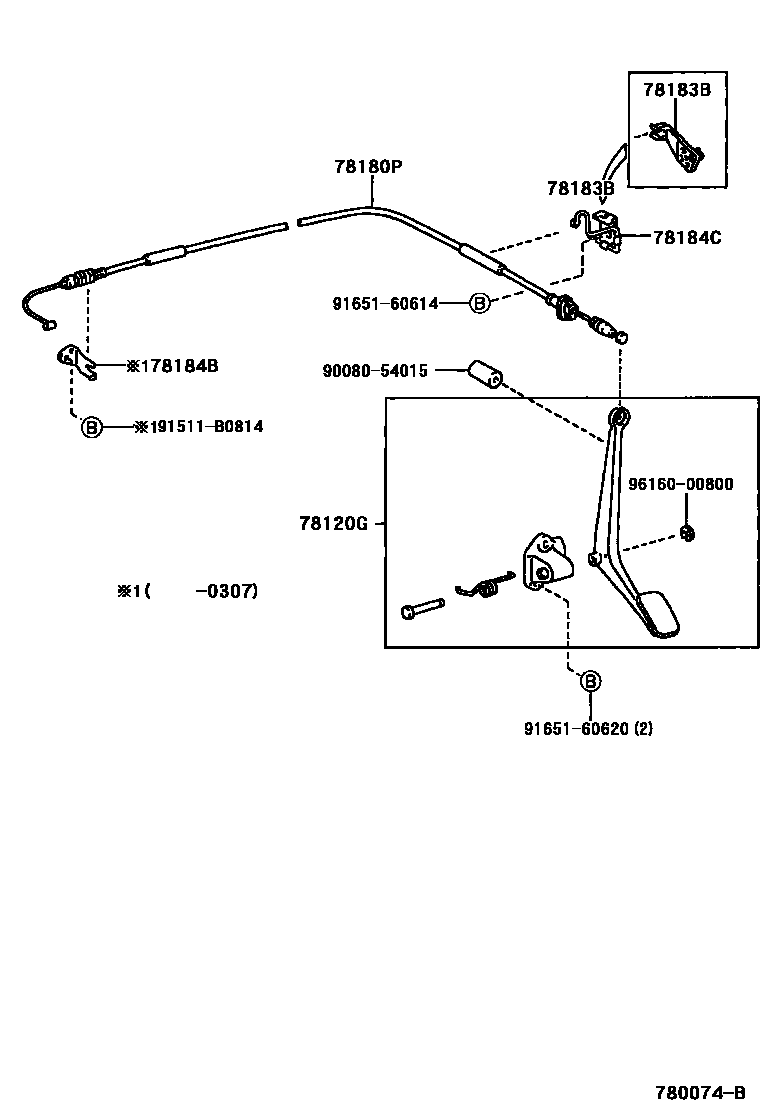

Toyota SOLUNA — ACCELERATOR LINK

78120GROD ASSY, ACCELERATOR PEDAL

main78120-16140iAL50..5F199612

main78120-16150iAL50..ATM199612

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-0A010iAL50199612-199903

main78180-0A030iAL50..GEN199903

main78180-0A040iAL50..IDN199904

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12160iAL50199612-199910

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12280iAL50199612-200307

78184CBRACKET, ACCELERATOR CONTROL CABLE

main78184-16080iAL50..GEN199910

9008054015

main90080-54015

91511B0814

main91511-B0814

9165160614

main91651-60614

9165160620

main91651-60620

9616000800

main96160-00800

10 parts on this diagram · 1 diagram in section
