Toyota SOLUNA — ACCELERATOR LINK

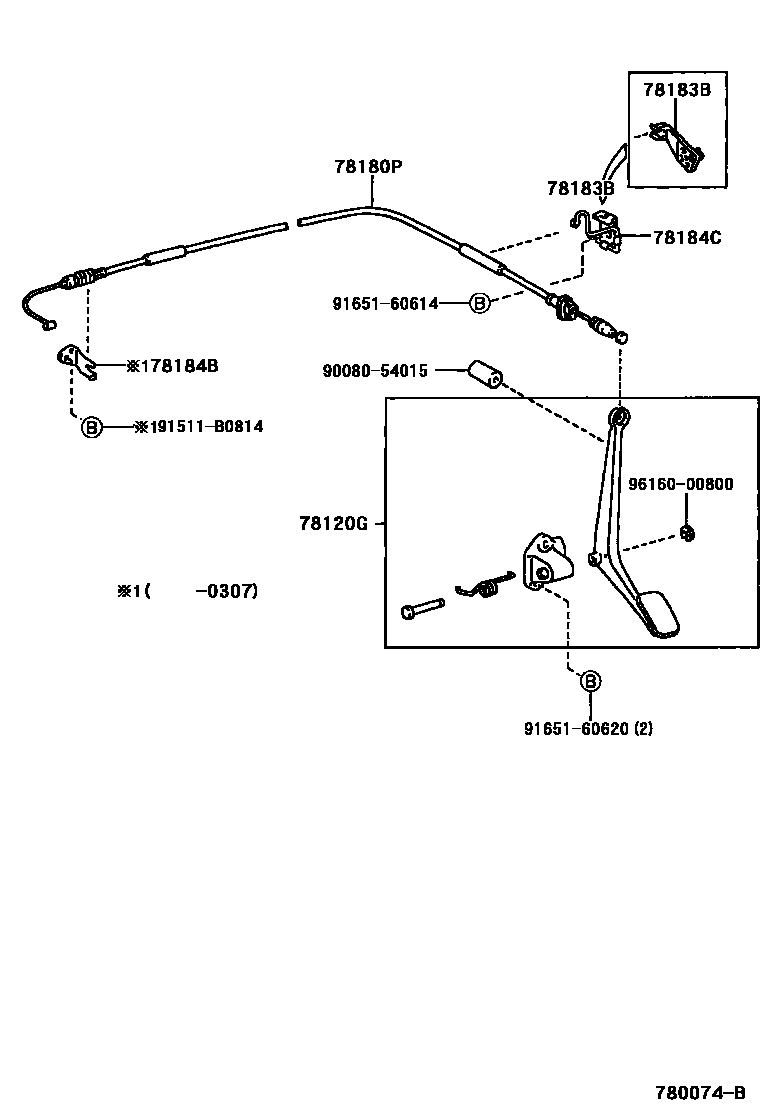

Parts diagram

78120GROD ASSY, ACCELERATOR PEDAL

main78120-16140i199612

main78120-16150i199612

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-0A010i199612-199903

main78180-0A030i199903

main78180-0A040i199904

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12160i199612-199910

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12280i199612-200307

78184CBRACKET, ACCELERATOR CONTROL CABLE

main78184-16080i199910

9008054015

main90080-54015

91511B0814

main91511-B0814

9165160614

main91651-60614

9165160620

main91651-60620

9616000800

main96160-00800

10 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota SOLUNA

This section contains 10 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota SOLUNA. Key components include: ROD ASSY, ACCELERATOR PEDAL, CABLE ASSY, ACCELERATOR CONTROL, CLAMP, ACCELERATOR CONTROL CABLE, BRACKET, ACCELERATOR CONTROL CABLE.
