Toyota SOLARA — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-AA050iACV30,MCV31..5F,5FC200307-200605

85160LINK ASSY, WINDSHIELD WIPER

main85150-AA050iACV30..4FC200307-200503

85192COVER, WINDSHIELD WIPER ARM

main85292-AA020×2iACV30,MCV31..CP200605-200808

85211BARM, FRONT WIPER, RH

main85211-AA060iACV30..4FC200307-200503

85212ABLADE, FR WIPER, RH

main85212-0C011iMCV31..CVT200605

sub85212-0C012

main85212-AA080iACV30,MCV31200307-200401

85214ARUBBER, WIPER, RH

main85214-02150iACV30,MCV31200307-200405

main85214-0C011iACV30..4FC200405-200503

sub85214-0C012

85214BRUBBER, WIPER, LH

main85214-02150iMCV31..CVT200605

main85214-0C011iMCV31;ACV30..4FC,5F200401-200405

sub85214-0C012

main85214-AA110iACV30,MCV31200307-200401

85221BARM, FRONT WIPER, LH

main85221-AA060iACV30..4FC200307-200503

85222ABLADE, FR WIPER, LH

main85222-AA070iACV30..4FC200307-200503

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-AA030iACV30,MCV31200307-200605

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-08020iACV30,MCV31200307-200605

9008011432

main90080-11432

90182A0004

main90182-A0004

9338516014

main93385-16014

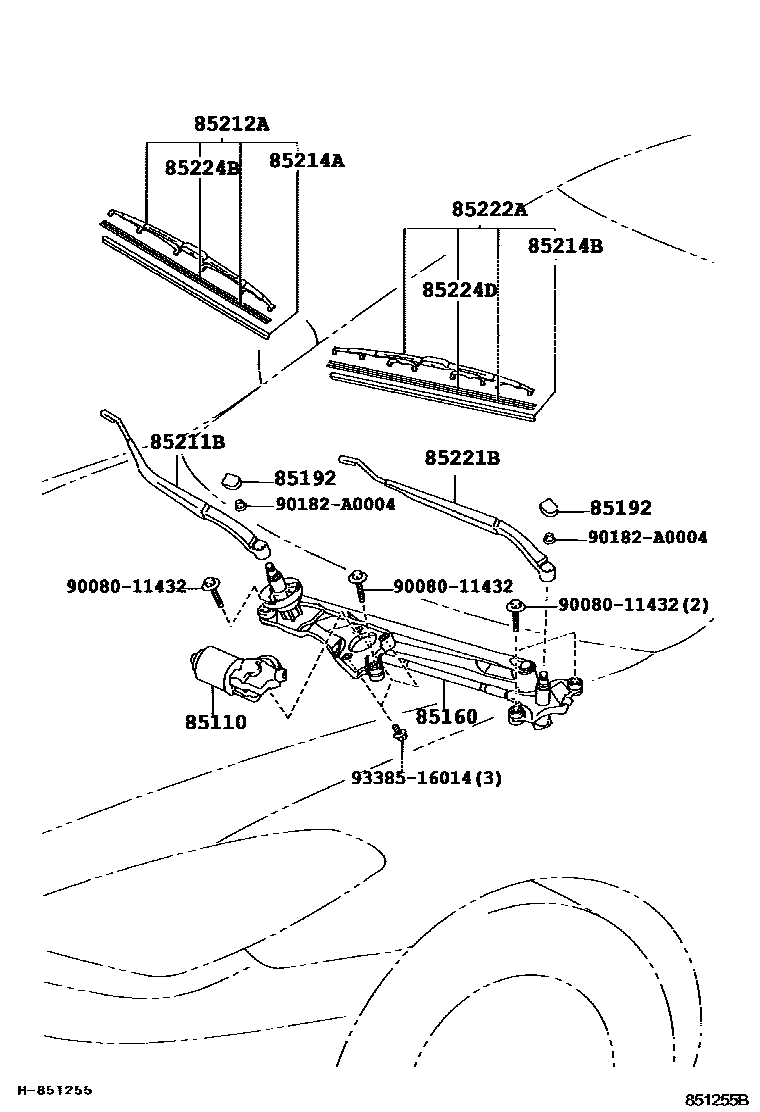

14 parts on this diagram · 1 diagram in section
