Toyota SOLARA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-AA050×2iACV30,MCV31..5F,5FC200307-200605

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-12340iACV30,MCV31..CP200605-200808

main85330-AA010iACV30,MCV31200307-200604

85319DPACKING, FRONT WASHER

main85319-AA020iMCV31..CVT200605

85330JAR ASSY, WINDSHIELD WASHER

main85315-AA040iACV30,MCV31..5F,5FC200307-200605

85330ABUSH, WINDSHIELD WASHER JAR

main90068-32002iACV30..4FC200307-200503

85332CAP, WINDSHIELD WASHER JAR

main85316-16070iACV30,MCV31..CP200605-200808

main85316-AA020iACV30,MCV31200307-200605

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85377-06020iMCV31..CVT200605

sub85375-04080

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85378-AA010iACV30..4FC200307-200503

sub85378-0E010

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-AA020iACV30..4FC200307-200503

sub85376-06120

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85374-AA070iACV30..4FC200307-200503

L=1855

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85374-AA040iACV30..4FC200307-200503

L=345

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main85374-AA050iACV30..4FC200307-200503

L=520

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main85374-AA020×2iACV30,MCV31200307-200605

sub85374-AC010

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040iACV30..4FC200307-200503

8537106010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-06010

9006804015

main90068-04015

9008011169

main90080-11169

9008017186

main90080-17186

9008446032

main90084-46032

9095901116

main90959-01116

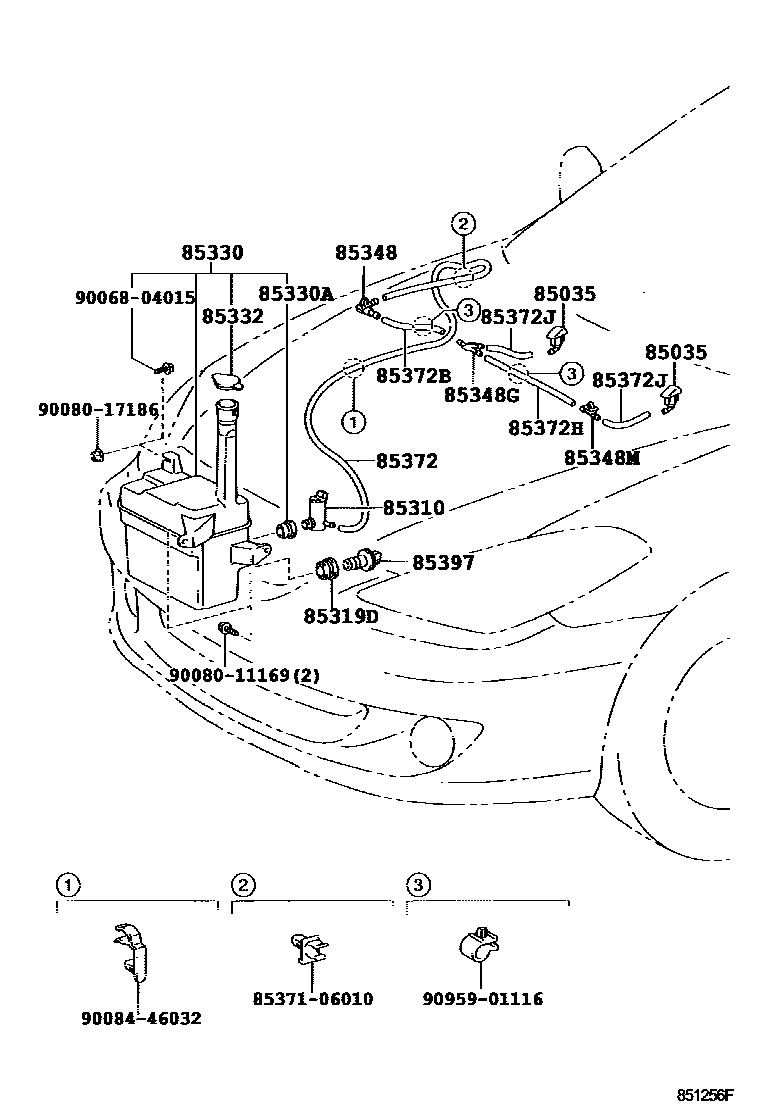

20 parts on this diagram · 1 diagram in section
