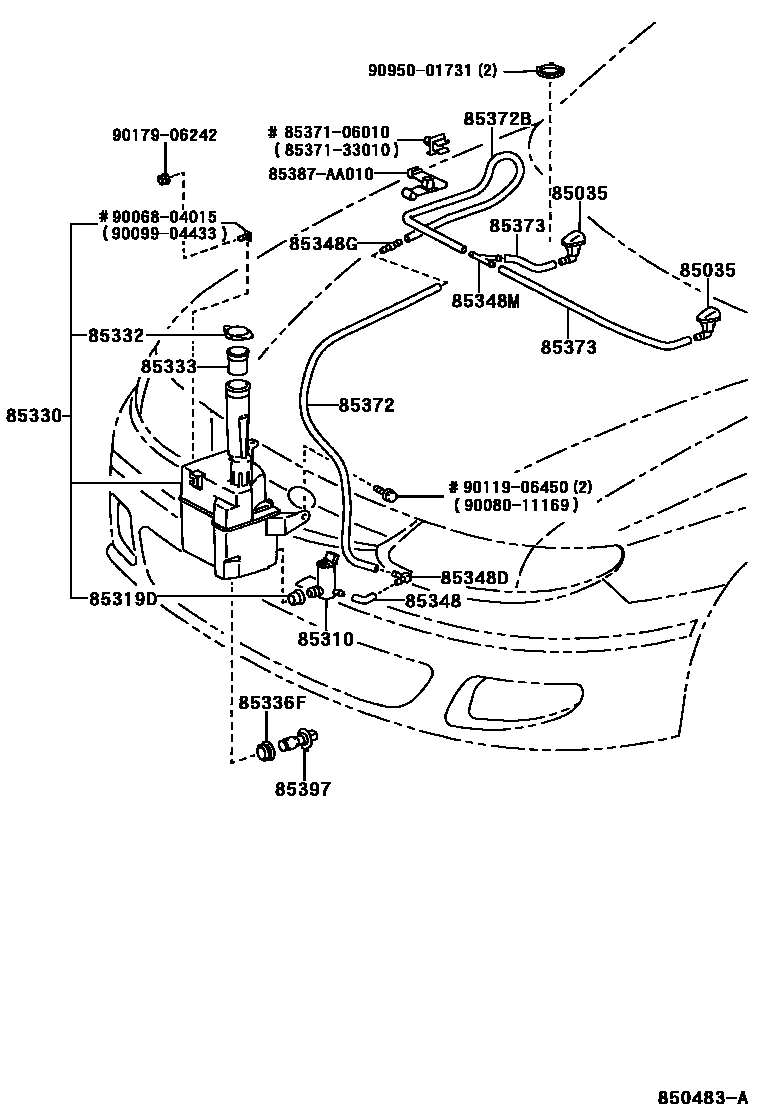

Toyota SOLARA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-06010×2iACV20,MCV20,SXV20..USA199806-200207

main85381-33050×2iACV20,MCV20,SXV20..CND199806-200207

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-AA010iACV20,MCV20,SXV20199806-200207

sub85330-12340

85319DPACKING, FRONT WASHER

main90068-32002iACV20,MCV20,SXV20199806-200207

85330JAR ASSY, WINDSHIELD WASHER

main85315-06080iACV20,MCV20,SXV20199806-200207

85332CAP, WINDSHIELD WASHER JAR

main85316-AA020iACV20,MCV20,SXV20199806-200207

85333FILTER, WINDSHIELD WASHER JAR

main85312-AA020iACV20,MCV20,SXV20199806-200207

85336FPACKING, WINDSHIELD WASHER JAR

main85319-AA020iACV20,MCV20,SXV20199806-200207

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-24100iACV20,MCV20200207-200212

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-16192iACV20,MCV20,SXV20199806-200207

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-AA010iACV20,MCV20,SXV20199806-200207

sub85334-22470

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85378-AA010iACV20,MCV20,SXV20199806-200207

sub85378-0E010

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85374-06100iACV20,MCV20,SXV20199806-200207

L=1300

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85374-06090iACV20,MCV20,SXV20199806-200207

L=780

sub85374-08050

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85374-06110iACV20,MCV20,SXV20199806-200207

L=670

main85374-06120iACV20,MCV20,SXV20199806-200207

L=220

sub85374-08020

85397SWITCH ASSY,LEVEL WARNING

main85397-AA020iACV20,MCV20,SXV20199806-200207

sub85397-AA040

8537106010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-06010

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

85387AA010CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-AA010

9006804015

main90068-04015

9008011169

main90080-11169

9009904433

main90099-04433

9011906450

main90119-06450

9017906242

main90179-06242

9095001731

main90950-01731

24 parts on this diagram · 1 diagram in section
