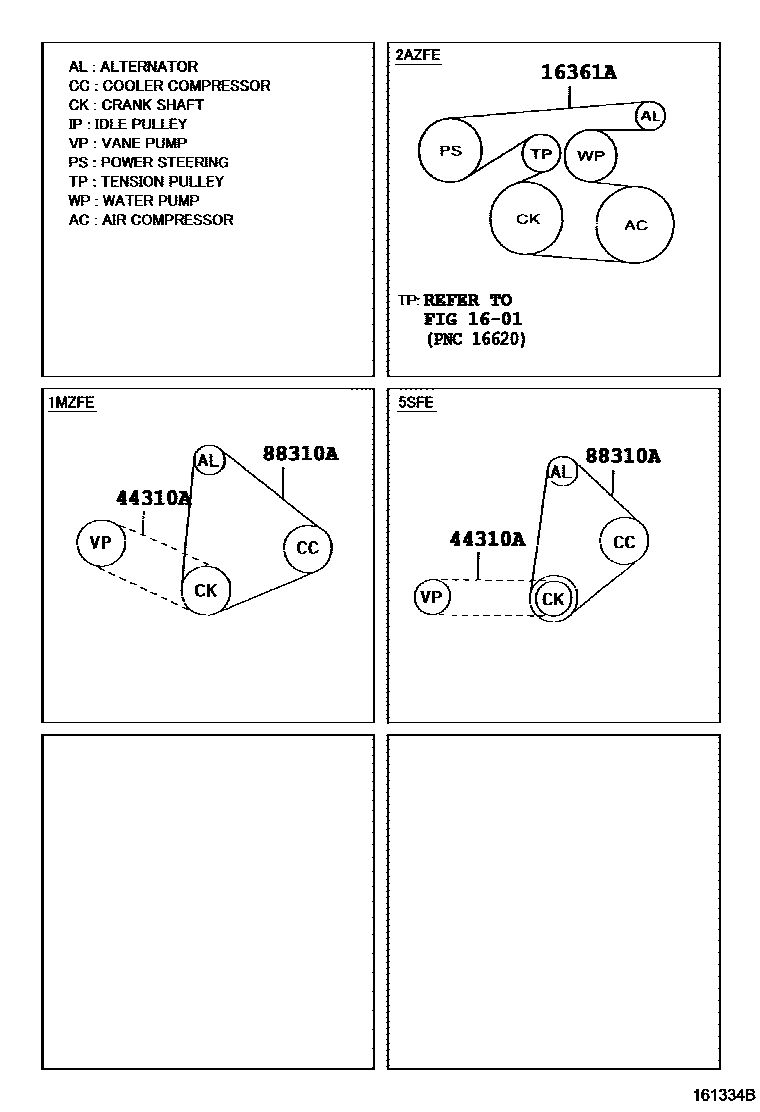

Toyota SOLARA — V-BELT

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91205i200107-200212

(L)

main90916-02502i200107-200212

(J)

44310ABELT, V(FOR VANE PUMP)

main90080-91054i199806-200107

L=750

main90080-91088i199806-200207

L=878

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90080-91087i199806-200207

L=1035,(L)

main90080-91122i199806-200107

L=1100,(L)

main90916-02401i199806-200207

L=1035,(J)

main99365-21100i199806-200107

L=1100,(J)

4 parts on this diagram · 1 diagram in section

V-BELT for Toyota SOLARA

This section contains 4 genuine Toyota parts for the V-BELT system of the Toyota SOLARA. Key components include: WATER PUMP, BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR VANE PUMP), BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
