Toyota SOLARA — SWITCH & RELAY & COMPUTER

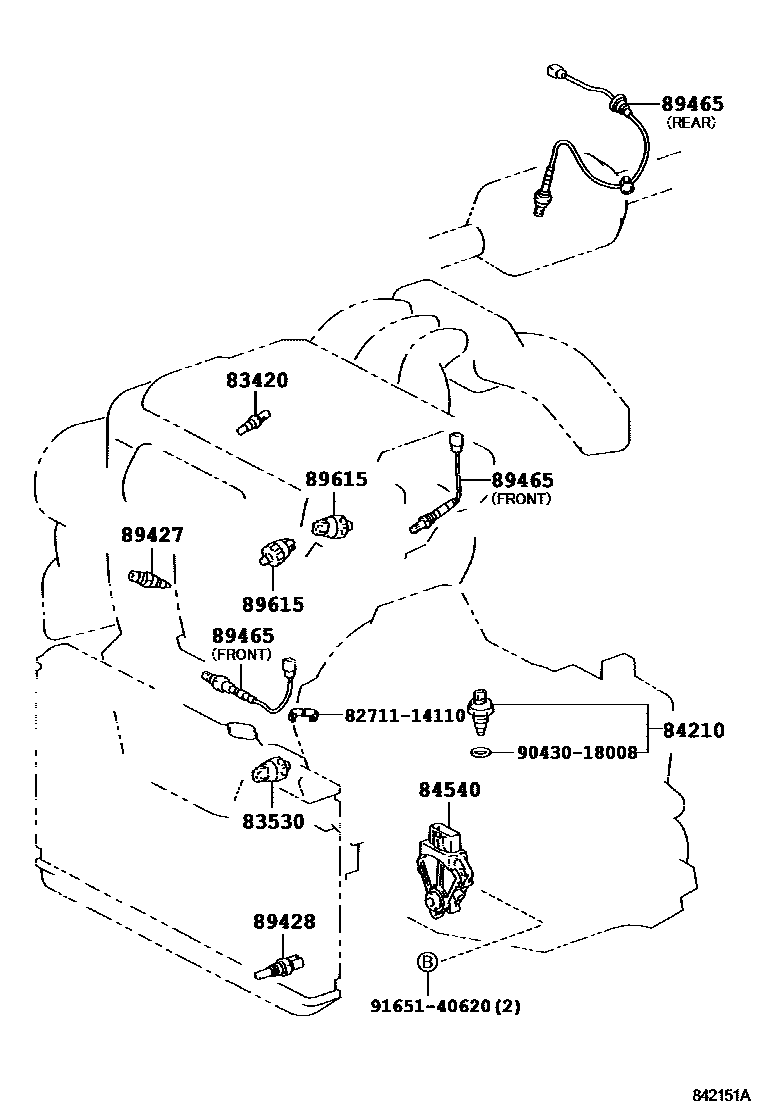

Parts diagram
83420GAGE ASSY, WATER TEMPERATURE SENDER
main83420-20040i199806-200107
(J)
main83420-AA010i200107-200212
(L)
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
main83530-28020i199806-200212
DENSO
main83530-AA011i199806-200212
FASCO
sub83530-0E010
84210SWITCH ASSY, BACK-UP LAMP
main84210-12040i199806-200207
sub84210-52050
84540SWITCH ASSY, NEUTRAL START
main84540-06010i200107-200212
main84540-20200i199806-200212
main84540-20220i199806-200107
89427SWITCH, TEMPERATURE DETECT
main89428-33020i199806-200207
89428SWITCH, TEMPERATURE DETECT, NO.2
main89428-33010i199806-200107
main89428-41010i199806-200207
89465SENSOR, OXYGEN
main89465-06010i199806-200008
FRONT
main89465-06020i199806-199908
REAR
main89465-06030×2i199806-200008
PART NUMBER LABEL=89465-06030,FRONT
main89465-06040i199908-200008
REAR
sub89465-06090
main89465-06050i200107-200212
main89465-06080×2i200103-200204
(L),FRONT
main89465-06100×2i200204-200207
(L),FRONT
main89465-33180×2i200002-200008
PART NUMBER LABEL=89465-33180
main89465-33310×2i200103-200201
(J),FRONT
main89465-33350×2i200201-200207
(J),FRONT
main89467-33030i200008-200212
CALIFORNIA SPEC,FRONT LH
main89467-41010i199806-199905
CALIFORNIA SPEC,FRONT LH
main89467-41011i199905-200008
CALIFORNIA SPEC,FRONT LH
main89467-41020i199806-199905
CALIFORNIA SPEC,FRONT RH
main89467-41021i199905-200008
CALIFORNIA SPEC,FRONT RH
main89467-41030i200008-200212
CALIFORNIA SPEC,FRONT RH
89615SENSOR, KNOCK CONTROL
main89615-12040×2i199806-199908
main89615-12090×2i200207-200212
main89615-20030i199806-199910
TOYOTA
main89615-30080i200107-200212
MATSUSHITA
main89615-32030i199910-200212
DENSO
main89615-32040i199910-200107
TOYOTA
main89615-33020i199806-199910
DENSO
8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14110
9043018008
main90430-18008
9165140620
main91651-40620

11 parts on this diagram · 9 diagrams in section
