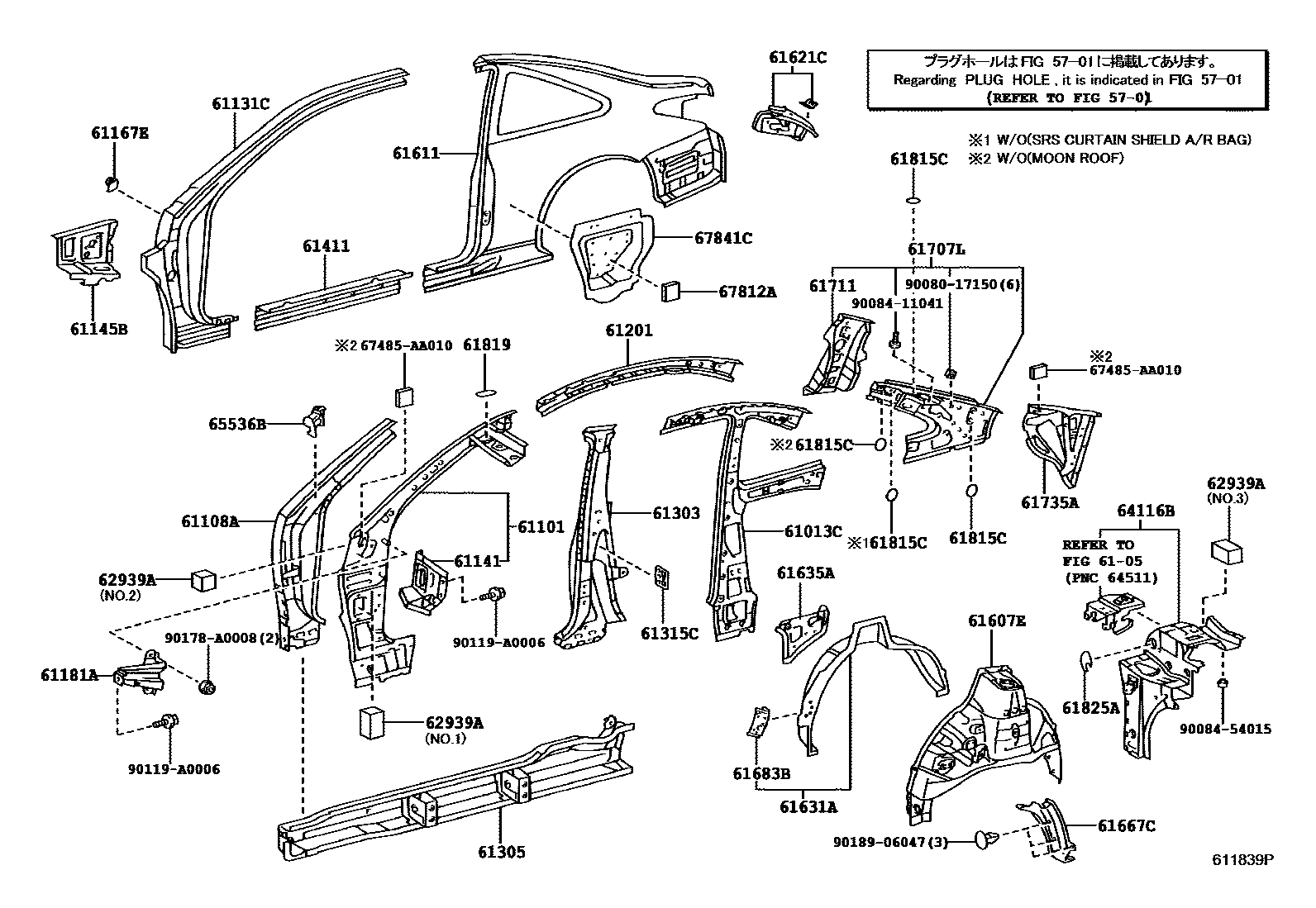

Toyota SOLARA — SIDE MEMBER

5701HOLE PLUG

→ Go to FIG 57-01

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-AA010i200307-200503

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-AA030i200307-200605

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-AA030i200605-200808

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-33050i200402-200605

61131CPILLAR, FRONT BODY, OUTER RH

main61131-AA040i200307-200503

61141GUSSET, FRONT PILLAR UPPER CORNER, RH

main61141-AA020i200307-200503

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-AA030i200307-200503

61167EBRACKET, NO.6 PILLAR OUTER

main61168-06010i200307-200503

61181ABRACKET, INSTRUMENT SIDE, RH

main61181-AA010i200307-200503

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-AA010i200307-200605

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-AA902i200605-200808

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-AA030i200307-200503

main61305-AA900i200605-200808

61315CRETAINER, DOOR LOCK STRIKER, RH

main61315-AA010i200605-200808

61411PANEL, ROCKER, OUTER RH

main61411-06030i200605

main61411-AA010i200605-200808

61607EPANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-06070i200605

main61607-AA902i200307-200503

61611PANEL, QUARTER, RH

main61611-AA060i200307-200503

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61697-AA904i200605

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61605-06901i200402-200605

main61631-AA901i200605-200808

61635ABRACE, QUARTER WHEEL HOUSE, RH

main61635-AA020i200605-200808

61667CSEAL, QAURTER PANEL, NO.1

main61667-AA030i200411-200501

61683BBRACKET, REAR WHEEL OPENING, NO.1 RH

main61683-AA010i200307-200605

61707LPANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH

main61707-AA900i200605-200808

61711PANEL, ROOF SIDE, OUTER RH

main61711-AA040i200605-200808

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-33070i200605

main61735-AA020i200307-200605

61815CCOVER, ROOF SIDE, INNER UPPER

main61815-AC030×2i200402-200605

61819COVER, ROOF SIDE, INNER LOWER

main61817-AA010×2i200307-200503

61825APLATE, NOISE CONTROL, NO.2

main61825-AA020×2i200307-200503

62939ASILENCER, QUARTER VENT

main62939-06010×2i200307-200503

NO.1

main62939-32030×2i200605

NO.2

main62939-AC010×2i200605-200808

NO.3

64116BREINFORCEMENT, UPPER BACK, RH

main64201-AA903i200307-200605

65536BPATCH, SIDE PANEL REINFORCEMENT, RH

main65536-AA020i200307-200503

67812APAD, QUARTER PANEL SILENCER

main67812-AA040×2i200307-200503

67841CCOVER, QUARTER SERVICE HOLE, RH

main67841-06050i200402-200605

main67841-AA040i200307-200503

67485AA010SHEET, FRONT DOOR GLASS FRONT INSIDE, RH

main67485-AA010

9008017150

main90080-17150

9008411041

main90084-11041

9008454015

main90084-54015

90119A0006

main90119-A0006

90178A0008

main90178-A0008

9018906047

main90189-06047

41 parts on this diagram · 4 diagrams in section

SIDE MEMBER for Toyota SOLARA

This section contains 114 genuine Toyota parts for the SIDE MEMBER system of the Toyota SOLARA. Key components include: REAR BUMPER & BUMPER STAY, BRACKET, FRONT FENDER, REAR RH, BRACKET, FRONT FENDER, REAR LH, HOLE PLUG, REINFORCEMENT SUB-ASSY, FLOOR SIDE, INNER RH.
