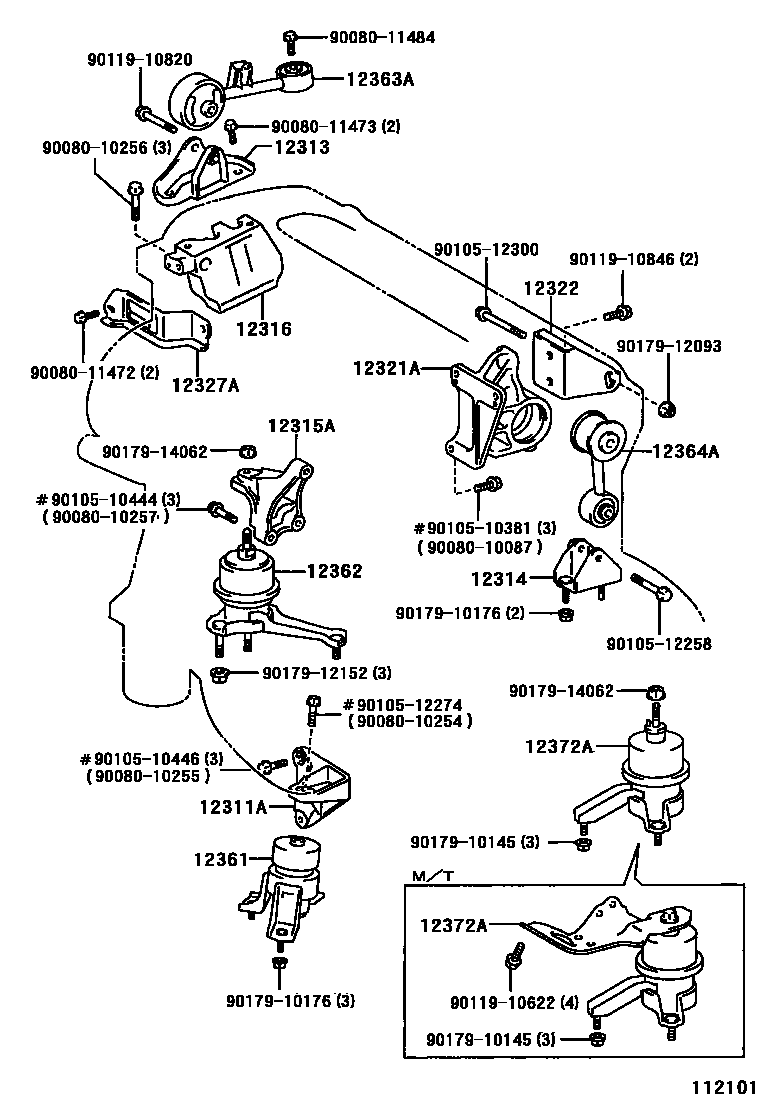

Toyota SOLARA — MOUNTING

0001 1 0002 1 0003 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0A020i1MZFE..MCV20..CP200207-200212

main12311-0A040i5SFE..SXV20..CP..ATM199812-200107

main12311-0A050i2AZFE..ACV20200107-200212

sub12311-20060

main12311-20040i1MZFE..MCV20..CVT200002-200212

main12311-74220i5SFE..SXV20..MTM199806-200107

main12311-74230i5SFE..SXV20..CVT200002-200107

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-03020i5SFE..SXV20..MTM199806-200107

main12313-03040i5SFE..SXV20..CP..ATM199806-200107

main12313-0A010i1MZFE..MCV20..MTM199806-200207

main12313-0A020i1MZFE..MCV20..CP..ATM199806-200212

main12313-20050i1MZFE..MCV20..CVT200002-200212

main12313-28040i2AZFE..ACV20200107-200212

main12313-74080i5SFE..SXV20..CVT200002-200107

12314BRACKET, ENGINE LATERAL CONTROL ROD

main12314-28020i2AZFE..ACV20..MTM200107-200212

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0A010i1MZFE..MCV20200207-200212

main12315-20020i1MZFE..MCV20..MTM199806-200107

(J)

main12315-28030i2AZFE..ACV20200107-200212

12316BRACKET, ENGINE MOUNTING, NO.2 RH

main12316-0A010i1MZFE..MCV20199806-200107

main12316-0A022i1MZFE..MCV20200107-200207

sub12316-20020

main12316-0H010i2AZFE..ACV20200107-200212

sub12316-0H050

main12316-74130i5SFE..SXV20199806-200107

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-0A020i1MZFE..MCV20..CP..ATM199903-200212

main12321-20020i1MZFE..MCV20..ATM199806-199903

main12321-20030i1MZFE..MCV20..MTM199806-200207

main12321-28020i2AZFE..ACV20..MTM200107-200212

main12321-74250i5SFE..SXV20..MTM199806-200107

main12321-74380i5SFE..SXV20..ATM199806-200107

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-0A010i1MZFE..MCV20200207-200212

(L)

main12322-20020i1MZFE..MCV20200207-200212

(J)

main12322-28040i2AZFE..ACV20..MTM200107-200212

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-0H010i2AZFE..ACV20200107-200212

main12327-20020i1MZFE..MCV20..MTM199806-200207

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-0A020i1MZFE..MCV20..MTM199806-200207

main12361-0A030i1MZFE..MCV20..CP..ATM199806-200212

main12361-0H040i2AZFE..ACV20200107-200207

main12361-0H070i2AZFE..ACV20200207-200212

main12361-20080i1MZFE..MCV20..CVT200002-200212

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-28110i2AZFE..ACV20200107-200212

12363INSULATOR, ENGINE MOUNTING, CENTER

main12363-03070i5SFE..SXV20..CP..ATM199806-200107

main12363-03080i5SFE..SXV20..MTM199806-200107

main12363-74170i5SFE..SXV20..CVT200002-200107

12363AROD, ENGINE MOVING CONTROL

main12363-0A020i1MZFE..MCV20..MTM199806-200207

main12363-0A030i1MZFE..MCV20..CP..ATM199806-200212

main12363-20050i1MZFE..MCV20..CVT200002-200212

main12363-28090i2AZFE..ACV20200107-200212

12364AROD, ENGINE LATERAL CONTROL

main12364-28020i2AZFE..ACV20..MTM200107-200212

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12306-28080i2AZFE..ACV20..MTM200107-200212

main12372-03030i5SFE..SXV20..MTM199806-200107

main12372-03080i5SFE..SXV20..CP..ATM199806-200107

main12372-0A020i1MZFE..MCV20..CP..ATM199806-200212

main12372-20050i1MZFE..MCV20..CVT200002-200212

main12372-28060i2AZFE..ACV20..ATM200107-200212

main12372-62070i1MZFE..MCV20..MTM199806-200207

main12372-74670i5SFE..SXV20..CVT200002-200107

9008010087

main90080-10087

9008010254

main90080-10254

9008010255

main90080-10255

9008010256

main90080-10256

9008010257

main90080-10257

9008011472

main90080-11472

9008011473

main90080-11473

9008011484

main90080-11484

9010510381

main90105-10381

9010510444

main90105-10444

9010510446

main90105-10446

9010512258

main90105-12258

9010512274

main90105-12274

9010512300

main90105-12300

9011910622

main90119-10622

9011910820

main90119-10820

9011910846

main90119-10846

9017910145

main90179-10145

9017910176

main90179-10176

9017912093

main90179-12093

9017912152

main90179-12152

9017914062

main90179-14062

36 parts on this diagram · 3 diagrams in section
