Toyota SOLARA — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-06090supersedes 87810-AA011iMCV31..CVT..SLE200605

main87810-AA011iACV30,MCV31..SE200307-200605

main87810-AA020iACV30,MCV31..5FC..SE200505-200508

CANADA SPEC

main87810-AC090iACV30,MCV31..5FC..SE200508-200605

CANADA SPEC

sub87810-AC091

main87810-06050iACV30,MCV31..5FC..SE200605-200707

CANADA SPEC

main87810-06051iACV30,MCV31..5FC..SE200708-200808

CANADA SPEC

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-06030iACV30,MCV31..CP..5FC..SE200605-200808

AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER

main87818-AC010iACV30,MCV31..5FC..SLE200307-200605

CANADA SPEC

main87818-06020iACV30,MCV31..5FC..SE200605-200808

CANADA SPEC

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-AA110iACV30,MCV31..CP..SE200605-200808

main87931-AA120supersedes 87931-AA110iACV30..SLE200307-200503

CANADA SPEC

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-AA110iACV30,MCV31..(5F,5FC)..SE200307-200605

main87961-AA120supersedes 87961-AA110iACV30,MCV31..5FC..SLE200307-200605

CANADA SPEC

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-AA110-A0iACV30,MCV31..(5F,5FC)..SE200307-200605

WHITE PEARL CS.,071

sub87910-AA906

main87910-AA110-A1iACV30,MCV31..CP..SE200605-200808

WHITE PEARL CS.,070

sub87910-AA906

main87910-AA110-B0iACV30,MCV31..(5F,5FC)..SE200307-200605

SILVER ME.,1C8

sub87910-AA906

main87910-AA110-B1iACV30,MCV31..SE200605-200707

SILVER ME.,1D4

sub87910-AA906

main87910-AA110-B2iACV30,MCV31..CP..SE200605-200808

GRAY ME.,1G3

sub87910-AA906

main87910-AA110-B3iACV30,MCV31..CP..SE200707-200808

SILVER ME.,1F7

sub87910-AA906

main87910-AA110-C0iACV30,MCV31..(5F,5FC)..SE200307-200605

BLACK,202

sub87910-AA906

main87910-AA110-D0iACV30,MCV31..CP..SE200605-200808

SUPER RED 5,3P0

sub87910-AA906

main87910-AA110-E0iACV30,MCV31..(5F,5FC)..SE200307-200605

BEIGE M. M.,4Q2

sub87910-AA906

main87910-AA110-J0iACV30,MCV31..(5F,5FC)..SE200307-200605

BLUE ME.,8Q5

sub87910-AA906

main87910-AA110-J1iACV30,MCV31..(5F,5FC)..SE200307-200605

DK.BLUE M.M.,8R9

sub87910-AA906

main87910-AA110-J2iACV30,MCV31..CP..SE200612-200808

BLUE ME.,8T7

sub87910-AA906

main87910-AA120-A0supersedes 87910-AA110-A0iACV30,MCV31..5FC..SLE200307-200605

WHITE PEARL CS.,071

sub87910-AA907

main87910-AA120-A1iACV30,MCV31..5FC..SE200605-200808

CANADA SPEC,WHITE PEARL CS.,070

sub87910-AA907

main87910-AA120-B0supersedes 87910-AA110-B0iACV30..SLE200307-200503

SILVER ME.,1C8

sub87910-AA907

main87910-AA120-B1iACV30,MCV31..5FC..SE200605-200707

SILVER ME.,1D4

sub87910-AA907

main87910-AA120-B2iMCV31..CVT..SLE200605

GRAY ME.,1G3

sub87910-AA907

main87910-AA120-B3iACV30,MCV31..5FC..SE200707-200808

SILVER ME.,1F7

sub87910-AA907

main87910-AA120-C0supersedes 87910-AA110-C0iACV30..SLE200307-200503

BLACK,202

sub87910-AA907

main87910-AA120-D0supersedes 87910-AA110-D0iACV30,MCV31..5FC..SLE200307-200605

CANADA SPEC,SUPER RED 5,3P0

sub87910-AA907

main87910-AA120-E0supersedes 87910-AA110-E0iACV30,MCV31..5FC..SLE200307-200605

BEIGE M. M.,4Q2

sub87910-AA907

main87910-AA120-J0supersedes 87910-AA110-J0iACV30..SLE200307-200503

CANADA SPEC,BLUE ME.,8Q5

sub87910-AA907

main87910-AA120-J1supersedes 87910-AA110-J1iACV30,MCV31..5FC..SE200605-200612

CANADA SPEC,DK.BLUE M.M.,8R9

sub87910-AA907

main87910-AA120-J2iMCV31..CVT..SLE200612-200810

BLUE ME.,8T7

sub87910-AA907

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-AA110-A0iACV30,MCV31..(5F,5FC)..SE200307-200605

WHITE PEARL CS.,071

sub87940-AA906

main87940-AA110-A1iMCV31..CVT..SE200605

WHITE PEARL CS.,070

sub87940-AA906

main87940-AA110-B0iACV30,MCV31..(5F,5FC)..SE200307-200605

SILVER ME.,1C8

sub87940-AA906

main87940-AA110-B1iACV30,MCV31..SE200605-200707

SILVER ME.,1D4

sub87940-AA906

main87940-AA110-B2iACV30,MCV31..CP..SE200605-200808

GRAY ME.,1G3

sub87940-AA906

main87940-AA110-B3iACV30,MCV31..CP..SE200707-200808

SILVER ME.,1F7

sub87940-AA906

main87940-AA110-C0iACV30,MCV31..CP..SE200605-200808

BLACK,202

sub87940-AA906

main87940-AA110-D0iACV30,MCV31..CP..SE200605-200808

SUPER RED 5,3P0

sub87940-AA906

main87940-AA110-E0iACV30,MCV31..(5F,5FC)..SE200307-200605

BEIGE M. M.,4Q2

sub87940-AA906

main87940-AA110-J0iMCV31..CVT..SE200605-200812

BLUE ME.,8Q5

sub87940-AA906

main87940-AA110-J1iACV30,MCV31..(5F,5FC)..SE200307-200605

DK.BLUE M.M.,8R9

sub87940-AA906

main87940-AA110-J2iMCV31..CVT..SE200612-200810

BLUE ME.,8T7

sub87940-AA906

main87940-AA120-A0supersedes 87940-AA110-A0iACV30..SLE200307-200503

WHITE PEARL CS.,071

sub87940-AA907

main87940-AA120-A1iMCV31..CVT..SLE200605

WHITE PEARL CS.,070

sub87940-AA907

main87940-AA120-B0supersedes 87940-AA110-B0iACV30..SLE200307-200503

SILVER ME.,1C8

sub87940-AA907

main87940-AA120-B1iACV30,MCV31..5FC..SE200605-200707

SILVER ME.,1D4

sub87940-AA907

main87940-AA120-B2iMCV31..CVT..SLE200605

GRAY ME.,1G3

sub87940-AA907

main87940-AA120-B3iMCV31..CVT..SLE200707

SILVER ME.,1F7

sub87940-AA907

main87940-AA120-C0supersedes 87940-AA110-C0iMCV31..CVT..SLE200605

BLACK,202

sub87940-AA907

main87940-AA120-D0supersedes 87940-AA110-D0iACV30,MCV31..5FC..SE200605-200808

CANADA SPEC,SUPER RED 5,3P0

sub87940-AA907

main87940-AA120-E0supersedes 87940-AA110-E0iACV30,MCV31..5FC..SLE200307-200605

BEIGE M. M.,4Q2

sub87940-AA907

main87940-AA120-J0supersedes 87940-AA110-J0iACV30..SLE200307-200503

CANADA SPEC,BLUE ME.,8Q5

sub87940-AA907

main87940-AA120-J1supersedes 87940-AA110-J1iACV30,MCV31..5FC..SLE200307-200605

CANADA SPEC,DK.BLUE M.M.,8R9

sub87940-AA907

main87940-AA120-J2iACV30,MCV31..5FC..SE200612-200808

BLUE ME.,8T7

sub87940-AA907

90178A0007

main90178-A0007

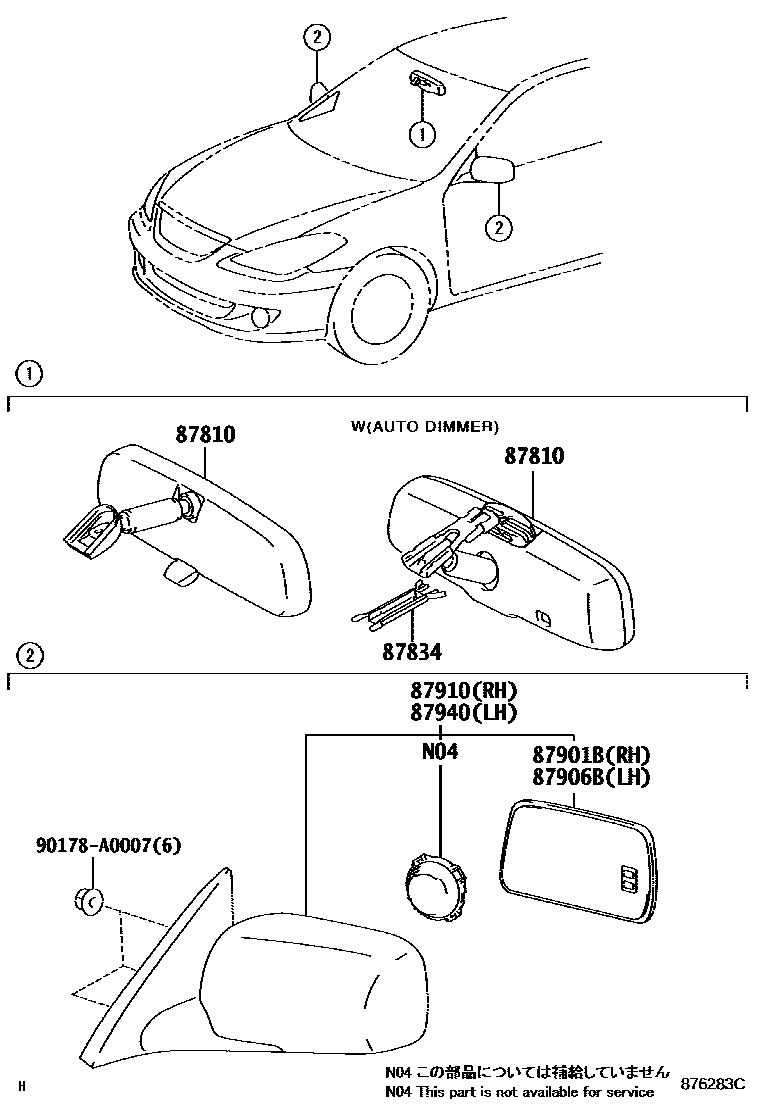

7 parts on this diagram · 1 diagram in section
