Toyota SOLARA — METER

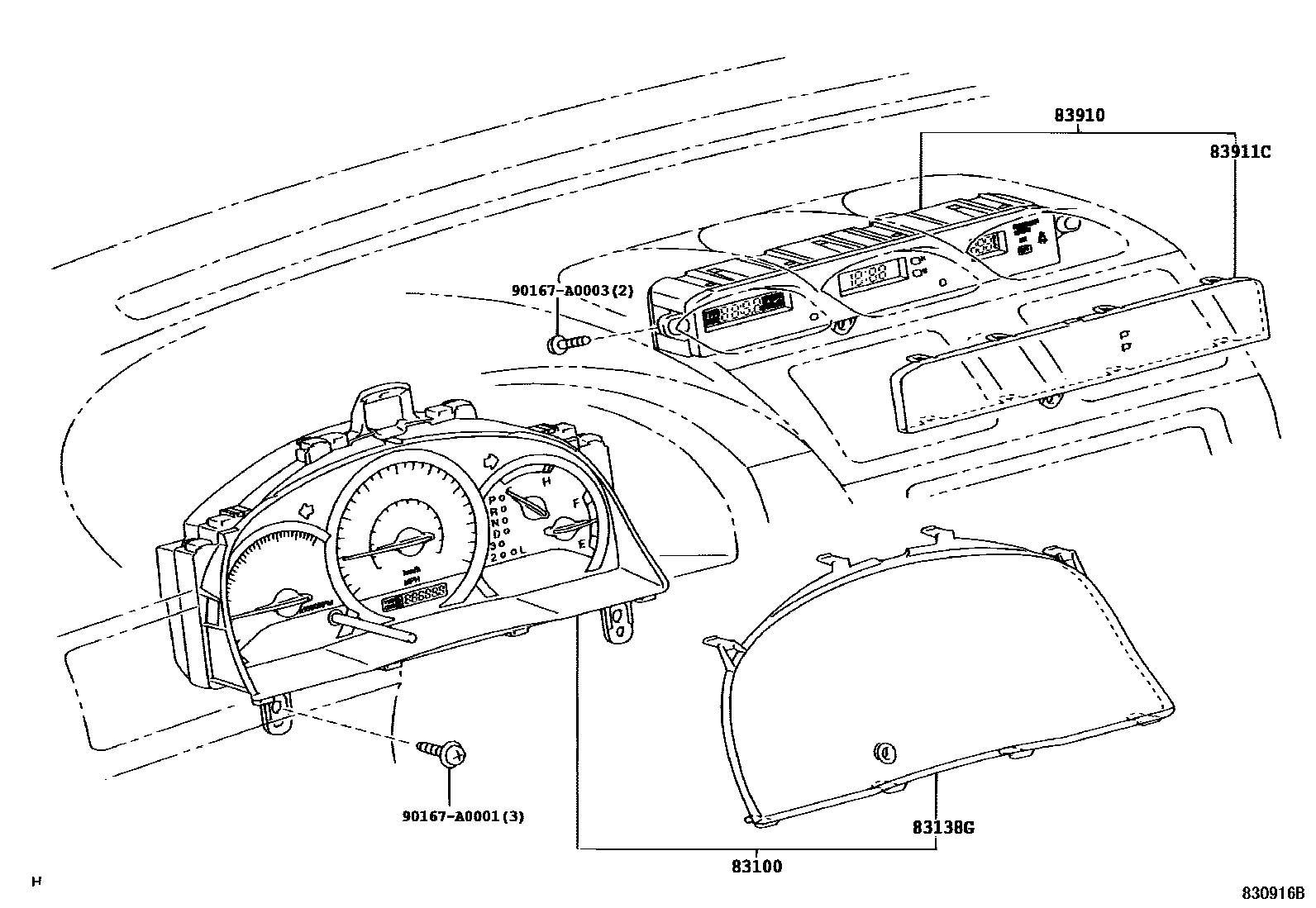

Parts diagram
83100METER ASSY, COMBINATION
main83800-06T40i200707-200808
main83800-06P10supersedes 83800-06Q10i200605-200707
CANADA SPEC&SPORT PACKAGE(HID HEAD LAMP)
main83800-06P20supersedes 83800-06Q20i200605-200707
CANADA SPEC&SPORT PACKAGE(HID HEAD LAMP)
main83800-06P30supersedes 83800-06Q10i200605-200707
CANADA SPEC
main83800-06P40supersedes 83800-06Q20i200605-200707
CANADA SPEC
main83800-06P50supersedes 83800-06Q30i200605-200707
CANADA SPEC
main83800-06P60supersedes 83800-06Q40i200605-200707
CANADA SPEC
main83800-06P70supersedes 83800-06P80i200605-200707
SPORT PACKAGE(HID HEAD LAMP)
main83800-06P90supersedes 83800-06Q10i200605-200707
SPORT PACKAGE(HID HEAD LAMP)
main83800-06Q00supersedes 83800-06Q20i200605-200707
SPORT PACKAGE(HID HEAD LAMP)
main83800-06S70supersedes 83800-06S80i200707-200808
SPORT PACKAGE(HID HEAD LAMP)
main83800-06S90supersedes 83800-06T10i200707-200808
SPORT PACKAGE(HID HEAD LAMP)
main83800-06T00supersedes 83800-06T20i200707
SPORT PACKAGE(HID HEAD LAMP)
main83800-06T50supersedes 83800-06T10i200707-200808
CANADA SPEC&SPORT PACKAGE(HID HEAD LAMP)
main83800-06T60i200707-200808
CANADA SPEC&SPORT PACKAGE(HID HEAD LAMP)
main83800-06T70supersedes 83800-06T10i200707-200808
CANADA SPEC
main83800-06T80i200707-200808
CANADA SPEC
main83800-06T90supersedes 83800-06T30i200707-200808
CANADA SPEC
main83800-06U00i200707-200808
CANADA SPEC
main83800-AA020supersedes 83800-AA010i200307-200605
SPORT PACKAGE
main83800-AA040i200307-200503
SPORT PACKAGE
main83800-AA060supersedes 83800-AA050i200307-200605
CANADA SPEC
main83800-AA080supersedes 83800-AA070i200307-200503
CANADA SPEC
main83800-AA090i200307-200503
CANADA SPEC&SPORT PACKAGE
main83800-AA110supersedes 83800-AA130i200408-200605
CANADA SPEC
main83800-AA140i200503-200605
CANADA SPEC&SPORT PACKAGE
main83800-AA150i200503-200605
SPORT PACKAGE
main83800-AA170supersedes 83800-AA160i200503-200605
CANADA SPEC
83138GGLASS, COMBINATION METER
main83852-06P70i200605
main83852-AA010i200307-200503
83910CLOCK ASSY
main83910-06190i200605-200808
main83910-AA030i200307-200308
main83910-AA031i200308-200407
main83910-AA032i200408-200605
83911CORNAMENT, CLOCK
main83911-AA010i200307-200503
90167A0001
main90167-A0001
90167A0003
main90167-A0003

6 parts on this diagram · 2 diagrams in section
