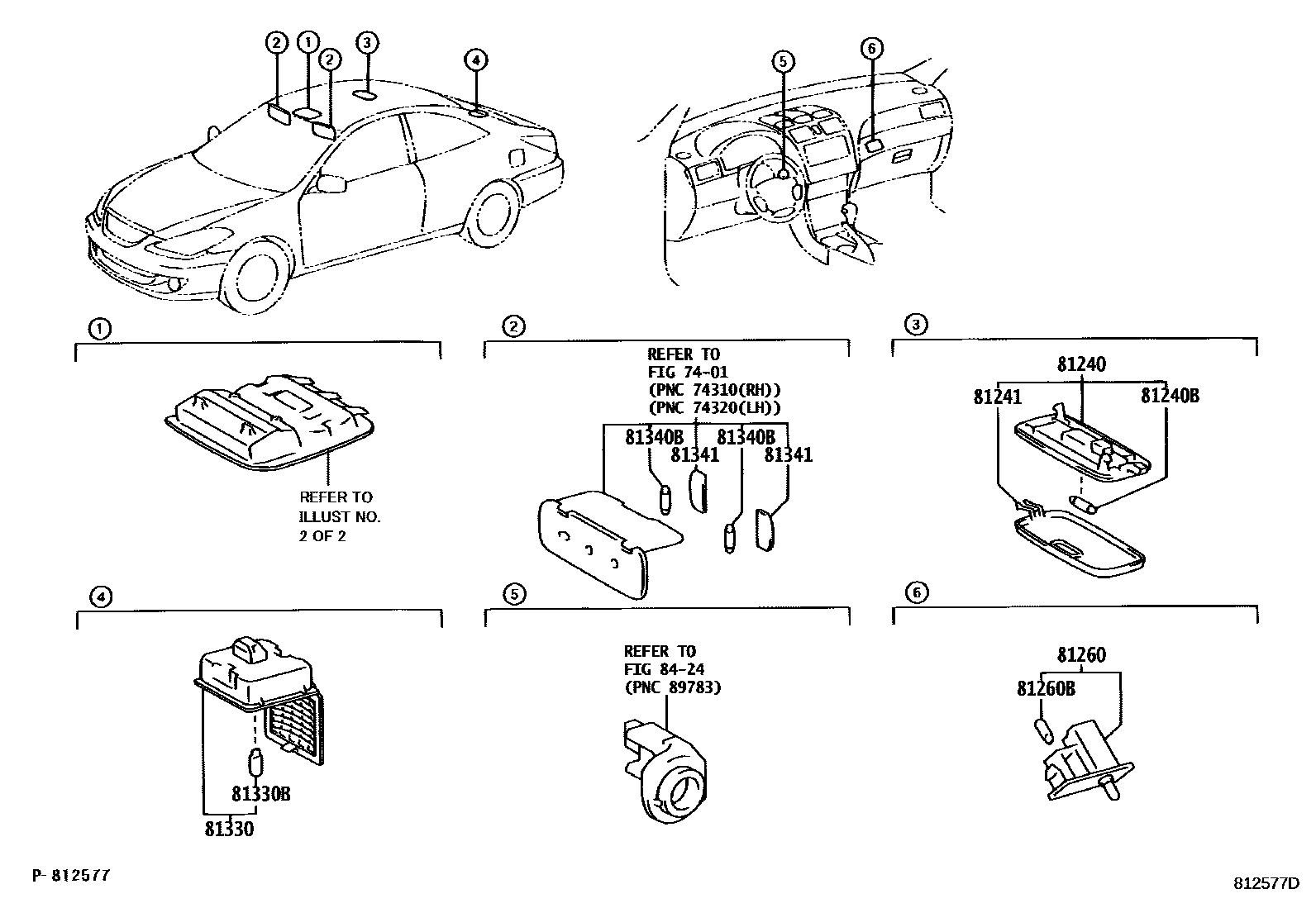

Toyota SOLARA — INTERIOR LAMP

7401ARMREST & VISOR

→ Go to FIG 74-01

81240LAMP ASSY, ROOM, NO.1

main81240-AA020-A0i200307-200605

IVORY,TRIM0#

main81240-AA020-B1i200307-200605

STONE,TRIM1#; STONE,TRIM10,11

81240BBULB, ROOM LAMP, NO.1

main90084-81003i200307-200503

12V 9W

81241LENS, ROOM LAMP, NO.1

main81241-AA020i200307-200503

81260LAMP ASSY, GLOVE BOX

main81260-33030i200307-200605

81260BBULB(FOR GLOVE BOX)

main90981-11018i200307-200605

12V 1.2W W/O SOCKET

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-02010i200402-200605

main81330-AA010i200605-200808

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90080-81073i200402-200605

12V 3.8W

main90084-98043i200605-200808

12V 5W

81340BBULB (FOR VANITY LAMP)

main90084-98013×4i200605-200812

81341LENS, VANITY LAMP

main81341-06040×2i200307-200605

main81351-AC070×2i200307-200605

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

11 parts on this diagram · 3 diagrams in section

INTERIOR LAMP for Toyota SOLARA

This section contains 21 genuine Toyota parts for the INTERIOR LAMP system of the Toyota SOLARA. Key components include: ROOF HEADLINING & SILENCER PAD, ARMREST & VISOR, LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP), LENS, COURTESY LAMP.
