Toyota SOLARA — INSTRUMENT PANEL & GLOVE COMPARTMENT

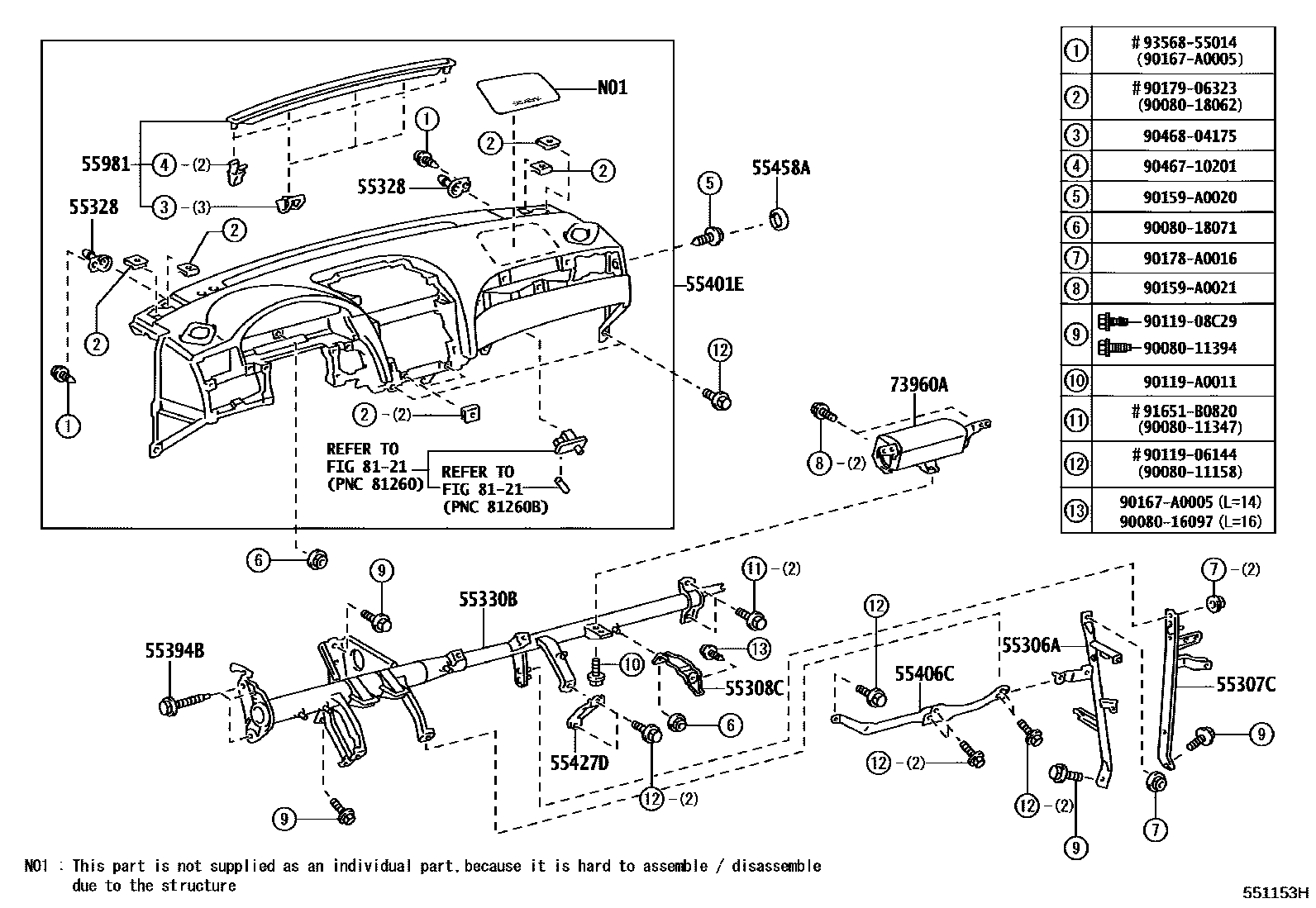

Parts diagram

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-AA020i200307-200503

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-AA020i200605-200808

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-AA030i200605

55328PIN, INSTRUMENT PANEL, NO.1

main55328-50010×2i200605

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-AA020i200307-200503

main55330-AA021i200503-200601

main55330-AA022i200602-200605

55394BBOLT, INSTRUMENT PANEL

main55394-33020×3i200307-200503

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-AA050-B0i200307-200509

DK.GRAY,TRIM1#; DK.GRAY,TRIM10

main55401-AA050-B1i200307-200509

DK.GRAY,TRIM11

main55401-AA050-E0i200307-200509

ORCHID BROWN,TRIM0#

main55401-AA051-B0i200605-200808

DK.GRAY,TRIM1#; DK.GRAY,TRIM10

main55401-AA051-B1i200510-200605

DK.GRAY,TRIM1#; DK.GRAY,TRIM11

main55401-AA051-E0i200510-200605

ORCHID BROWN,TRIM0#

55406CINSERT SUB-ASSY, INSTRUMENT PANEL, LOWER LH

main55406-AA020i200307-200503

55427DRETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1

main55427-06040i200307-200503

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-33090-B1i200307-200605

DK.GRAY,TRIM1#; DK.GRAY,TRIM10,11

main55458-33090-E1i200605

ORCHID BROWN,TRIM0#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-AA050i200510-200605

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-AA010i200605-200808

8121INTERIOR LAMP

→ Go to FIG 81-21

9008011158

main90080-11158

9008011347

main90080-11347

9008011394

main90080-11394

9008016097

main90080-16097

9008018062

main90080-18062

9008018071

main90080-18071

9011906144

main90119-06144

9011908C29

main90119-08C29

90119A0011

main90119-A0011

90159A0020

main90159-A0020

90159A0021

main90159-A0021

90167A0005

main90167-A0005

90178A0016

main90178-A0016

9017906323

main90179-06323

9046710201

main90467-10201

9046804175

main90468-04175

91651B0820

main91651-B0820

9356855014

main93568-55014

31 parts on this diagram · 4 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota SOLARA

This section contains 65 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota SOLARA. Key components include: HOOD LOCK & HINGE, STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2, BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER.
