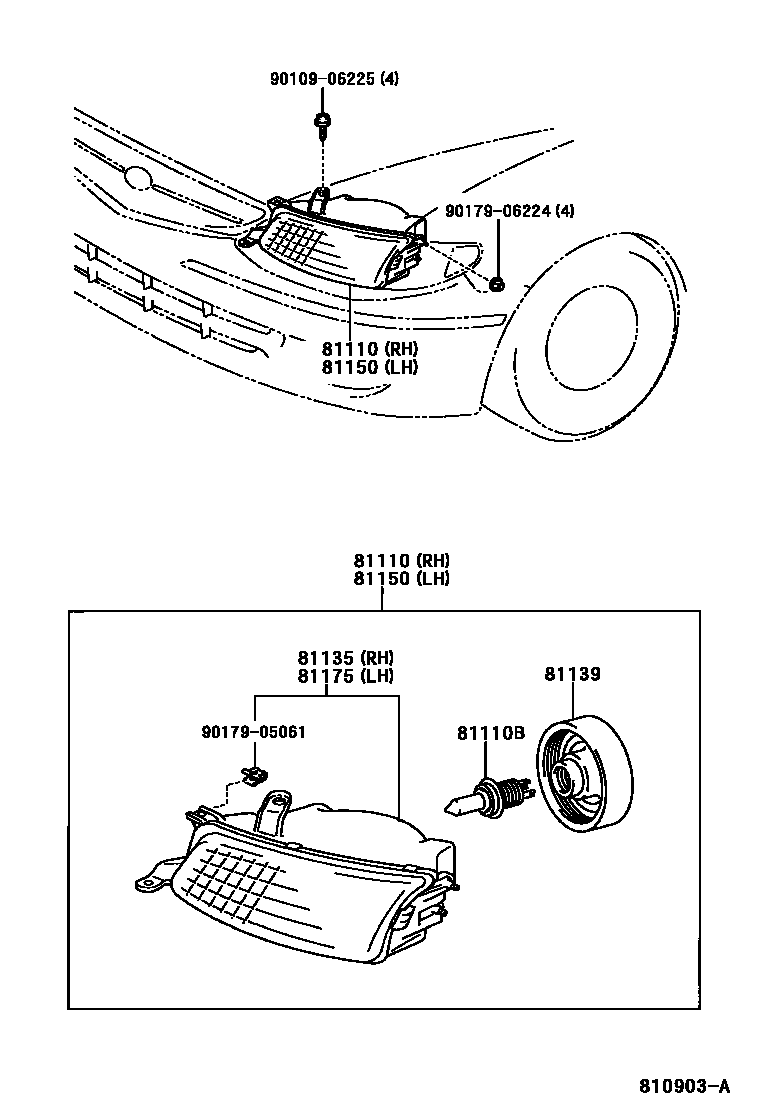

Toyota SOLARA — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-06050i199806-200107

main81110-AA050i200107-200207

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040×2i200207-200212

12V 51W

main90981-13058×2i199806-200107

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-06050i199806-200107

main81130-AA050i200107-200207

81139COVER, HEADLAMP SOCKET

main81139-06050×2i199806-200107

81150HEADLAMP ASSY, LH

main81150-06050i199806-200107

main81150-AA050i200107-200207

81175UNIT ASSY, HEADLAMP, LH

main81170-06050i199806-200107

main81170-AA050i200107-200207

9010906225

main90109-06225

9017905061

main90179-05061

9017906224

main90179-06224

9 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota SOLARA

This section contains 13 genuine Toyota parts for the HEADLAMP system of the Toyota SOLARA. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP SOCKET.
