Toyota SOLARA — FUEL INJECTION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0H020i200601-200605

*195

main22030-0H030i200605-200808

22231BHOSE, THROTTLE BODY

main22231-28030i200307-200309

main22231-28090i200502-200510

*108

22231CHOSE, THROTTLE BODY, NO.1

main22231-28040i200601-200605

*195

main22231-28060i200605-200808

22231DCLAMP OR CLIP(FOR THROTTLE BODY HOSE)

main90467-12056i200307-200309

22232HOSE, THROTTLE BODY, NO.2

main22232-28010i200307-200309

22232ACLAMP OR CLIP(FOR THROTTLE BODY HOSE)

main90467-12056i200307-200309

23250INJECTOR ASSY, FUEL

main23209-0A020×6i200307-200605

(L)

main23209-0H030×4i200605-200808

main23209-20030×6i200307-200605

(J)

main23209-28060×4i200307-200309

main23209-28080×4i200309-200605

(J),*108

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×4i200307-200309

main90301-07037×4i200607-200808

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28020i200601-200605

*195

main23270-28050i200307-200309

main23270-28051i200702-200801

main23270-28052i200801-200808

main23270-62010i200307-200410

main23270-62011i200605-200910

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i200601-200605

*195

23291INSULATOR, INJECTOR VIBRATION

main23291-28020×4i200307-200309

ORANGE

main23291-41010×6i200307-200605

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-0H010i200605-200808

(L)

main23814-20020i200307-200401

main23814-20021i200605

main23814-28030i200307-200312

*108

main23814-28031i200601-200605

*195

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020×4i200605

main90561-08053×2i200605-200808

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0P010i200604-200605

main23841-21050i200801-200812

main23841-28010i200307-200601

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i200307-200605

23849ASUPPORT, FUEL PIPE

main23849-0H010i200605-200808

(L)

main23849-28030i200309-200605

*108

main23849-28050i200307-200309

23901TUBE SUB-ASSY, FUEL

main23901-0H030i200309-200605

main23901-0H070i200307-200309

25719BTANK, VACUUM SURGE

main25719-28010i200502-200510

*108,NO.2

main25719-28040i200510-200605

*108

main25719-62050i200309-200502

*108

8271126380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26380

9008010357

main90080-10357

9008011427

main90080-11427

9010906351

main90109-06351

90116A0023

main90116-A0023

9046912012

main90469-12012

91511C0850

main91511-C0850

91631G0614

main91631-G0614

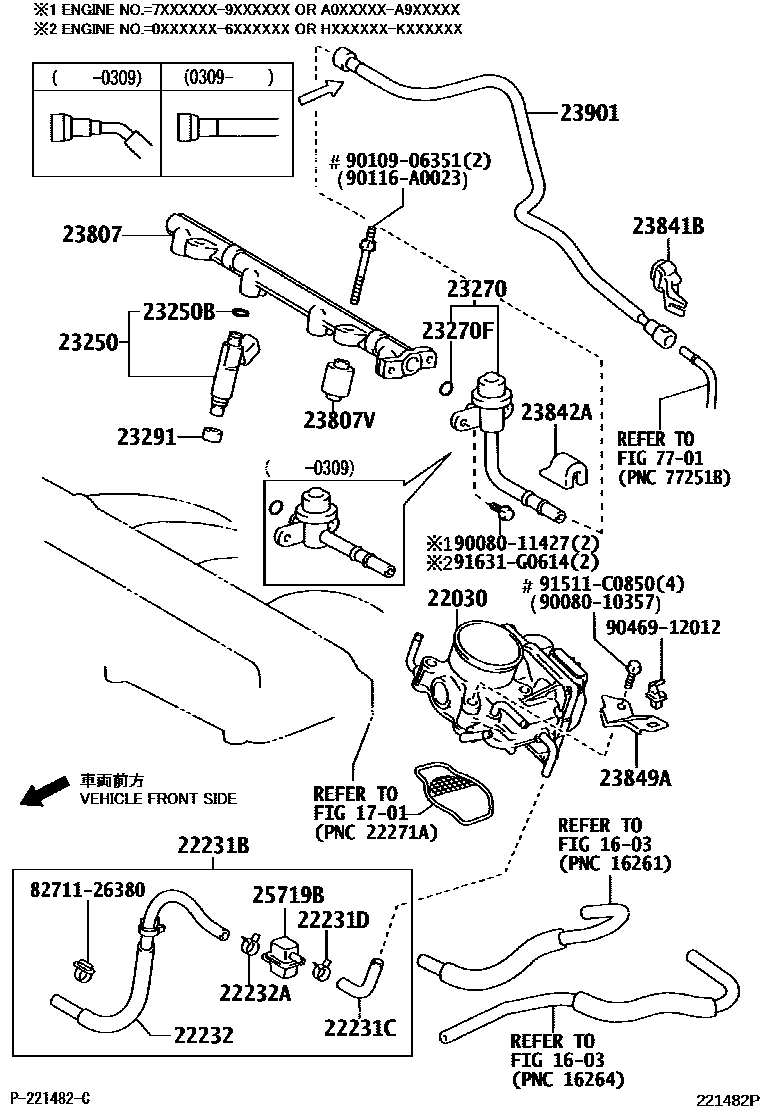

28 parts on this diagram · 5 diagrams in section

FUEL INJECTION SYSTEM for Toyota SOLARA
