Toyota SOLARA — FRONT FENDER APRON & DASH PANEL

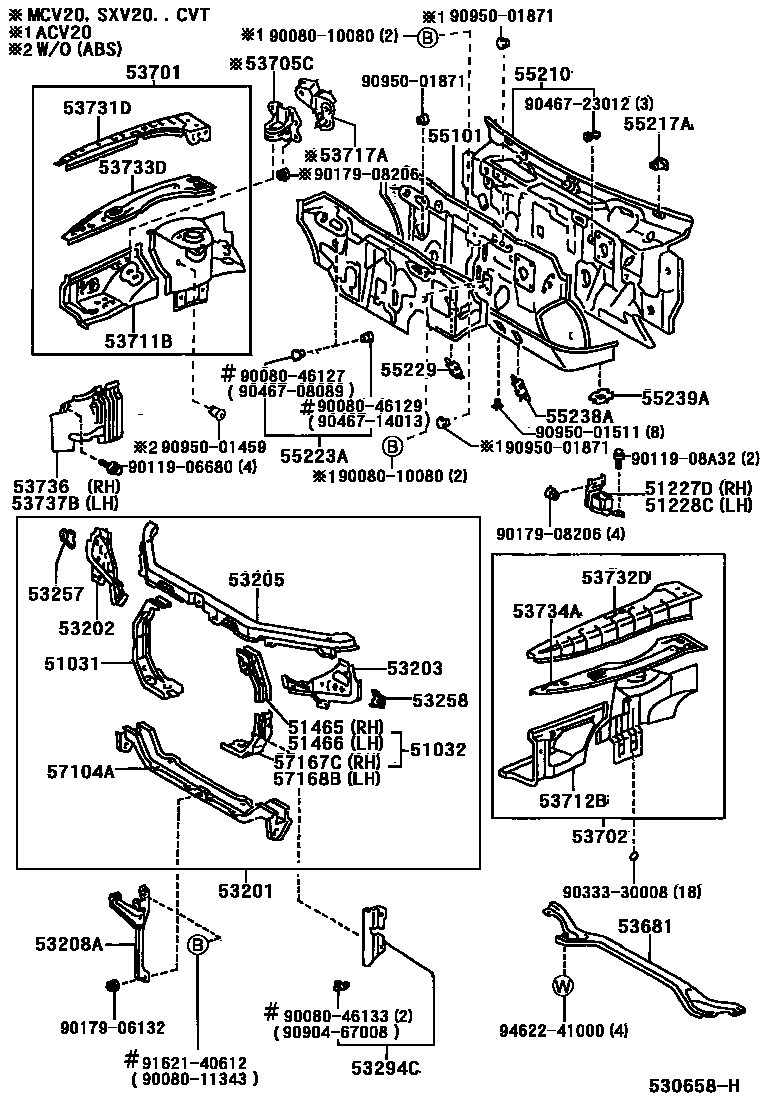

Parts diagram
51031GUSSET SUB-ASSY, FRONT CROSSMEMBER, RH
main51031-06900i200207-200212
51032GUSSET SUB-ASSY, FRONT CROSSMEMBER, LH
main51032-06900i199806-200207
51227DWEIGHT, FRONT SUSPENSION MEMBER DAMPER, RH
main51227-33020i199806-200207
51228CPLATE, FRONT SUSPENSION MEMBER
main51228-33010i199806-200207
51465BRACE, RADIATOR SUPPORT, UPPER RH
main51465-06010i199806-200207
51466BRACE, RADIATOR SUPPORT, UPPER LH
main51466-06010i199806-200207
53201SUPPORT SUB-ASSY, RADIATOR
main53201-06050i199806-199907
main53201-06051i199907-200207
53202SUPPORT SUB-ASSY, RADIATOR, RH
main53211-06020i199806-200207
53203SUPPORT SUB-ASSY, RADIATOR, LH
main53203-06040i199806-200207
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
main53205-06020i199806-199907
main53205-06021i199907-200207
53208ASUPPORT SUB-ASSY, HOOD LOCK
main53208-06010i199806-200207
53257BRACKET, FRONT END PANEL MOUNTING, RH
main53257-06020i199806-200207
53258BRACKET, FRONT END PANEL MOUNTING, LH
main53257-06020i199806-200207
53294CDEFLECTOR, RADIATOR SIDE, LH
main53294-33021i199806-200207
53681BRACE, FRONT SUSPENSION, UPPER CENTER
main53681-33010i199806-200207
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-06060i199806-199809
main53701-06061i199809-200207
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-06050i199806-199809
main53702-06051i199809-200207
53705CBRACKET SUB-ASSY, FRONT SUSPENSION UPPER, NO.1 RH
main53705-33010i200002-200212
53711BAPRON, FRONT FENDER, FRONT RH
main53711-06040i199806-199812
main53711-06041i199812-200207
53712BAPRON, FRONT FENDER, FRONT LH
main53712-06010i200207-200212
53717APLATE, FENDER APRON
main53717-33010i200002-200212
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
main53731-06900i199806-200207
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
main53732-06900i199806-200207
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
main53733-06900i199806-200207
53734ASEAL, FRONT FENDER APRON TO FRAME, NO.2 LH
main53734-06900i199806-200207
53736SEAL, FRONT FENDER APRON, RH
main53736-06040i200107-200212
main53736-08010i199806-200207
53737BSEAL, FRONT FENDER APRON, LH
main53737-06030i200107-200212
main53737-08010i199806-200207
55101PANEL SUB-ASSY, DASH
main55101-06160i199806-199810
main55101-06170i199810-200212
main55101-06180i199810-200207
main55101-06200i200107-200212
main55101-06210i200107-200212
55210INSULATOR ASSY, DASH PANEL
main55210-06040i199806-200107
main55210-06050i200002-200107
main55210-06070i200107-200207
main55210-06080i200107-200212
55217ARETAINER, DASH PANEL SILENCER
main55217-32010×3i199806-200207
55223AINSULATOR, DASH PANEL, OUTER
main55223-06030i199806-200107
main55223-06070i200107-200207
55229PLATE, DASH PANEL INSULATOR, NO.4
main55229-33010i199806-200207
55238APLATE, DASH PANEL INSULATOR, NO.2
main55238-33010×3i199806-200207
55239APLATE, DASH PANEL INSULATOR, NO.3
main55239-33010×2i199806-200207
sub55239-33020
57104AMEMBER SUB-ASSY, FRONT CROSS
main57104-33020i199806-200207
57167CGUSSET, FRONT CROSSMEMBER SIDE, RH
main57167-33010i199806-200207
57168BGUSSET, FRONT CROSSMEMBER SIDE, LH
main57168-33010i199806-200207
9008010080
main90080-10080
9008011343
main90080-11343
9008046127
main90080-46127
9008046129
main90080-46129
9008046133
main90080-46133
9011906680
main90119-06680
9011908A32
main90119-08A32
9017906132
main90179-06132
9017908206
main90179-08206
9033330008
main90333-30008
9046708089
main90467-08089
9046714013
main90467-14013
9046723012
main90467-23012
9090467008
main90904-67008
9095001459
main90950-01459
9095001511
main90950-01511
9095001871
main90950-01871
9162140612
main91621-40612
9462241000
main94622-41000

56 parts on this diagram · 1 diagram in section
