Toyota SOLARA — FRONT DOOR PANEL & GLASS

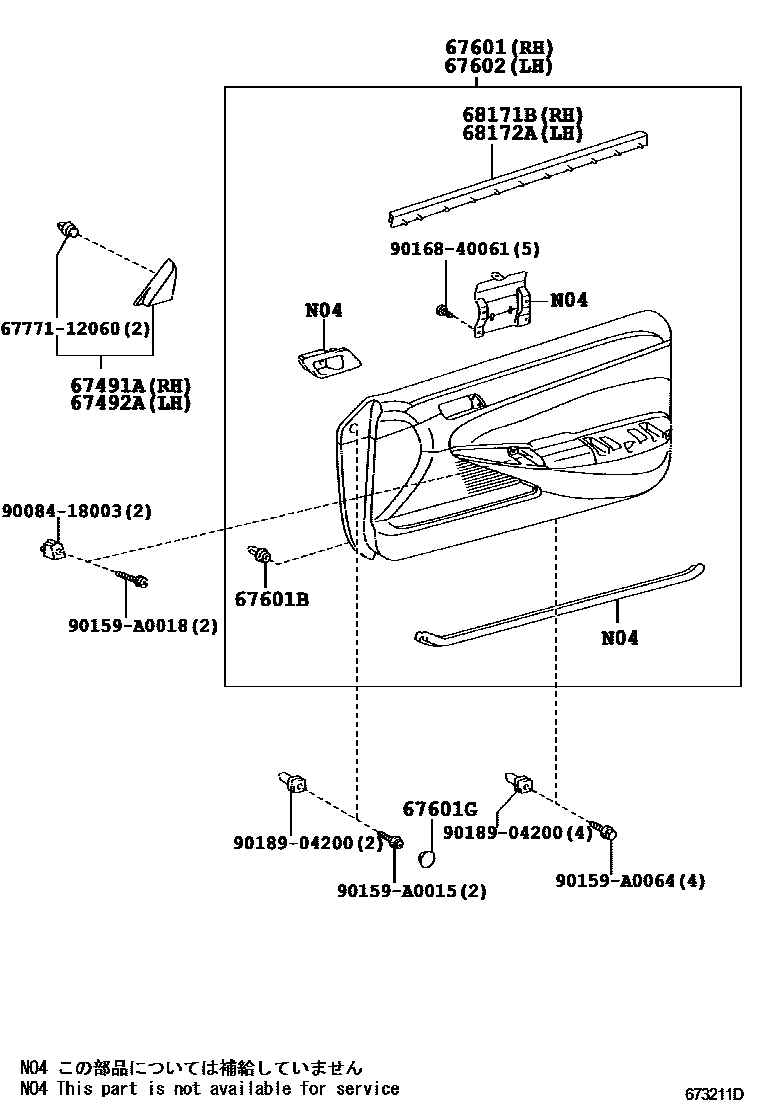

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-AA050i200307-200503
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-AA050i200307-200503
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-06B10-B0i200605-200808
DK. STONE,TRIM1#
main67610-06B10-E0i200605-200808
IVORY,TRIM0#
main67610-AA540-E1i200307-200309
ORCHID BROWN,TRIM0#
main67610-AA541-E1i200309-200408
ORCHID BROWN,TRIM0#
main67610-AA542-E1i200605
IVORY,TRIM0#
main67610-AA550-B0i200307-200309
DK.GRAY,TRIM1#
main67610-AA550-E0i200307-200309
ORCHID BROWN,TRIM0#
main67610-AA551-B0i200309-200503
DK. GRAY,TRIM1#
main67610-AA551-E0i200309-200503
ORCHID BROWN,TRIM0#
main67610-AA552-B0i200503-200605
DK.GRAY,TRIM1#
main67610-AA552-E0i200503-200605
ORCHID BROWN,TRIM0#
main67610-AA561-B0supersedes 67610-AA541-B1i200408-200605
DK.GRAY,TRIM0#,10,11
main67610-AA560-B0supersedes 67610-AA540-B1i200307-200309
SPORT PACKAGE,DK.GRAY,TRIM1#
main67610-AA562-B0supersedes 67610-AA542-B1i200605-200808
SPORT PACKAGE(HID HEAD LAMP),DK.GRAY,TRIM1#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-A0006×16i200605
67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
main90950-01746-B7×2i200307-200503
DK.GRAY,TRIM1#; DK.GRAY,TRIM10,11
main90950-01746-E7×2i200307-200605
ORCHID BROWN,TRIM0#
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-06A00-B0i200605-200808
DK. STONE,TRIM1#
main67620-06A00-E0i200605-200808
IVORY,TRIM0#
main67620-AA410-E1i200307-200309
ORCHID BROWN,TRIM0#
main67620-AA411-E1i200309-200605
ORCHID BROWN,TRIM0#
main67620-AA412-E1i200605-200808
IVORY,TRIM0#
main67620-AA420-B0i200307-200309
DK.GRAY,TRIM1#
main67620-AA420-E0i200307-200309
ORCHID BROWN,TRIM0#
main67620-AA421-B0i200309-200503
DK. GRAY,TRIM1#
main67620-AA421-E0i200309-200503
ORCHID BROWN,TRIM0#
main67620-AA422-B0i200503-200605
DK.GRAY,TRIM1#
main67620-AA422-E0i200503-200605
ORCHID BROWN,TRIM0#
main67620-AA431-B0supersedes 67620-AA411-B1i200408-200605
DK.GRAY,TRIM0#,10,11
main67620-AA430-B0supersedes 67620-AA410-B1i200307-200309
SPORT PACKAGE,DK.GRAY,TRIM1#
main67620-AA432-B0supersedes 67620-AA412-B1i200605-200808
SPORT PACKAGE(HID HEAD LAMP),DK.GRAY,TRIM1#
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
main68171-AA010i200307-200503
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
main68172-AA020i200307-200503
6777112060WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12060
9008418003
main90084-18003
90159A0015
main90159-A0015
90159A0018
main90159-A0018
90159A0064
main90159-A0064
9016840061
main90168-40061
9018904200
main90189-04200

15 parts on this diagram · 2 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota SOLARA

This section contains 43 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota SOLARA. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, FRONT DOOR WINDOW REGULATOR & HINGE, PANEL, FRONT DOOR, OUTER RH, PANEL, FRONT DOOR, OUTER LH.
