Toyota SOLARA — FRONT DOOR LOCK & HANDLE

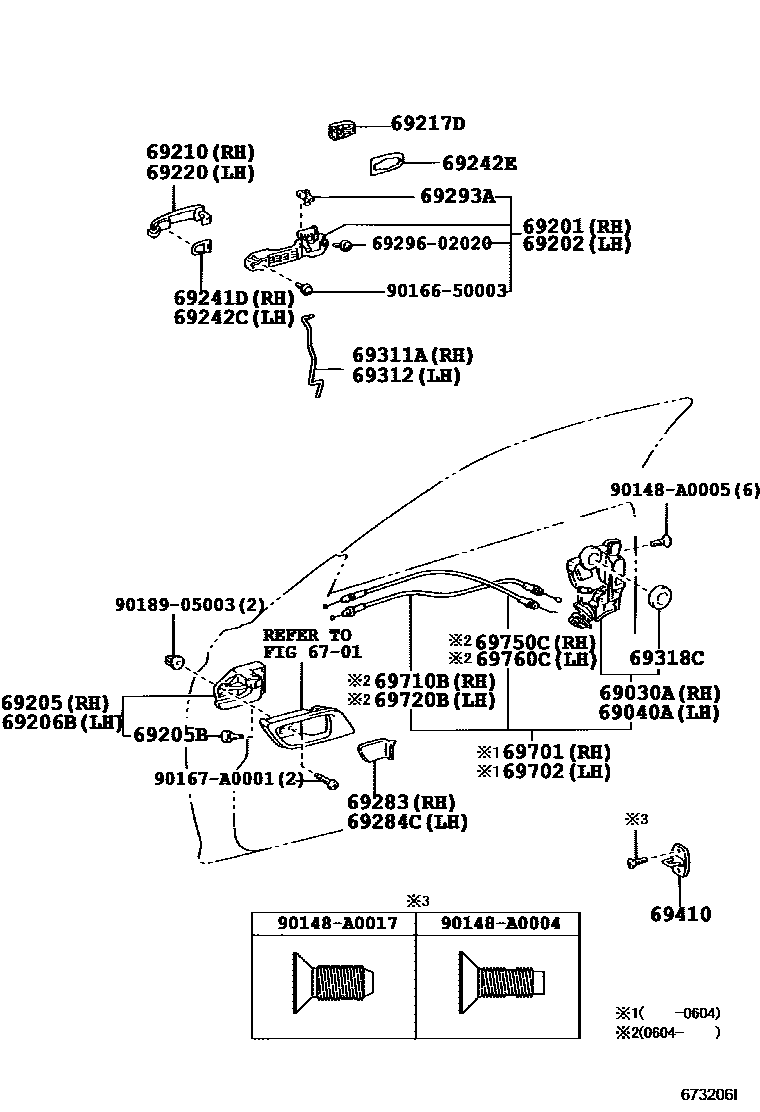

Parts diagram
6701
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-0E010i200307-200605
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-02120i200605-200808
69201HANDLE SUB-ASSY, DOOR OUTSIDE, RH
main69201-AA010i200307-200605
main69201-AA011i200607-200808
69202HANDLE SUB-ASSY, DOOR OUTSIDE, LH
main69202-AA010i200307-200605
main69202-AA011i200607-200808
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-AA040-A0i200605
IVORY,TRIM0#
main69205-AA040-B0i200605-200808
DK. STONE,TRIM10
main69205-AA040-B1i200307-200605
DK.GRAY,TRIM11
main69205-AA050-A0i200605
IVORY,TRIM0#
main69205-AA050-B0i200307-200503
DK. STONE,TRIM1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90080-54005×2i200307-200503
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-AA040-A0i200605
IVORY,TRIM0#
main69206-AA040-B0i200307-200503
DK. STONE,TRIM10
main69206-AA040-B1i200307-200605
DK.GRAY,TRIM11
main69206-AA050-A0i200605-200808
IVORY,TRIM0#
main69206-AA050-B0i200307-200605
DK. STONE,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69211-AA020i200503-200605
main69211-AA020-A1i200307-200605
WHITE PEARL CS.,071
main69211-AA020-A2i200605
WHITE PEARL CS.,070
main69211-AA020-B0i200307-200605
SILVER ME.,1C8
main69211-AA020-B5i200605-200707
SILVER ME.,1D4
main69211-AA020-B6i200605-200808
GRAY ME.,1G3
main69211-AA020-B7i200707-200808
SILVER ME.,1F7
main69211-AA020-C0i200307-200605
BLACK,202
main69211-AA020-D5i200605-200808
SUPER RED 5,3P0
main69211-AA020-E0i200307-200605
BEIGE M. M.,4Q2
main69211-AA020-J3i200307-200605
BLUE ME.,8Q5
main69211-AA020-J4i200307-200605
DK.BLUE M.M.,8R9
main69211-AA020-J9i200612-200810
BLUE ME.,8T7
main69211-AA020-R2i200810
DK.BLUE MC.,8T5
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
main69217-AA010-A0i200307-200602
WHITE PEARL CS.,071,RH
main69217-AA010-A2i200605-200808
WHITE PEARL CS.,070,RH
main69217-AA010-B0i200307-200602
SILVER ME.,1C8,RH
main69217-AA010-B2i200605-200707
SILVER ME.,1D4,RH
main69217-AA010-B3i200605
GRAY ME.,1G3,RH
main69217-AA010-B4i200707
SILVER ME.,1F7,RH
main69217-AA010-C0i200605
BLACK,202,RH
main69217-AA010-D0i200307-200602
SUPER RED 5,3P0,RH
main69217-AA010-E0i200307-200602
BEIGE M. M.,4Q2,RH
main69217-AA010-J0i200307-200602
BLUE ME.,8Q5,RH
main69217-AA010-J1i200307-200602
DK.BLUE M.M.,8R9,RH
main69217-AA010-J4i200612-200810
BLUE ME.,8T7,RH
main69217-AA010-J7i200810
DK.BLUE MC.,8T5,RH
main69217-AA011-A0i200603-200605
WHITE PEARL CS.,071,RH
main69217-AA011-B0i200603-200605
SILVER ME.,1C8,RH
main69217-AA011-C0i200603-200605
BLACK,202,RH
main69217-AA011-D0i200603-200605
SUPER RED 5,3P0,RH
main69217-AA011-E0i200603-200605
BEIGE M. M.,4Q2,RH
main69217-AA011-J0i200603-200605
BLUE ME.,8Q5,RH
main69217-AA011-J1i200603-200605
DK.BLUE M.M.,8R9,RH
main69227-AA010-A1i200307-200605
WHITE PEARL CS.,071,LH
sub69217-33010
main69227-AA010-A2i200605-200808
WHITE PEARL CS.,070,LH
sub69217-33010
main69227-AA010-B0i200307-200605
SILVER ME.,1C8,LH
sub69217-33010
main69227-AA010-B5i200605-200707
SILVER ME.,1D4,LH
sub69217-33010
main69227-AA010-B6i200605
GRAY ME.,1G3,LH
sub69217-33010
main69227-AA010-B7i200707-200808
SILVER ME.,1F7,LH
sub69217-33010
main69227-AA010-C0i200605
BLACK,202,LH
sub69217-33010
main69227-AA010-D5i200605-200808
SUPER RED 5,3P0,LH
sub69217-33010
main69227-AA010-E0i200307-200605
BEIGE M. M.,4Q2,LH
sub69217-33010
main69227-AA010-J3i200307-200605
BLUE ME.,8Q5,LH
sub69217-33010
main69227-AA010-J4i200605-200612
DK.BLUE M.M.,8R9,LH
sub69217-33010
main69227-AA010-J9i200612-200810
BLUE ME.,8T7,LH
sub69217-33010
main69227-AA010-R2i200810
DK.BLUE MC.,8T5,LH
sub69217-33010
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69211-AA020i200503-200605
main69211-AA020-A1i200307-200605
WHITE PEARL CS.,071
main69211-AA020-A2i200605
WHITE PEARL CS.,070
main69211-AA020-B0i200307-200605
SILVER ME.,1C8
main69211-AA020-B5i200605-200707
SILVER ME.,1D4
main69211-AA020-B6i200605
GRAY ME.,1G3
main69211-AA020-B7i200707
SILVER ME.,1F7
main69211-AA020-C0i200605
BLACK,202
main69211-AA020-D5i200605
SUPER RED 5,3P0
main69211-AA020-E0i200307-200605
BEIGE M. M.,4Q2
main69211-AA020-J3i200307-200605
BLUE ME.,8Q5
main69211-AA020-J4i200307-200605
DK.BLUE M.M.,8R9
main69211-AA020-J9i200612-200810
BLUE ME.,8T7
main69211-AA020-R2i200810
DK.BLUE MC.,8T5
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
main69241-AA020i200307-200605
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
main69241-AA020i200307-200605
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69238-AA010×2i200307-200605
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-AA030-A0i200307-200503
IVORY,TRIM0#
main69283-AA030-B0i200605
DK. STONE,TRIM1#
main69283-AA030-B1i200307-200605
DK.GRAY,TRIM11
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-AA020-A0i200307-200503
IVORY,TRIM0#
main69284-AA020-B0i200605-200808
DK. STONE,TRIM1#
main69284-AA020-B1i200307-200605
DK.GRAY,TRIM11
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-33010i200605
RH
main69293-33020i200605
LH
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-AA040i200307-200503
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-AA040i200307-200503
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-AA010×2i200605
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-AA030×2i200307-200503
69701CONTROL SUB-ASSY, DOOR LOCK REMOTE, RH
main69030-AA060i200307-200604
69702CONTROL SUB-ASSY, DOOR LOCK REMOTE, LH
main69040-02120i200604-200605
main69040-AA060i200307-200603
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-AA030i200604
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-AA030i200605-200808
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-AA030i200605-200808
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-AA030i200604
6929602020SCREW, DOOR INSIDE HANDLE
main69296-02020
90148A0004
main90148-A0004
90148A0005
main90148-A0005
90148A0017
main90148-A0017
9016650003
main90166-50003
90167A0001
main90167-A0001
9018905003
main90189-05003

34 parts on this diagram · 1 diagram in section
