Toyota SOLARA — FRONT BUMPER & BUMPER STAY

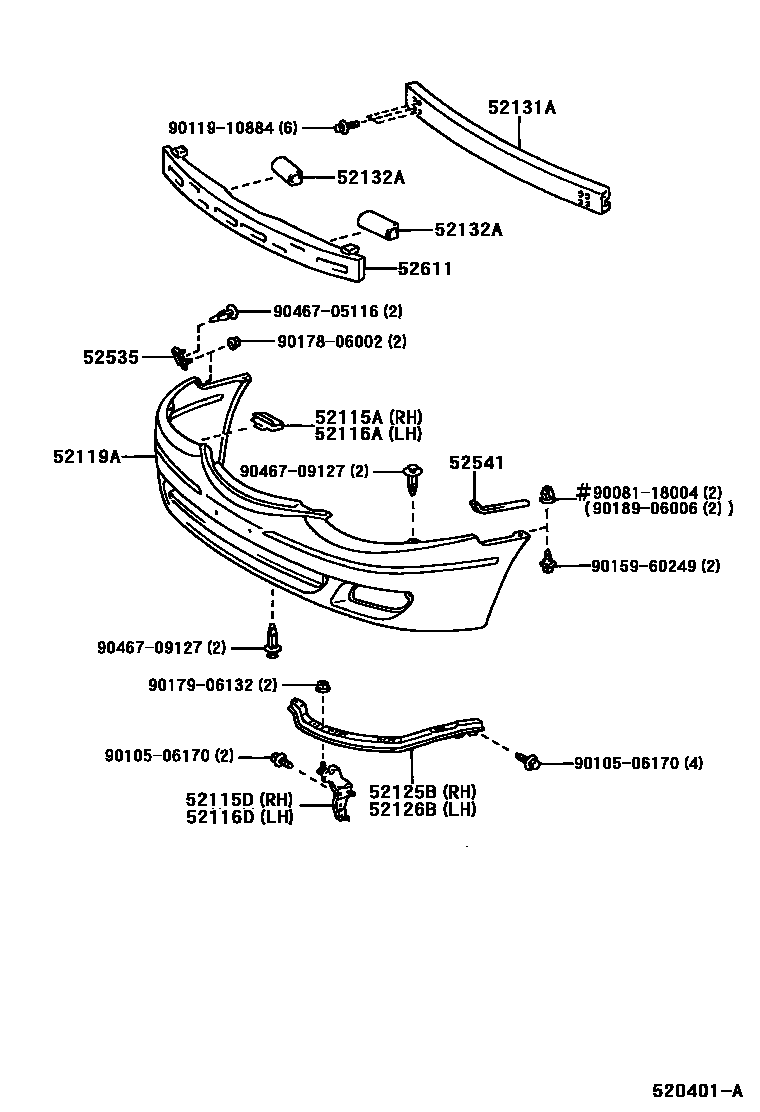

Parts diagram

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-14130×2i199806-200107

52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH

main52115-06010i199806-200107

main52115-AA030i200107-200207

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-14130×2i199806-200107

52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH

main52116-06010i199806-200107

main52116-AA030i200107-200207

52119ACOVER, FRONT BUMPER

main52119-06901i199806-200107

main52119-AA906i200107-200207

52125BEXTENSION, FRONT BUMPER REINFORCEMENT, RH

main52125-06020i199806-200107

main52125-AA030i200107-200207

52126BEXTENSION, FRONT BUMPER REINFORCEMENT, LH

main52126-06020i199806-200107

main52126-AA030i200107-200207

52131AREINFORCEMENT, FRONT BUMPER

main52131-06030i199806-200207

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-AA020×2i199806-200207

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-06020×2i199806-200107

52541PROTECTOR, FRONT BUMPER

main52541-06010×2i199806-200207

52611ABSORBER, FRONT BUMPER ENERGY

main52611-06020i199806-200107

main52611-AA050i200107-200207

9008118004

main90081-18004

9010506170

main90105-06170

9011910884

main90119-10884

9015960249

main90159-60249

9017806002

main90178-06002

9017906132

main90179-06132

9018906006

main90189-06006

9046705116

main90467-05116

9046709127

main90467-09127

21 parts on this diagram · 2 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota SOLARA

This section contains 26 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota SOLARA. Key components include: BAR, FRONT BUMPER, SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, NO.2 RH, SUPPORT, FRONT BUMPER SIDE, LH, SUPPORT, FRONT BUMPER SIDE, NO.2 LH.
