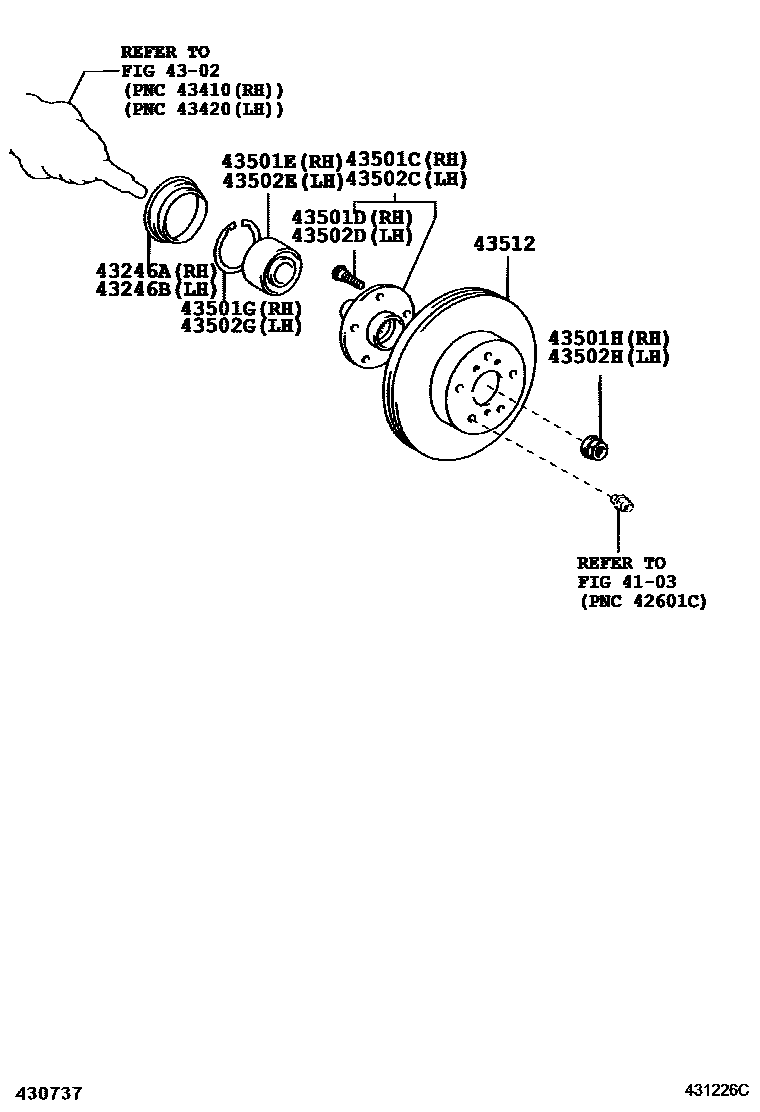

Toyota SOLARA — FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-28020i200307-200808

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-28020i200307-200808

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-28090i200609-200808

(J)

main43502-AA010i200307-200608

main43502-AA011i200609-200808

(L)

main43502-AA020i200307-200608

main43502-AA021i200609-200808

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049i200307-200808

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36193i200307-200808

KOYO,NSK

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-77001i200307-200808

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90080-17238i200307-200808

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-28090i200609-200808

(J)

main43502-AA010i200307-200608

main43502-AA011i200609-200808

(L)

main43502-AA020i200307-200608

main43502-AA021i200609-200808

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049i200307-200808

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36193i200307-200605

NSK

main90080-36193i200307-200605

KOYO

main90080-36193i200307-200605

SPORT PACKAGE,NSK

main90080-36193i200605-200808

KOYO,NSK

main90363-A0001i200307-200605

NSK

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-77001i200307-200808

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90080-17238i200307-200808

43512DISC, FRONT

main43512-08030i200307-200605

main43512-08040i200605-200808

15 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota SOLARA

This section contains 15 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota SOLARA. Key components include: DISC WHEEL & WHEEL CAP, FRONT DRIVE SHAFT, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH.
