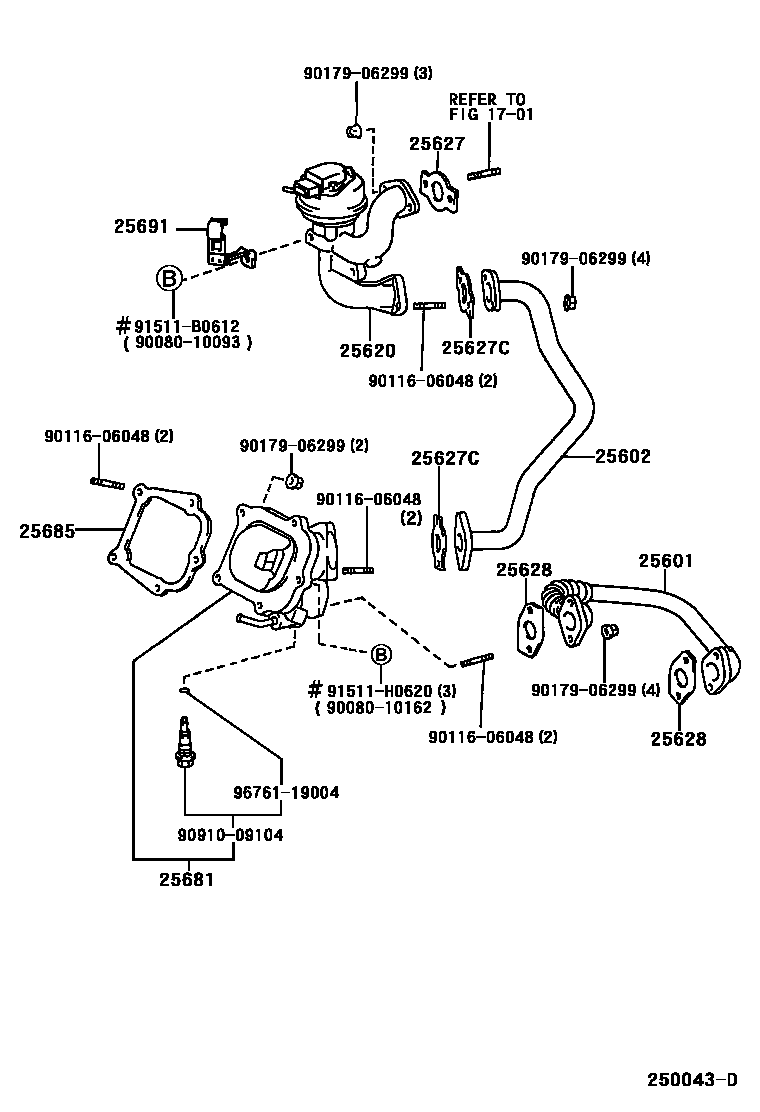

Toyota SOLARA — EXHAUST GAS RECIRCULATION SYSTEM
1701MANIFOLD
25601PIPE SUB-ASSY, EGR, NO.1
(L)
(J)
(J)
25602PIPE SUB-ASSY, EGR, NO.2
25620VALVE ASSY, EGR
25627GASKET, EGR VALVE
(J)
25627CGASKET(FOR EGR PIPE NO.2)
(J)
25628GASKET, EGR INLET
(J)
25681COOLER, EGR, NO.1
25685GASKET, EGR COOLER, NO.1
(J)
25691BRACKET, EGR VACUUM MODULATOR
9008010093
main90080-10093
9008010162
main90080-10162
9011606048
main90116-06048
9017906299
main90179-06299
9091009104
main90910-09104
91511B0612
main91511-B0612
91511H0620
main91511-H0620
9676119004
main96761-19004
18 parts on this diagram · 2 diagrams in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota SOLARA
This section contains 29 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota SOLARA. Key components include: MANIFOLD, PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, UNION(FOR EGR PIPE, NO.1), PIPE SUB-ASSY, EGR, NO.2.
