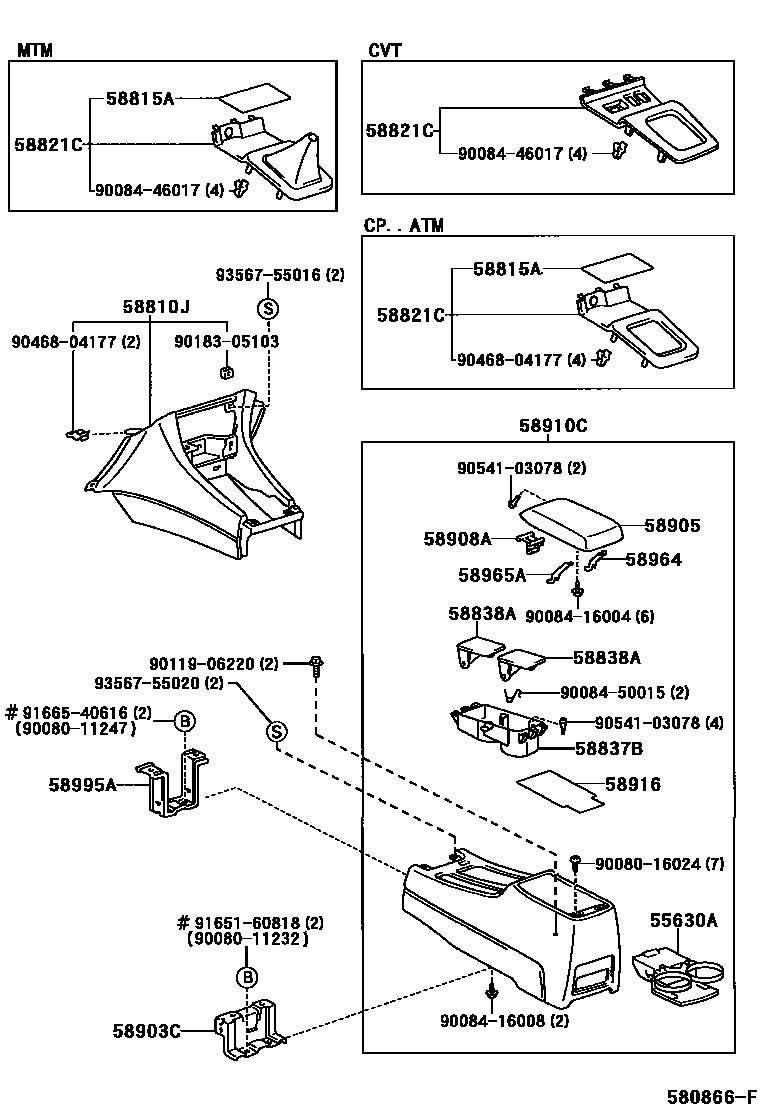

Toyota SOLARA — CONSOLE BOX & BRACKET

0001 1 0002 1

55630AHOLDER, REAR CONSOLE BOX, CUP

main55630-AA010-A0iMCV20,SXV20..CP199806-200107

IVORY,TRIM0#

main55630-AA010-B1iMCV20,SXV20..CP199806-200107

SHADOW GRAY,TRIM1#

58810JBOX ASSY, CONSOLE

main58810-AA010-A0iACV20,MCV20,SXV20199806-200212

IVORY,TRIM0#

main58810-AA010-B1iACV20,MCV20,SXV20199806-200212

SHADOW GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-AA010-C0iMCV20,SXV20..CP199806-200107

BLACK,TRIM0#,1#

58821CPANEL, CONSOLE, UPPER

main58804-06030-C0iMCV20,SXV20..CVT200002-200107

BLACK,TRIM0#,1#

main58804-06040-C0iMCV20,SXV20..MTM199806-200107

BLACK,TRIM0#,1#

main58804-AA030iMCV20,SXV20..CP..ATM199806-200107

main58804-AA080-E0iACV20,MCV20..ATM200107-200212

WOOD GRAIN(BROWN),YELLOWISH BROWN,TRIM0#,1#

main58804-AA090-E0iMCV20..ATM200107-200212

WOOD GRAIN(BROWN) & W(TRACTION CONTROL),YELLOWISH BROWN,TRIM0#,1#

main58804-AA100-E0iACV20,MCV20..MTM200107-200212

WOOD GRAIN(BROWN),YELLOWISH BROWN,TRIM0#,1#

main58804-AA120-C1iACV20,MCV20..MTM200111-200212

WOOD GRAIN(BLACK),BLACK,TRIM1#

main58804-AA130-C0iACV20,MCV20..ATM..USA200107-200111

WOOD GRAIN(BLACK),BLACK,TRIM1#

main58804-AA140-C0iMCV20..ATM..USA200107-200111

WOOD GRAIN(BLACK) & W(TRACTION CONTROL),BLACK,TRIM1#

58837BBOX, CONSOLE CUP HOLDER

main58837-AA010-A0iMCV20,SXV20199806-200107

IVORY,TRIM0#

main58837-AA010-B1iMCV20,SXV20199806-200107

SHADOW GRAY,TRIM1#

main58837-AA011-A0iACV20,MCV20200107-200212

IVORY,TRIM0#

main58837-AA011-B1iACV20,MCV20200107-200212

SHADOW GRAY,TRIM1#

58838ADOOR, CONSOLE CUP HOLDER BOX

main58838-AA010-A0×2iACV20,MCV20,SXV20199806-200212

IVORY,TRIM0#

main58838-AA010-B1×2iACV20,MCV20,SXV20199806-200212

SHADOW GRAY,TRIM1#

58903CBRACKET, CONSOLE BOX MOUNTING, NO.2

main58903-AA010iACV20,MCV20,SXV20199806-200207

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-AA011-A0iACV20,MCV20,SXV20199806-200212

IVORY,TRIM0#

main58905-AA011-B1iACV20,MCV20,SXV20199806-200212

SHADOW GRAY,TRIM1#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-AA010iACV20,MCV20,SXV20199806-200207

58910CBOX ASSY, CONSOLE, REAR

main58910-06051-A0iMCV20..ATM199806-200107

W(TRACTION CONTROL),IVORY,TRIM0#

main58910-06051-B0iMCV20..ATM199806-200107

W(TRACTION CONTROL),SHADOW GRAY,TRIM1#

main58910-AA011-A0iMCV20,SXV20199806-200107

IVORY,TRIM0#

main58910-AA011-B1iMCV20,SXV20199806-200107

SHADOW GRAY,TRIM1#

main58910-AA050-A0iACV20,MCV20..CVT200107-200212

IVORY,TRIM0#

main58910-AA050-B0iACV20,MCV20..CVT200107-200212

SHADOW GRAY,TRIM1#

58916MAT, BOX BOTTOM

main58916-AA010iACV20,MCV20,SXV20199806-200207

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-AA010iACV20,MCV20,SXV20199806-200207

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-AA010iACV20,MCV20,SXV20199806-200207

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-AA010iACV20..MTM200207-200212

9008011232

main90080-11232

9008011247

main90080-11247

9008016024

main90080-16024

9008416004

main90084-16004

9008416008

main90084-16008

9008446017

main90084-46017

9008450015

main90084-50015

9011906220

main90119-06220

9018305103

main90183-05103

9046804177

main90468-04177

9054103078

main90541-03078

9165160818

main91651-60818

9166540616

main91665-40616

9356755016

main93567-55016

9356755020

main93567-55020

29 parts on this diagram · 2 diagrams in section
